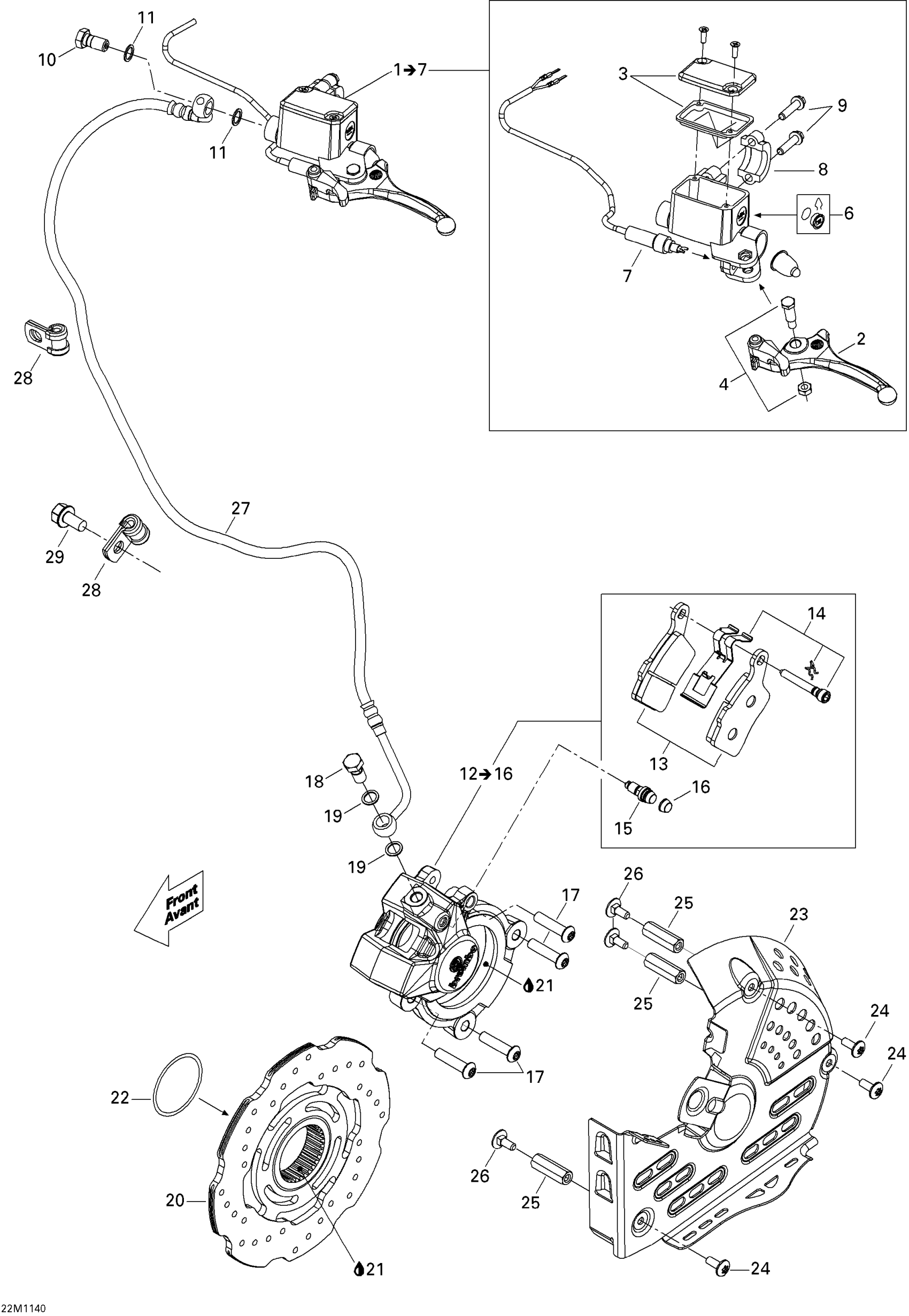

Ski-Doo MX Z X 600RS, 2011 06- Hydraulic Brakes Diagram

#

Description
Price

1

CYLINDER MASTER ASS'Y - Call your local BRP dealership | Includes 6 to 6d

507032511

Unavailable

2

LEVER - Call your local BRP dealership

507032428

Unavailable

3

Cap

415029900

$41.49

4

Pin Ass'y

415030000

$19.99

6

WINDOW - Call your local BRP dealership

414990600

Unavailable

7

Microswitch

507032526

$39.99

8

Clamp And Screw Kit

507032477

$23.99

9

Hex. Flange Screw M6 X 25

250000447

$2.11

10

Banjo Bolt

414920500

$8.68

11

Washer

414920600

$1.90

12

Brake Caliper Ass'y | Includes 17 to 17c This part replaces 507032603.

507032501

$476.99

13

Brake Pads Kit

507032489

$79.49

14

Brake Spring Kit

507032722

$37.99

15

Bleeder

507032475

$19.99

16

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

Disk

507032513

$243.99

21

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

22

O-Ring

293300134

$2.32

23

Aluminum Disk Protector

507032446

$28.99

24

Torx Screw M6 X 16

250000365

$2.11

25

Threaded Tube

507032497

$15.72

26

Carriage Bolt M6 X 1.0 X 16

207761644

$2.11

27

HOSE - Call your local BRP dealership

507032517

Unavailable

28

Clamp

293650256

$5.49

29

Hex. Flange Screw M6 X 12

210261250

$1.90
