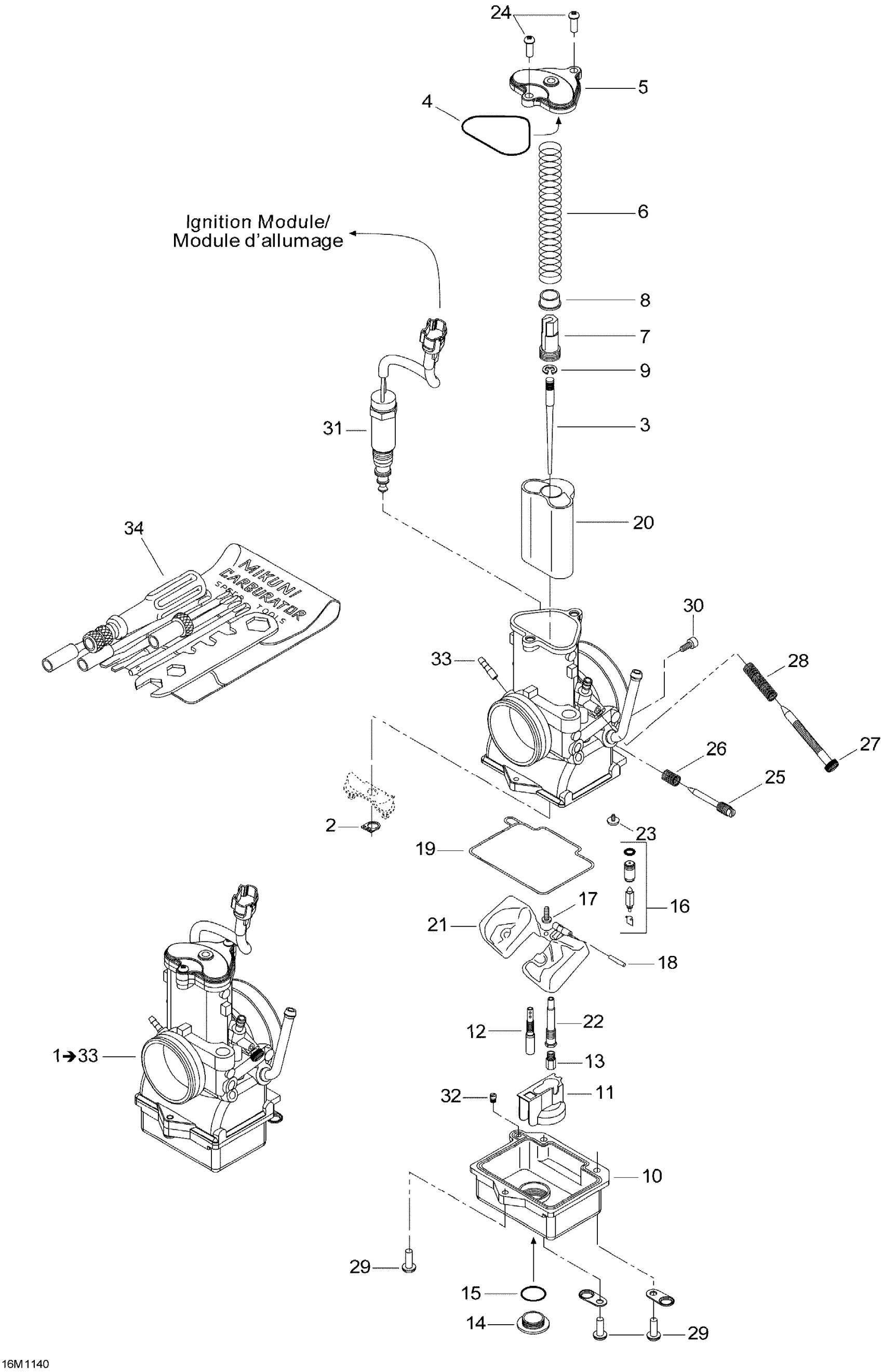

Ski-Doo MX Z X 600RS, 2011 02- Carburetor Diagram
#
Description
Price
1
CARBURATOR TMX38-71 - Call your local BRP dealership
403138811
Unavailable
3
NEEDLE - Call your local BRP dealership
404162117
Unavailable
4
O-RING - Call your local BRP dealership
404162111
Unavailable
5
Top Cap
404162110
Unavailable
6
SPRING - Call your local BRP dealership
404162109
Unavailable
7
HOLDER GUIDE - Call your local BRP dealership
404162108
Unavailable
8
RING - Call your local BRP dealership
404161863
Unavailable
10
FLOAT BODY - Call your local BRP dealership
404162121
Unavailable
11
HOLDER - Call your local BRP dealership
404161855
Unavailable
17
SCREW - Call your local BRP dealership
404138600
Unavailable
18
PIN - Call your local BRP dealership
404161860
Unavailable
21
FLOAT - Call your local BRP dealership
404161859
Unavailable
22
JET NEEDLE - Call your local BRP dealership
486400012
Unavailable
25
ADJUSTER - Call your local BRP dealership
404161866
Unavailable
26
SPRING - Call your local BRP dealership
404132400
Unavailable
28
SPRING - Call your local BRP dealership
404161849
Unavailable
30
SCREW - Call your local BRP dealership
404162100
Unavailable
31
SELENOID - Call your local BRP dealership
404161998
Unavailable
32
POWER JET 160 - Call your local BRP dealership
404162098
Unavailable
33
NIPPLE - Call your local BRP dealership
404162123
Unavailable
34
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
