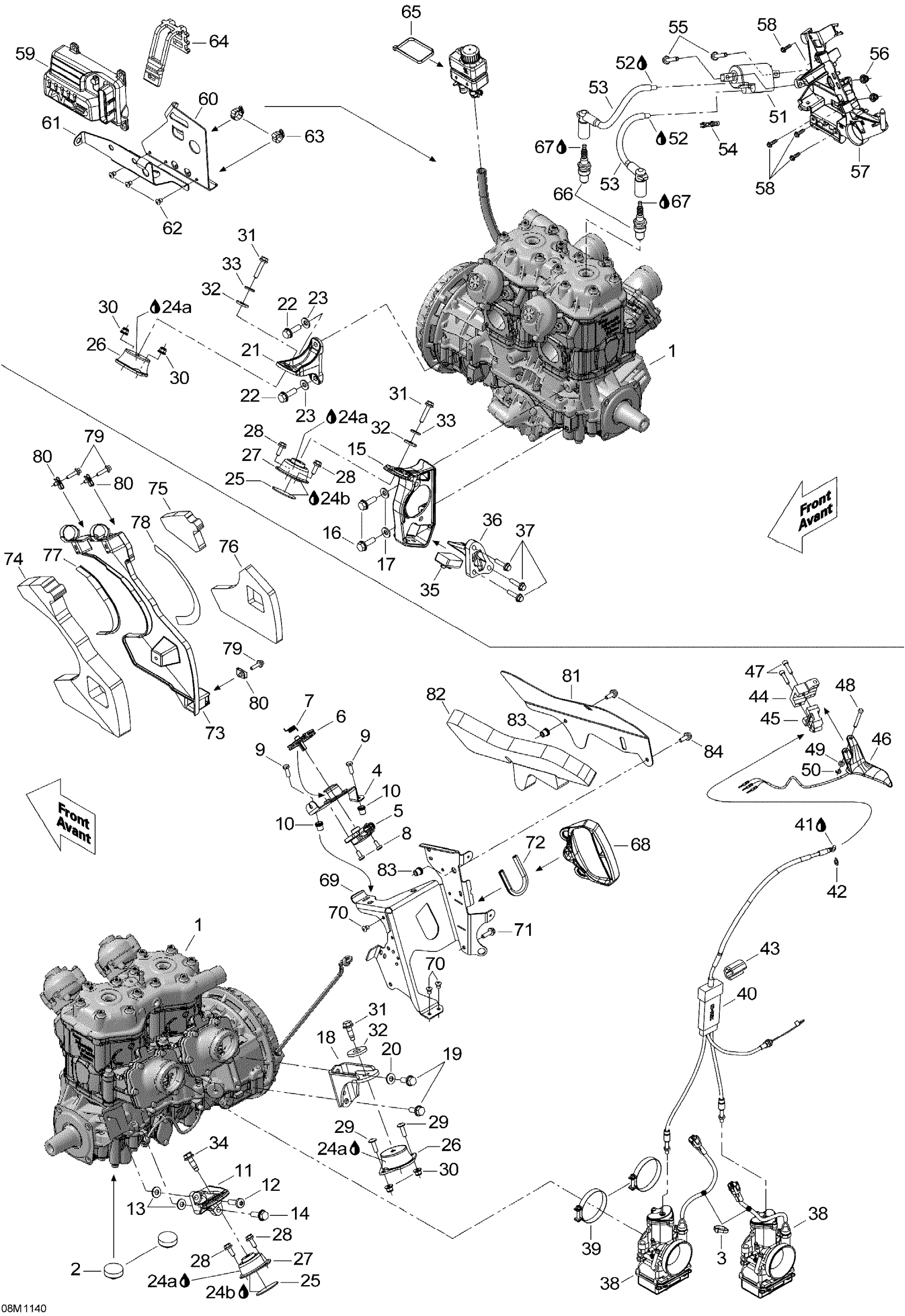

Ski-Doo MX Z X 600RS, 2011 01- Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stopper

512059738

$23.99

3

Tie-Rap 180 mm

414115200

$0.11

4

TPS SUPPORT - Call your local BRP dealership

512060336

Unavailable

5

Sensor Ass'y

404162079

$359.99

6

CAP CAM - Call your local BRP dealership

512060335

Unavailable

7

CAM SPRING - Call your local BRP dealership

512060638

Unavailable

8

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

9

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

10

Insert

293450275

$12.99

11

Rear Support, PTO

512060478

$31.99

12

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

13

Conical Spring Washer M8

234281474

$1.48

14

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

15

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

16

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

17

Conical Spring Washer M8

234281474

$1.48

18

REAR ENGINE SUPPORT, MAG - Call your local BRP dealership

512060568

Unavailable

19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

20

Conical Spring Washer M8

234281474

$1.48

21

FRONT SUPPORT, MAG - Call your local BRP dealership

512060108

Unavailable

22

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

23

Conical Spring Washer M8

234281474

$1.48

24a

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

24b

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

25

RUBBER WASHER - Call your local BRP dealership

512060410

Unavailable

26

Rubber Mount

512060360

$60.99

27

Rubber Mount

512060385

$60.99

28

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

29

Hex. Socket Screw M6 X 20

250000770

$2.09

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

32

Yellow, Washer

503183200

$3.19

33

Conical Spring Washer M8

234281474

$1.48

34

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

35

STOPPER - Call your local BRP dealership

512060488

Unavailable

36

Stopper Support

512060576

$29.49

37

Hex. Flange Screw M6 X 25

207562544

$1.69

38

CARBURATOR TMX38-71 - Call your local BRP dealership

403138811

Unavailable

39

Gemi Clamp

512059835

$11.60

40

THROTTLE CABLE - Call your local BRP dealership

512060550

Unavailable

41

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

42

Circlip

414274500

$0.90

43

Protector

512060313

$10.33

44

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

45

Lower Housing

512059537

$74.99

46

HANDLE ASS'Y - Call your local BRP dealership

512060431

Unavailable

47

Socket Screw M5 X 25

205052544

$1.68

48

Lever Pin

414438700

$11.64

49

Flat Washer M5, Stainless

234051600

$0.77

50

Circlip

293370050

$0.46

51

Ignition Coil

512059968

$51.99

52

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

53

Cable

512060291

$51.99

54

Plastic Clip, Spark Plug Wire

410914600

$5.61

55

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

57

COILS SUPPORT - Call your local BRP dealership

512060925

Unavailable

58

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

59

CALIBRATED MODULE - Call your local BRP dealership

512060804

Unavailable

60

ECM SUPPORT - Call your local BRP dealership

512060337

$33.99

61

TANK SUPPORT - Call your local BRP dealership

512060379

Unavailable

62

Avex Rivet

390909200

$0.30

63

Tridon Gear Clamp

293650172

$3.09

64

LATCH - Call your local BRP dealership

570069700

Unavailable

65

Tie-Rap 180 mm

414115200

$0.11

65

Tie Wrap 368 mm

293750008

$1.04

66

Spark Plug NGK BR9ECS-5

512059552

$10.59

67

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

68

Starter Grip

512060136

$14.83

69

Grip Support - Call Your Local BRP Dealership

512060491

Unavailable

70

Avex Rivet

390909200

$0.30

71

Hexagonal Head Screw

210262050

$2.11

72

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

73

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

74

Interior Noise Foam

512060343

$20.99

75

Upper Exterior Noise Foam

512060344

$10.33

76

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

77

Heat Shield

512060574

$7.79

78

Heat Shield

512060575

$8.59

79

Hex.Flange Screw M5 X 20

207652044

$1.90

80

Panel Nut M5 X 0.8

250000958

$4.23

81

REAR NOISE SHIELD - Call your local BRP dealership

512060492

Unavailable

82

Rear Noise Foam

512060381

Unavailable

83

Insert

293450275

$12.99

84

Hex. Flange Screw M6 X 16

207661644

$0.74
