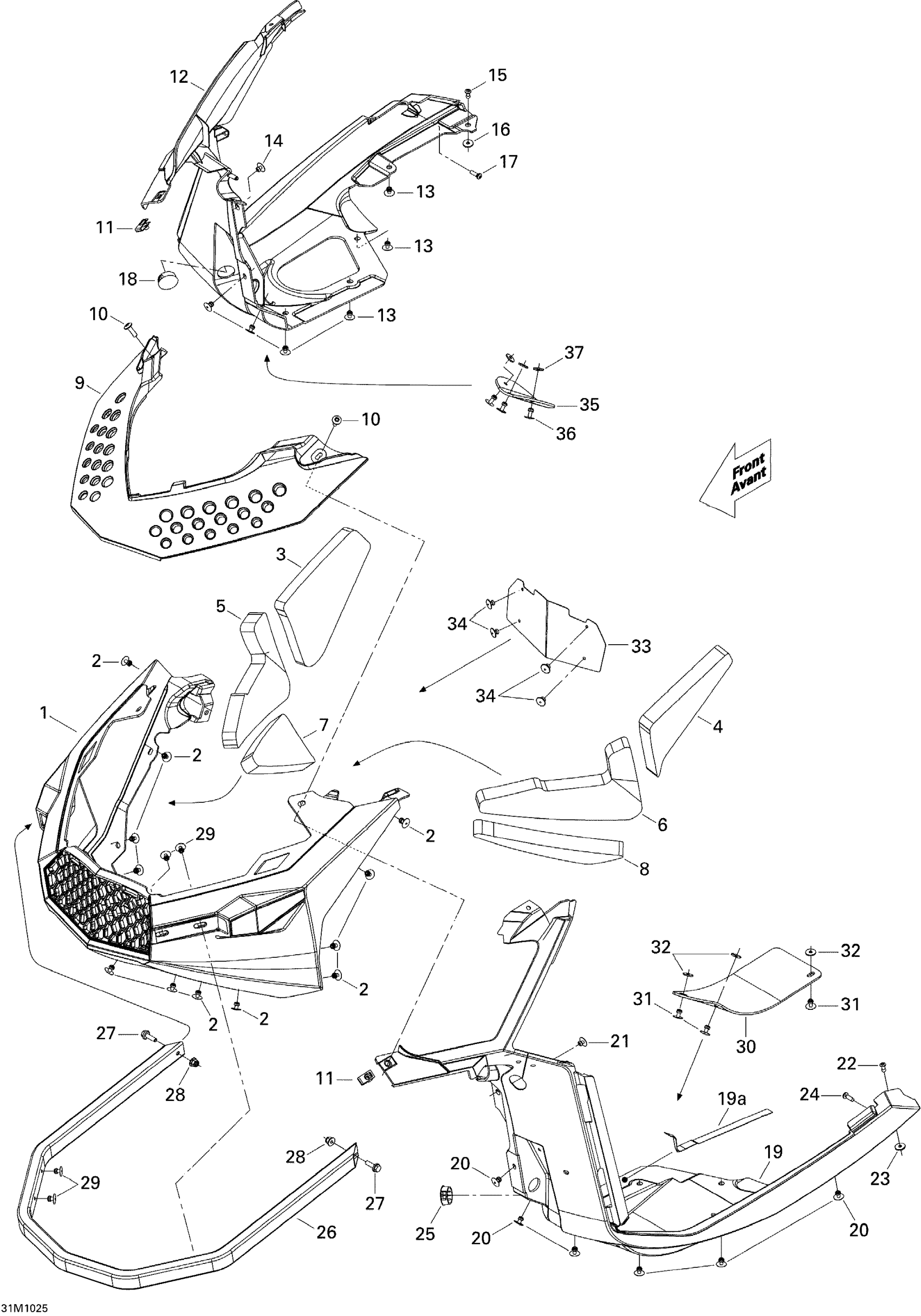

Ski-Doo MX Z X 600RS, 2010 09- Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502006971

$114.99

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3

RH Foam Upper

502007210

$15.99

4

LH Foam Upper

502007211

$17.49

5

RH Middle Foam

502007212

$21.99

6

LH Middle Foam

502007213

$21.99

7

RH Lower Foam

502007214

$15.99

8

LH Lower Foam

502007215

$15.99

9

Deep Black Bottom Pan Cap

502007068

$70.99

10

Torx Screw M6 X 20

250000722

$1.68

11

Panel Nut M6 X 1.0

250100198

$2.11

12

Black, RH Bottom Pan

502006831

$77.99

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

14

Pop Rivet 3/16"

293150103

$0.55

15

Pop Rivet 3/16"

390402300

$0.75

16

Washer

517124300

$0.19

17

Torx Screw K50 X 16

250000720

$1.69

18

Black, Nylon Cap

414916600

$4.69

19

Deep Black LH Bottom Pan

502006832

$56.99

19a

Gasket, Neoprene 2000Mm Long

219704476

$15.36

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

21

Pop Rivet 3/16"

293150103

$0.55

22

Pop Rivet 3/16"

390402300

$0.75

23

Washer

517124300

$0.19

24

Torx Screw K50 X 16

250000720

$1.69

25

Black, Nylon Cap

414916600

$4.69

26

Black Front Bumper

502007116

$78.49

27

Hex. Flange Screw M6 X 20

207662044

$2.00

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

GUARD PLATE - Call your local BRP dealership

502006888

Unavailable

31

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

32

Washer

517124300

$0.19

33

BOTTOM PAN PLATE - Call your local BRP dealership

502007056

Unavailable

34

Pop Rivet 3/16”

293150108

$1.19

35

Snow Deflector

502006935

$54.99

36

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

37

Washer

517124300

$0.19
