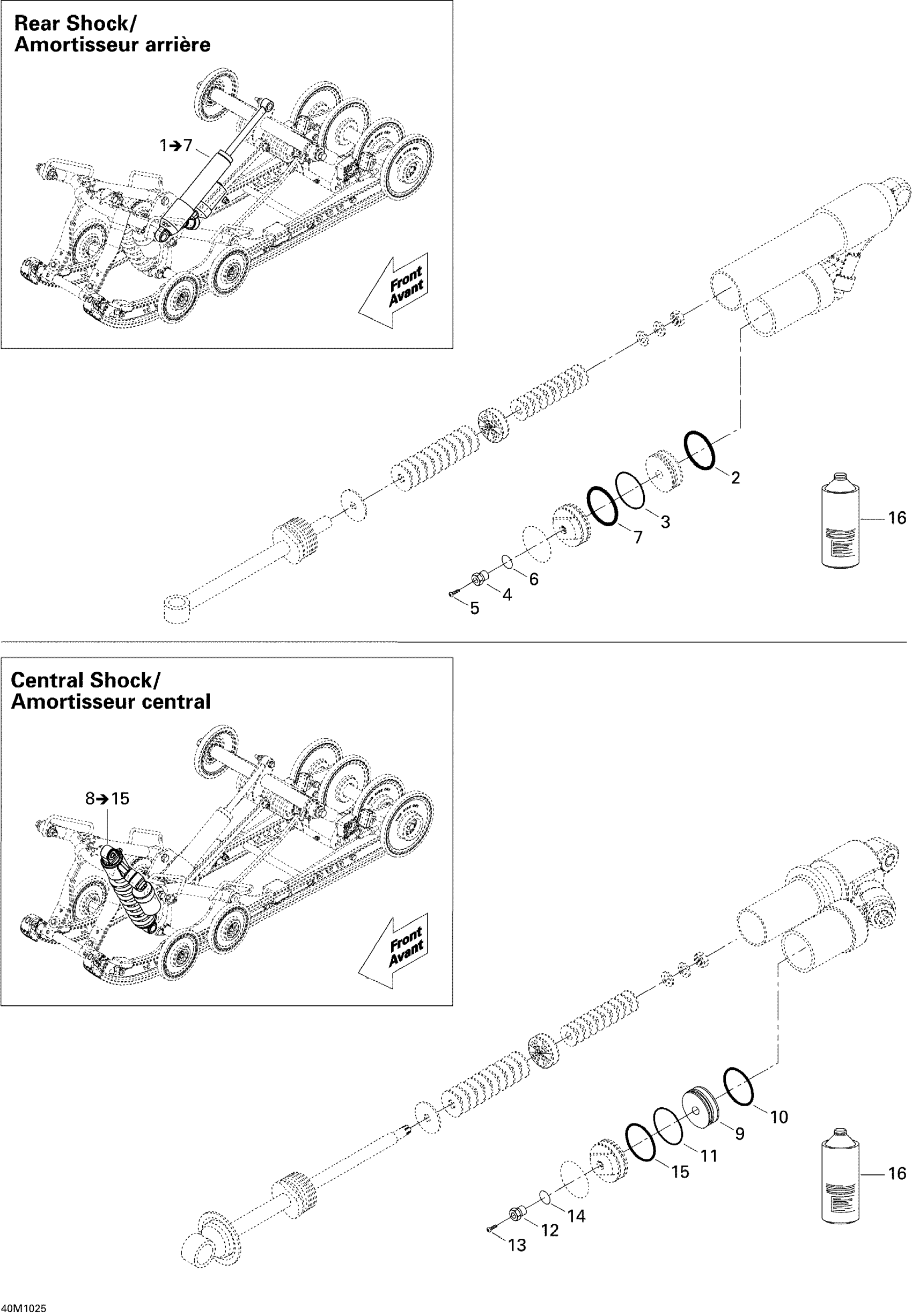

Ski-Doo MX Z X 600RS, 2010 Take Apart Shock, Rear Diagram

#

Description
Price

1

Rear Shock

503192325

Unavailable

2

O-Ring

415093807

$33.55

3

STOP RING - Call your local BRP dealership

415093805

Unavailable

4

Air Valve

505070398

$17.13

5

Screw | Not Shown

505070399

$3.88

6

O-Ring

505070400

$4.25

7

O-Ring

415093804

$4.25

8

CENTER SHOCK - Call your local BRP dealership

503192327

Unavailable

9

Free Piston

505071016

Unavailable

10

O-Ring

415093807

$33.55

11

STOP RING - Call your local BRP dealership

415093805

Unavailable

12

Air Valve

505070398

$17.13

13

Screw | Not Shown

505070399

$3.88

14

O-Ring

505070400

$4.25

15

O-Ring

415093804

$4.25

16

Shock Oil, 1 Liter

293600035

$70.87
