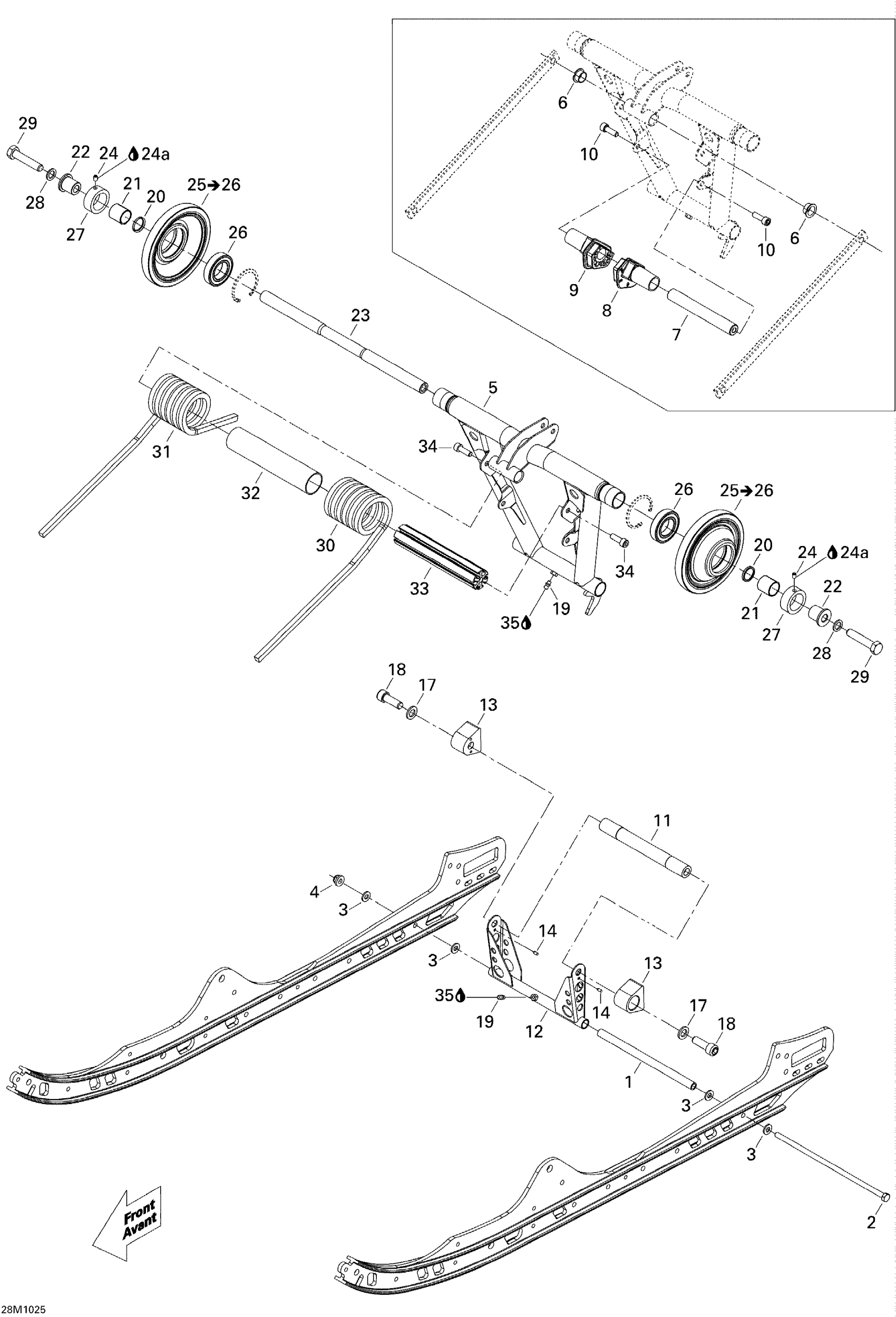

Ski-Doo MX Z X 600RS, 2010 Rear Arm Diagram

#

Description
Price

1

Pivot Arm Axle

503189156

$20.12

2

Bolt M8 X 248mm

503192440

$29.07

3

Washer

503189157

$3.10

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

REAR ARM - Call your local BRP dealership

503192087

Unavailable

6

Swivel Bushing

503191555

$5.54

7

Spring Cam Axe

503191178

$26.84

8

LH Spring Cam

503191191

$13.46

9

RH Spring Cam

503191190

$13.37

10

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

11

Lower Shaft

503192095

$44.75

12

Pivot Arm

503191302

$114.90

13

BLOCK - Call your local BRP dealership

503192320

Unavailable

14

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

17

Washer | 7415/7416. 7417/7418.

503189148

$2.64

18

Socket Head Screw Scotch Grip Din.912

205523587

$2.00

19

Grease Fitting

408200700

$3.21

20

Washer

503191774

$2.18

21

Bushing

503191773

$13.19

22

Bushing

503191775

$14.81

23

Upper Shaft

503191776

$44.75

24

Socket Set Screw M6 X 8

206260844

$1.43

24a

Loctite 243, 10 ml

293800060

$21.49

25

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$35.04

26

Ball Bearing

503191778

$11.12

27

Retaining Ring

503191782

$13.54

28

Washer

503189276

$3.10

29

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

30

LH Spring, Square

503191615

$58.18

31

RH Spring, Square

503191614

$58.18

32

Plastic Bushing

503191345

$6.69

33

Spring Axle

503191344

$33.55

34

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

35

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
