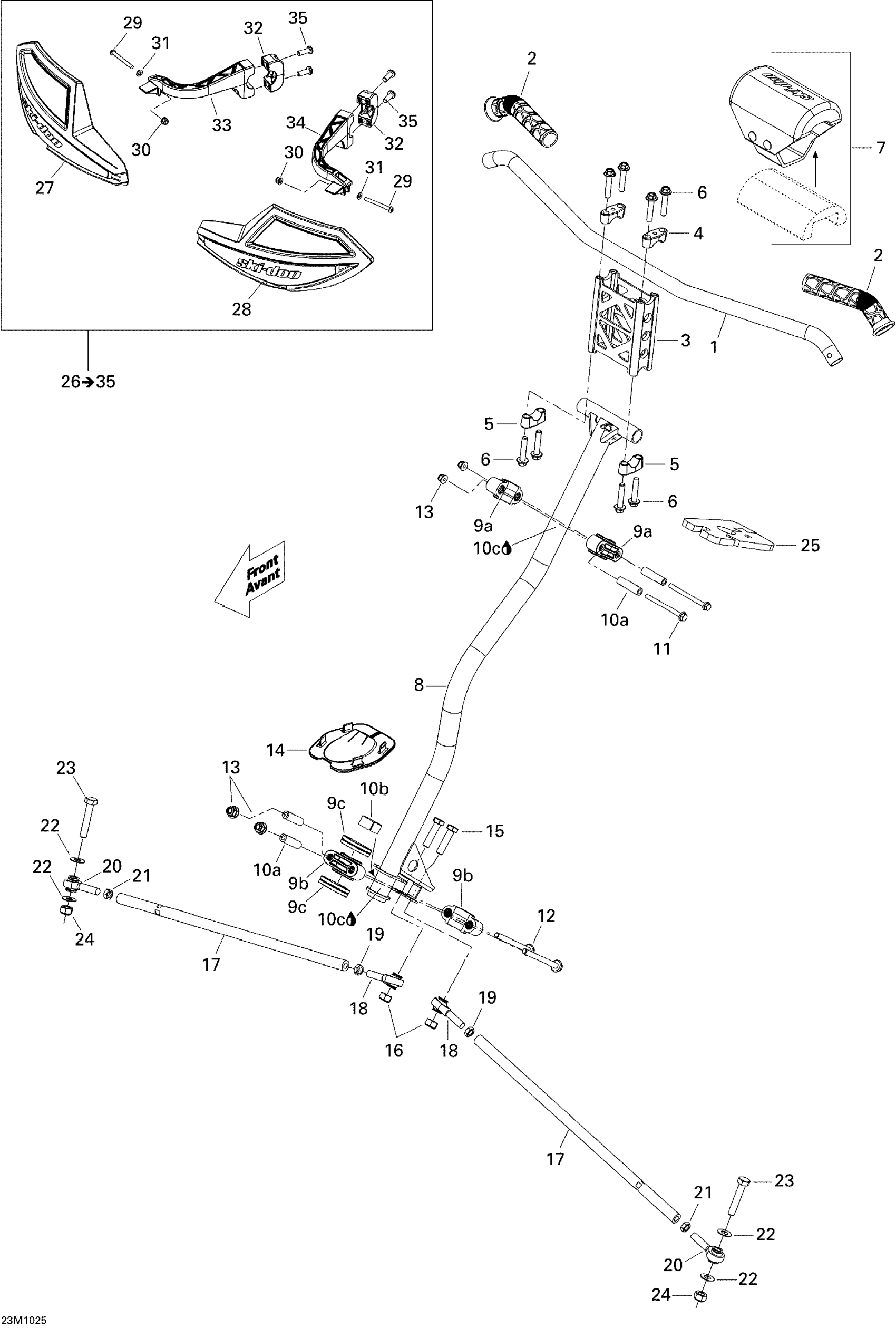

Ski-Doo MX Z X 600RS, 2010 07- Steering Diagram

#

Description
Price

1

BLACK HANDLE BAR - Call your local BRP dealership

506152087

Unavailable

2

Grip

506152486

$16.34

3

Handle Bar Extension | X

506152457

Unavailable

4

Steering Support | Includes 40 to 40a

506152751

$13.99

5

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Hex. Flange Screw M8 X 40

250000352

$3.38

7

STEERING PAD - Call your local BRP dealership

506152522

$53.99

8

MAIN TUBE - Call your local BRP dealership

506152478

Unavailable

9a

Half-Housing

506152293

$12.99

9b

Lower Half-Housing

506152217

$7.62

9c

Lower Vibration Ring

506152518

$4.79

10a

Housing Bushing

506152297

$12.99

10b

RETAINING RING - Call your local BRP dealership

506152440

Unavailable

10c

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

11

Hex. Flange Screw M6 X 70

207667056

$4.44

12

Hex. Flange Screw M6 X 70

207667044

$0.85

13

Elastic Flange Nut M6 X 1.0

233261416

$2.11

14

Plate

506152163

$12.99

15

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

16

Elastic Stop Nut M10

232500416

$1.90

17

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

18

LH Thread Ball Joint

506152081

$41.49

19

LH Threaded Hex. Jam Nut M10

250100016

$0.74

20

RH Threaded Ball Joint

506152019

$41.49

21

RH Threaded Hex. Jam Nut M10

732610010

$0.74

22

Washer

506152194

$4.55

23

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

24

Elastic Stop Nut M10

232500416

$1.90

25

Bushing

506152476

$12.58

26

Yellow Wind Deflector Kit

860200710

$95.99

27

RH DEFLECTOR - Call your local BRP dealership | Black/Black Model

517303623

Unavailable

28

DEFLECTOR_AIR HAND LH B-190 - Call your local BRP dealership | Black/Black Model

517303624

Unavailable

29

Socket Head Screw M4 X 40 | X

205444086

$1.69

30

Elastic Stop Nut M4

232541484

$0.74

31

Flat Washer 4 mm

234041480

$0.74

32

U-Clamp | XT

517303264

$11.99

33

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

34

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

35

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable
