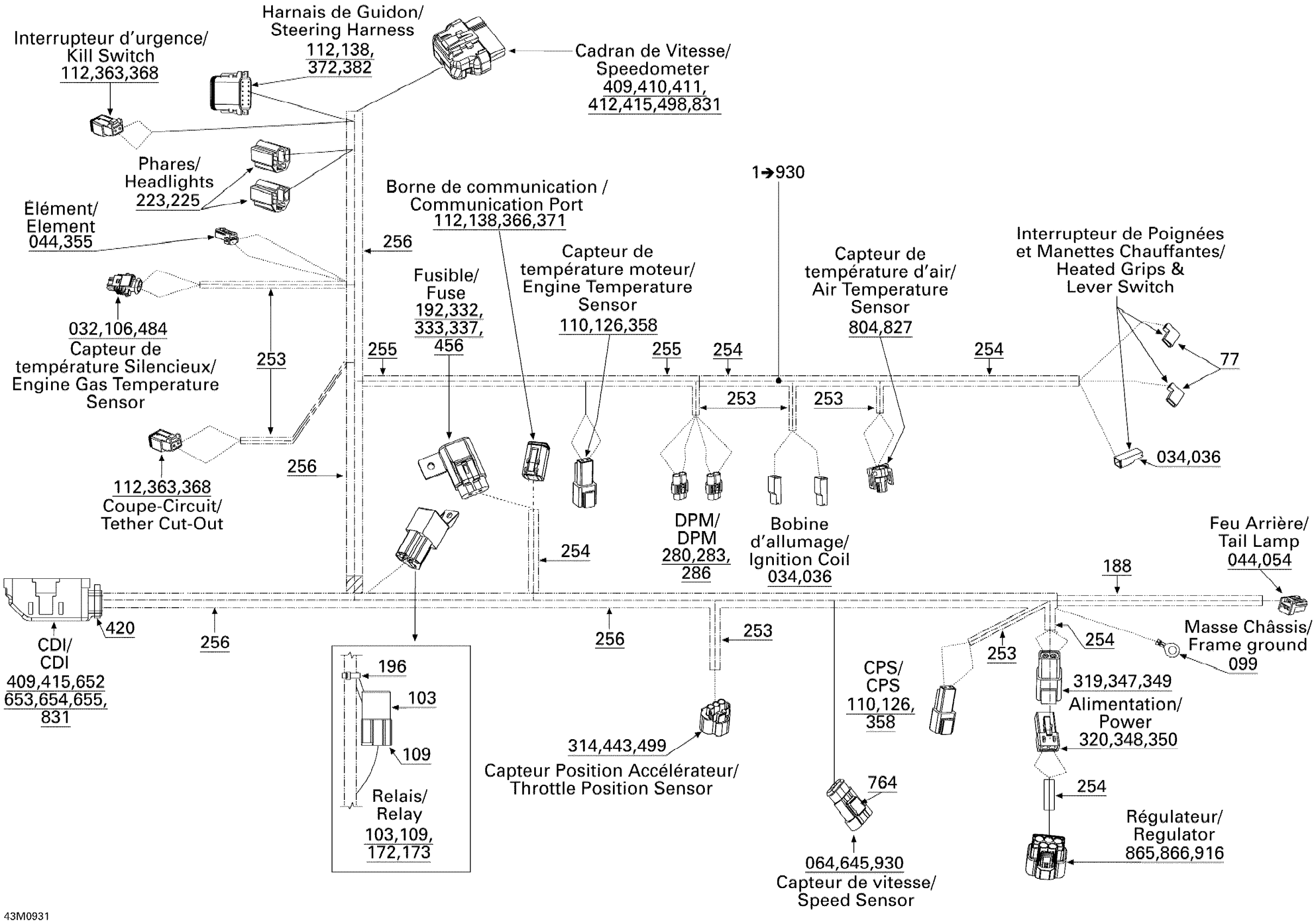

Ski-Doo MX Z X 600RS, 2009 Electrical Harness Diagram

#

Description
Price

1

MAIN WIRING HARNESS - Call your local BRP dealership | Includes 1 to 930

515176799

Unavailable

032

Female Terminal

278000998

$3.48

034

Female Terminal

409010100

$5.46

036

Female Terminal Housing, 1 Circuit

409010400

$7.48

044

Female Terminal

515175231

$4.12

054

Female Housing, 3 Circuits

515175495

$15.35

064

Housing

710000568

$10.83

077

Female Terminal

409010300

$4.12

099

Open Barrel

278000992

$1.79

103

Relay | DS 650 X

710010053

Unavailable

106

Male Housing, 2 Circuits

278001005

$15.57

109

Female Housing, 5 Circuits

409209900

$8.98

110

Male Terminal

278000631

$4.12

112

Female Terminal

278000632

$1.69

126

Male Lock, 2 Circuits

409207500

$3.02

138

Sealing Cap

293000052

$2.55

172

Female Terminal

561503100

Unavailable

173

Female Terminal

561503100

Unavailable

188

Tubing 12 mm

409902000

Unavailable

192

Fuse, 20 Amperes

409003900

$3.22

196

Tie Wrap 142 mm

293750002

$0.88

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

280

Female Terminal

409012100

$3.73

283

Not Available As Spare Part - Friction Washer

Unavailable

286

Seal

409012300

$4.38

314

Female Terminal Housing, 3 Circuits

515176176

$15.35

319

Male Terminal

515175568

$7.48

320

Female Terminal

515175567

$6.03

332

Fuse Holder Cap

278001326

$6.03

333

Fuse Holder

278001325

$8.57

337

Female Terminal

710000113

$6.03

347

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

348

Female Terminal Housing, 2 Circuits

278001673

$23.05

349

Male Lock, 2 Circuits

278001672

$3.02

350

Female Lock, 2 Circuits

278001671

$3.22

355

Female Housing, 2 Circuits

515175658

$15.35

358

Male Terminal Housing, 2 Circuits

515175665

$8.02

363

Female Terminal Housing, 2 Circuits

515175670

$7.85

366

Male Housing, 6 Circuits

515175673

$13.05

368

Female Lock, 2 Circuits

515175675

$4.42

371

Male Wedge, 6 Circuits

515175678

$5.11

372

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

515175679

Unavailable

382

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

409

Plug

515175812

$1.70

410

Female Housing, 24 Circuits

515175801

$9.00

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

415

Female Terminal

515175806

$0.81

420

Tie-Rap 180 mm

414115200

$0.09

443

Female Terminal

710000335

$1.80

456

Cushion

278000805

$3.22

484

Seal

415128501

$1.51

498

Female Housing

710000399

$14.02

499

Wire Seal

710000402

$4.42

645

Male Terminal

515176164

$6.43

652

Female Housing

515176221

$14.94

653

Wire Seal

515176222

$14.97

654

Female Terminal Housing, 36 Circuits

515176223

$12.97

655

Terminal Support

515176224

$15.02

764

Clip

710000992

$4.00

804

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515176523

Unavailable

827

Female Terminal

710001119

$4.32

831

Female Terminal

710001131

$7.00

865

Connector

515176530

$29.97

866

Terminal

515176531

$10.99

916

Seal

515176594

$6.43

930

Wire Seal

515176621

$7.00
