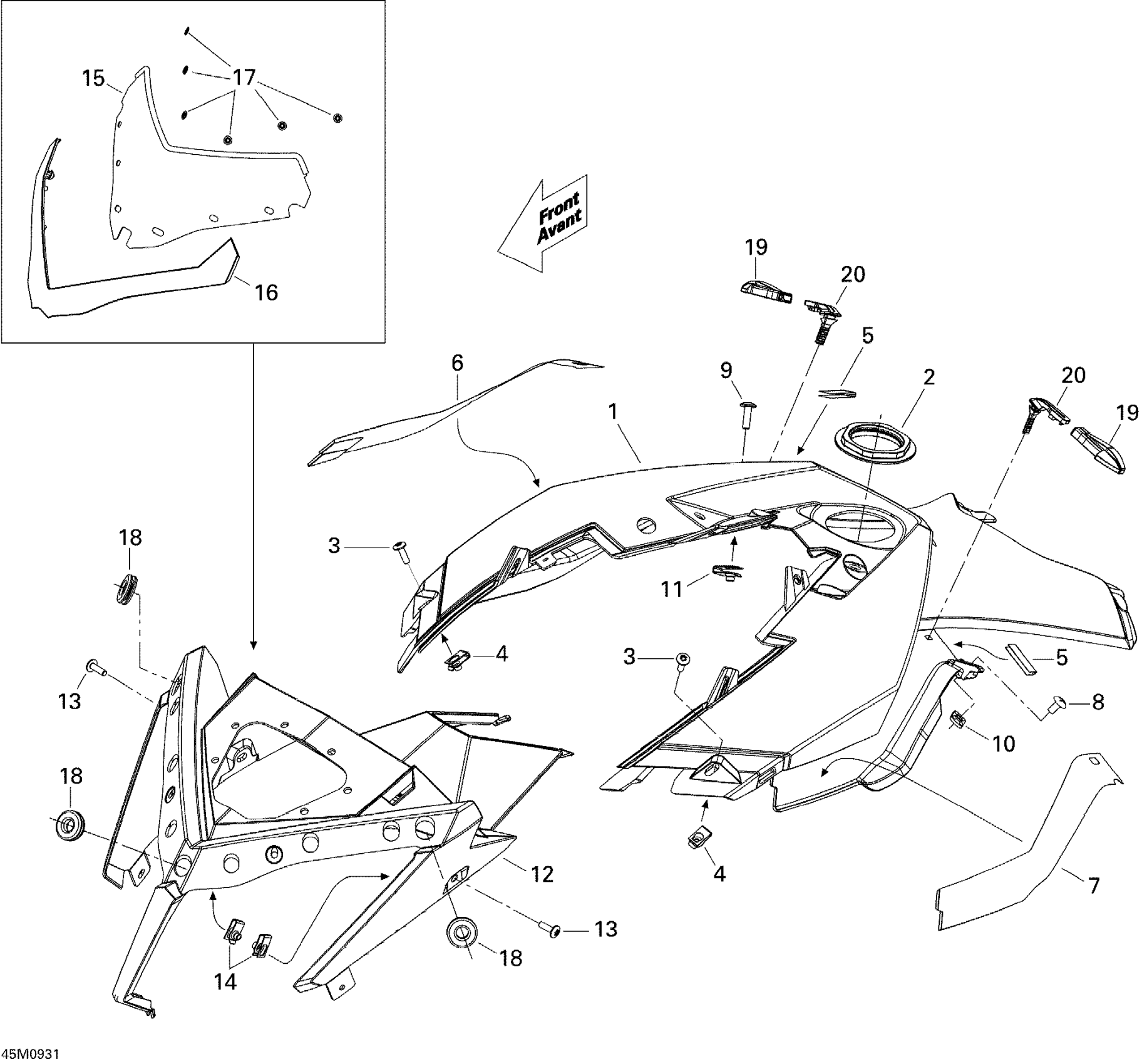

Ski-Doo MX Z X 600RS, 2009 Windshield And Console Diagram

#

Description
Price

1

YELLOW CONSOLE - Call your local BRP dealership

517304127

Unavailable

2

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

3

Torx Screw M6 X 20

250000722

$1.34

4

Panel Nut M6 X 1.0

250100198

$1.73

5

Console Decal

517304105

$10.74

6

RH Decal

517304103

$16.89

7

LH Decal

517304104

$16.89

8

Torx Truss Screw M6 X 12

250000767

$1.66

9

Torx Screw M6 X 20

250000722

$1.34

10

NUT-WELD THIN M6 - Call your local BRP dealership

250100106

Unavailable

11

Panel Nut M6 X 1.0

250100198

$1.73

12

INDICATOR SUPPORT - Call your local BRP dealership

517304699

Unavailable

13

Torx Screw M6 X 20

250000722

$1.34

14

Panel Nut M6 X 1.0

250100198

$1.73

15

WINDSHIELD - Call your local BRP dealership

517303621

Unavailable

16

Windshield Support Kit

860200089

$23.99

17

Push Nut

732610072

$1.72

18

Grommet

517303756

$3.15

19

End Piece Latch

517304075

$4.43

20

Panel Latch

517303981

$10.00
