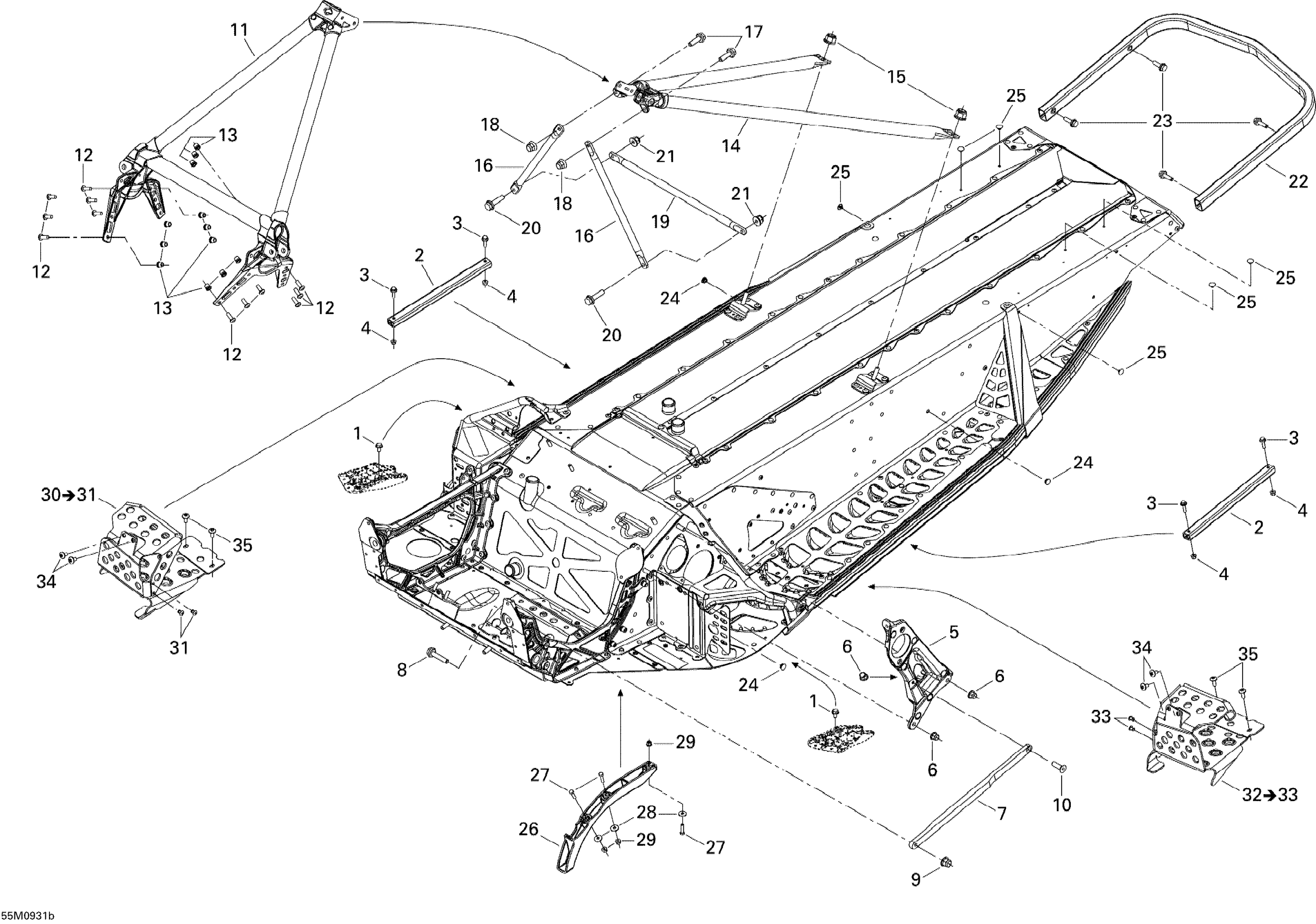

Ski-Doo MX Z X 600RS, 2009 Frame and Components 2 Diagram
#
Description
Price
1
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
2
REINFORCEMENT LINK - Call your local BRP dealership
518325790
Unavailable
4
Hex. Flange Elastic Nut M5
233251414
Unavailable
5
Pulley Support
518328346
Unavailable
6
Hex. Flange Elastic Nut M8
233281414
Unavailable
7
LINK - Call your local BRP dealership
518326118
Unavailable
9
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
10
Torx Screw M8 X 25, Scotch Grip
250000143
Unavailable
12
Hex. Flange Screw M6 X 20
207662044
Unavailable
13
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
14
Rear Member
518326559
Unavailable
15
Hex. Flange Elastic Nut M8
233281414
Unavailable
16
Upper Lateral Column Support
518325114
Unavailable
17
Hex. Flange Screw M6 X 20
207662044
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
Center Column Support
518325115
Unavailable
20
Hex. Flange Screw M6 X 25
207662544
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Clear Rear Bumper
518324980
Unavailable
23
Hex. Flange Screw M6 X 16
207661644
Unavailable
25
Full Moon Dart 5 mm
293730042
Unavailable
26
Front Tunnel Protector | Includes 1700 to 1700a
518326973
Unavailable
28
Washer | DS 650 X
391301600
Unavailable
29
Hex. Flange Elastic Nut M5
233251414
Unavailable
30
FOOTREST RH - Call your local BRP dealership | Includes 27 to 28
518326396
Unavailable
32
LH FOOTREST - Call your local BRP dealership | Includes 32 to 33
518326174
Unavailable
