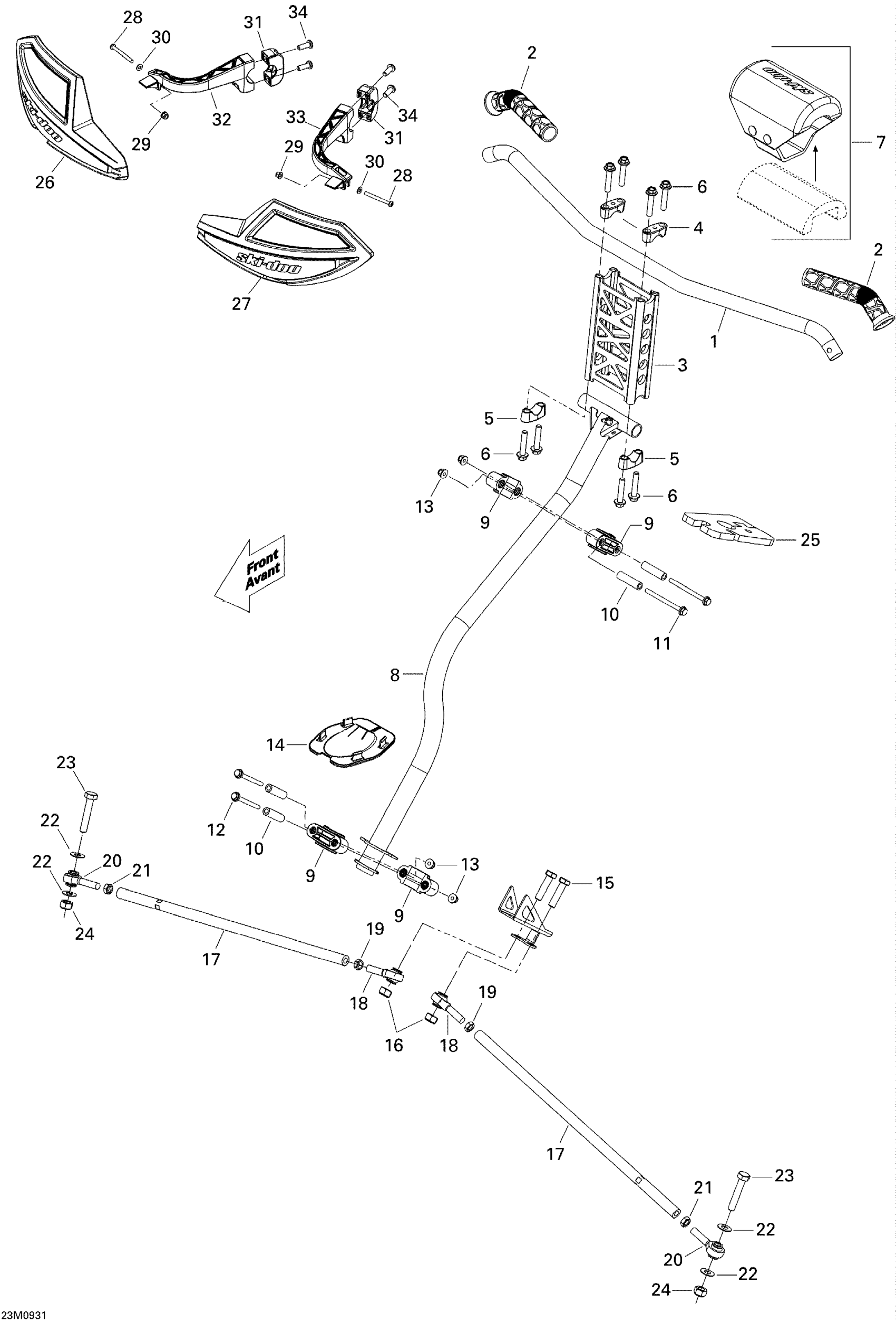

Ski-Doo MX Z X 600RS, 2009 Steering Diagram

#

Description
Price

1

BLACK HANDLE BAR - Call your local BRP dealership

506152087

Unavailable

2

Grip

506152486

$14.71

3

Handle Bar Extension | X

506152457

Unavailable

4

Steering Support | Includes 40 to 40a

506152751

$10.09

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Hex. Flange Screw M8 x 40

250000285

$0.77

7

STEERING PAD - Call your local BRP dealership

506152522

Unavailable

8

Steering Column

506152964

$189.20

9

Half-Housing

506152293

$10.23

10

Housing Bushing

506152297

$10.23

11

Hex. Flange Screw M6 X 70

207667056

$3.61

12

Hex. Flange Screw M6 X 70

207667044

$0.70

13

Elastic Flange Nut M6 X 1.0

233261416

$1.74

14

Plate

506152163

$10.23

15

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

16

Elastic Stop Nut M10

232500416

$1.56

17

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

18

LH Thread Ball Joint

506152081

$39.97

19

LH Threaded Hex. Jam Nut M10

250100016

$0.72

20

RH Threaded Ball Joint

506152019

$39.97

21

RH Threaded Hex. Jam Nut M10

732610010

$0.72

22

Washer

506152194

$4.42

23

Hex. Screw M10 X 55

207005544

$1.85

24

Elastic Stop Nut M10

232500416

$1.56

25

CUSHION - Call your local BRP dealership

506152334

Unavailable

26

RH DEFLECTOR - Call your local BRP dealership | Black/Black Model

517303623

Unavailable

27

DEFLECTOR_AIR HAND LH B-190 - Call your local BRP dealership | Black/Black Model

517303624

Unavailable

28

Socket Head Screw M4 X 40 | X

205444086

$1.42

29

Elastic Stop Nut M4

232541484

$0.61

30

Flat Washer 4 mm

234041480

$0.61

31

U-Clamp | XT

517303264

$11.43

32

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

33

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

34

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable
