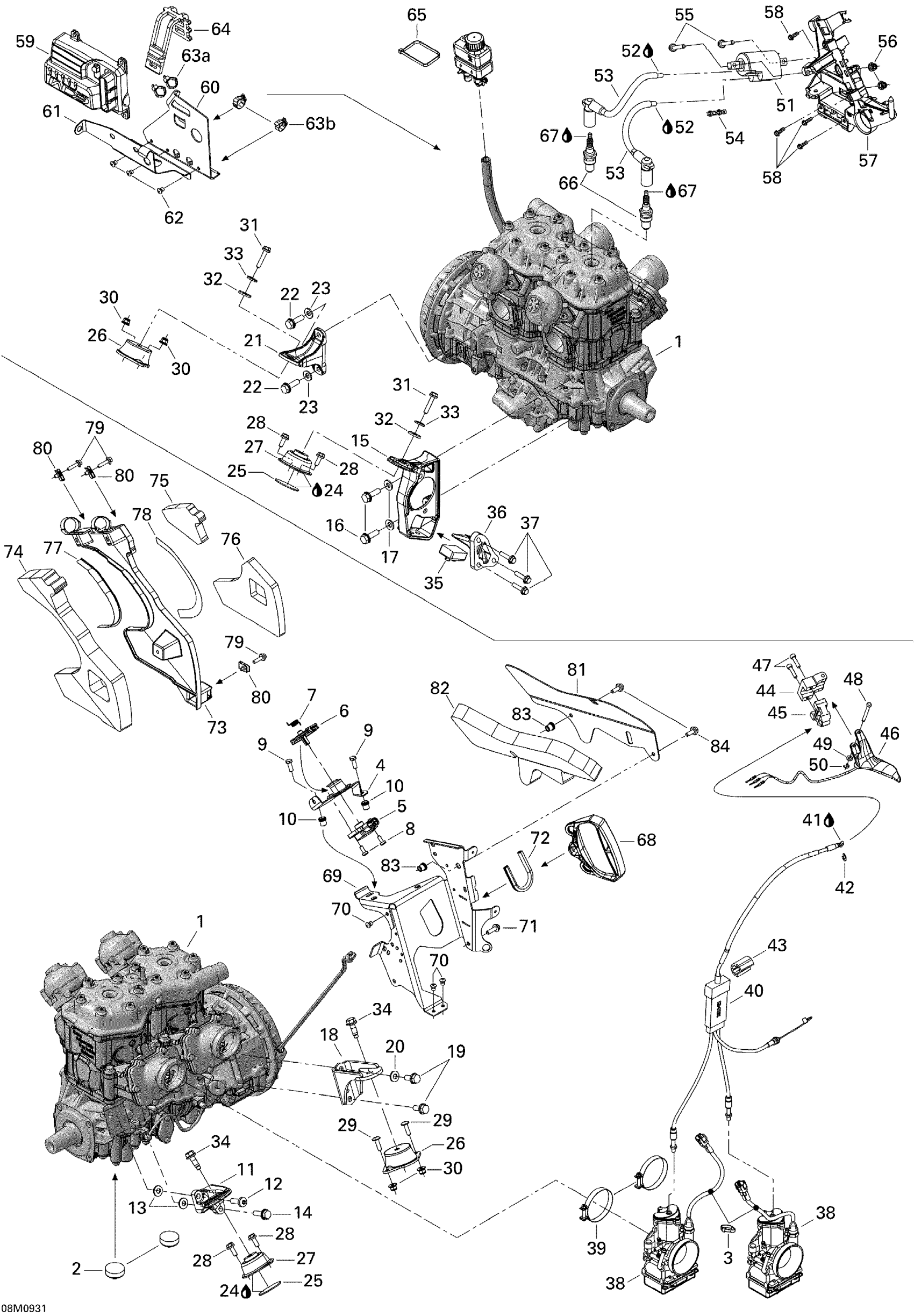

Ski-Doo MX Z X 600RS, 2009 Engine Diagram

#

Description
Price

1

Engine 593 RS

400604037

Unavailable

2

Stopper

512059738

Unavailable

3

Tie-Rap 180 mm

414115200

$0.09

4

TPS SUPPORT - Call your local BRP dealership

512060336

$24.58

5

Sensor Ass'y

404162079

$359.97

6

CAP CAM - Call your local BRP dealership

512060335

Unavailable

7

CAM SPRING - Call your local BRP dealership

512060351

Unavailable

8

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

$0.98

9

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

10

Insert

293450275

Unavailable

11

Rear Support, PTO

512060478

$29.97

12

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

13

Conical Spring Washer M8

234281474

$1.25

14

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

15

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

16

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

17

Conical Spring Washer M8

234281474

$1.25

18

REAR MAG SUPPORT - Call your local BRP dealership

512060495

$53.82

19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

20

Conical Spring Washer M8

234281474

$1.25

21

FRONT SUPPORT, MAG - Call your local BRP dealership

512060108

$45.35

22

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

23

Conical Spring Washer M8

234281474

$1.25

24

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

25

RUBBER WASHER - Call your local BRP dealership

512060410

$8.29

26

Rubber Mount

512060360

$56.89

27

Rubber Mount

512060385

$56.89

28

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

29

Hex. Socket Screw M6 X 20

250000770

Unavailable

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

31

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

32

Yellow, Washer

503183200

Unavailable

33

Conical Spring Washer M8

234281474

$1.25

34

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

35

STOPPER - Call your local BRP dealership

512060179

Unavailable

36

Stopper Support

512060576

$28.43

37

Hex. Flange Screw M6 X 25

207562544

$1.39

38

CARBURATOR TMX38-69 - Call your local BRP dealership

403138808

$499.20

39

Gemi Clamp

512059835

Unavailable

40

THROTTLE CABLE - Call your local BRP dealership

512060550

Unavailable

41

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

42

Circlip

414274500

Unavailable

43

Protector

512060313

$9.31

44

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

45

Lower Housing

512059537

$73.05

46

HANDLE ASS'Y - Call your local BRP dealership

512060431

$72.28

47

Socket Screw M5 X 25

205052544

$1.34

48

Lever Pin

414438700

$11.14

49

Flat Washer M5, Stainless

234051600

$0.64

50

Circlip

293370050

$0.46

51

Ignition Coil

512059968

Unavailable

52

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

53

Cable

512060291

Unavailable

54

Plastic Clip, Spark Plug Wire

410914600

Unavailable

55

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

57

COILS SUPPORT - Call your local BRP dealership

512060925

$16.89

58

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

59

Calibrated Module

512060443

Unavailable

60

ECM SUPPORT - Call your local BRP dealership

512060337

Unavailable

61

TANK SUPPORT - Call your local BRP dealership

512060379

$23.82

62

Avex Rivet

390909200

Unavailable

63a

Tie-Rap 180 mm

414115200

$0.09

63b

Tridon Gear Clamp

293650172

$2.68

64

LATCH - Call your local BRP dealership

570069700

Unavailable

65

Tie-Rap 180 mm

414115200

$0.09

66

Spark Plug NGK BR9ECS-5

512059552

$9.70

67

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

68

Starter Grip

512060136

$14.54

69

Grip Support - Call Your Local BRP Dealership

512060491

$74.58

70

Avex Rivet

390909200

Unavailable

71

Hexagonal Head Screw

210262050

$1.74

72

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

73

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

74

Interior Noise Foam

512060343

Unavailable

75

Upper Exterior Noise Foam

512060344

Unavailable

76

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

77

Heat Shield

512060574

Unavailable

78

Heat Shield

512060575

Unavailable

79

Hex.Flange Screw M5 X 20

207652044

$1.56

80

Panel Nut M5 X 0.8

250000958

Unavailable

81

REAR NOISE SHIELD - Call your local BRP dealership

512060492

Unavailable

82

Rear Noise Foam

512060381

Unavailable

83

Insert

293450275

Unavailable

84

Hex. Flange Screw M6 X 16

207661644

Unavailable
