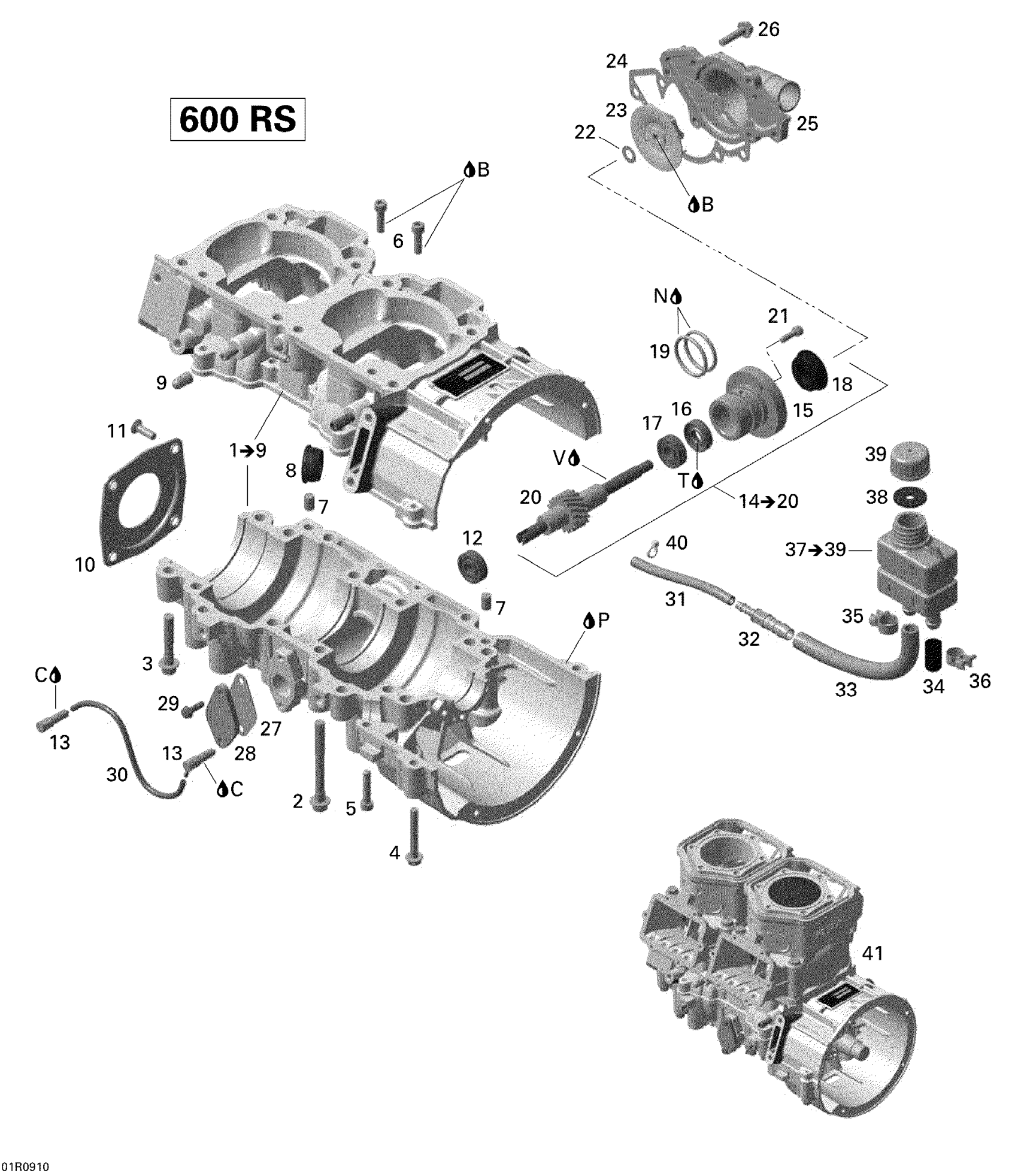

Ski-Doo MX Z X 600RS, 2009 Crankcase Diagram
#
Description
Price
1
CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 6
420893291
Unavailable
3
Hex. Collar Screw M8 x 45
420640432
Unavailable
4
Allen Screw M6 x 45 This part replaces 420640311.
420640312
Unavailable
5
Socket Head Screw M6 X 30
205063044
Unavailable
6
Allen Screw M6 x 22 This part replaces 420840401.
420840403
Unavailable
7
Center Pin 8 X 12
420632010
Unavailable
10
Oil Seal Cover
420812422
Unavailable
11
Screw M6 X 20
420941436
Unavailable
12
Ball Bearing
420232100
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
17
Ball Bearing
420232100
Unavailable
18
Rotary Seal
420650371
Unavailable
19
O-Ring
420950890
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Allen Screw M5 x 16
420840514
Unavailable
24
Gasket This part replaces 420931810.
420931811
Unavailable
27
Gasket This part replaces 420931566.
420931568
Unavailable
28
Cover Plate
420810827
Unavailable
29
Taptite Screw M5 X 16
420941928
Unavailable
30
Oil Hose 1500Mm Long
219704404
Unavailable
31
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
33
OIL TUBE - Call your local BRP dealership
420956239
Unavailable
35
CLAMP - Call your local BRP dealership
420951260
Unavailable
36
CLAMP - Call your local BRP dealership
420951241
Unavailable
41
SHORT BLOCK 593 RS - Call your local BRP dealership
420059320
Unavailable
C
Sealant Loctite 648
219703000
Unavailable
T
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
V
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
