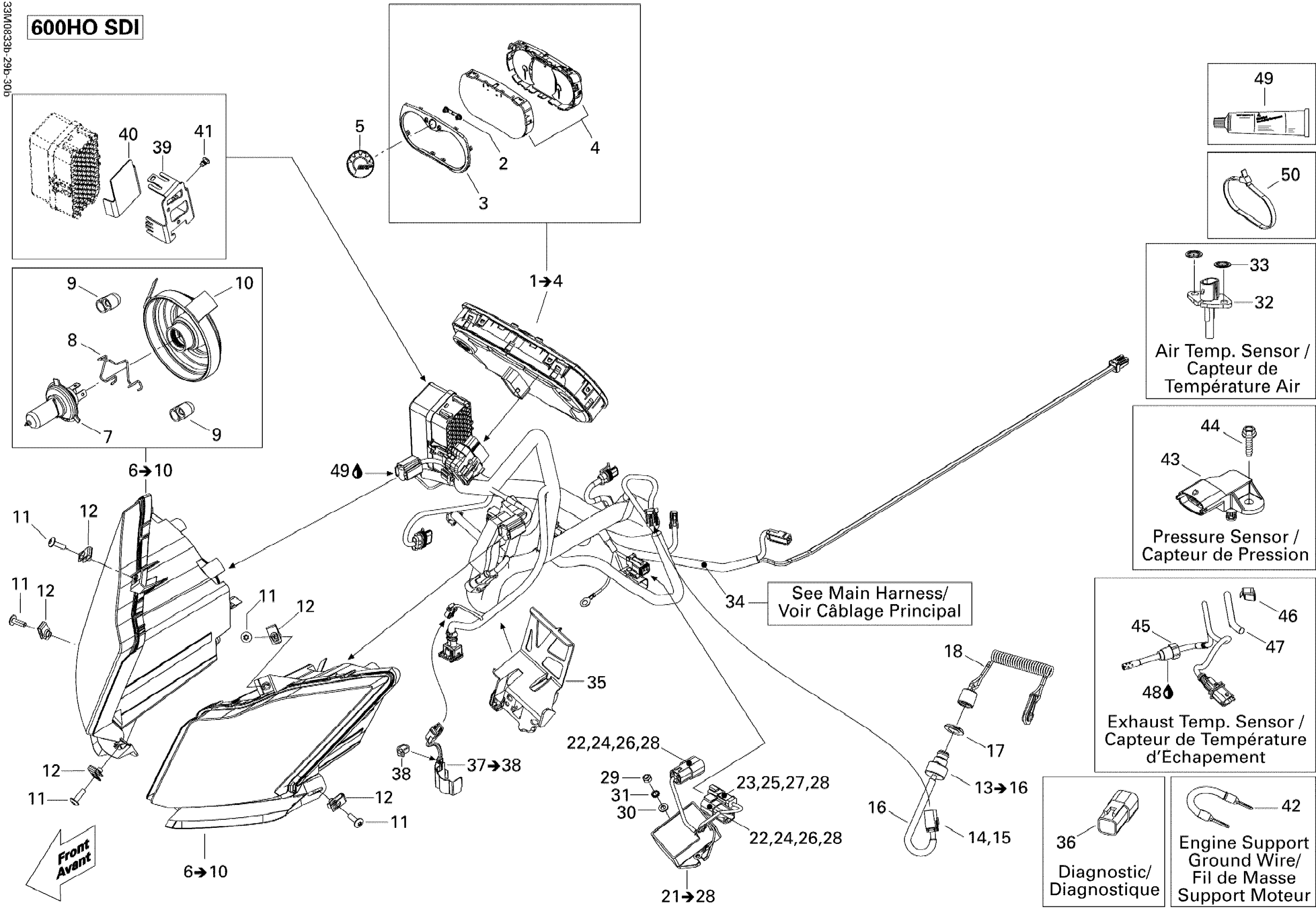

Ski-Doo MX Z X 600 HO SDI, 2008 10- Electrical System 600HO SDI Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

$12.99

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

DESS Switch

515177249

$114.99

14

Male Terminal

515175232

$1.58

15

Male Housing, 3 Circuits

515175494

$16.18

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$3.28

18

DESS

515178284

$84.99

21

Voltage Regulator | Includes 32 to 38

515176243

$359.99

22

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

23

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

24

Male Terminal

515175568

$9.12

25

Male Terminal

278000631

$4.39

26

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

27

Male Lock, 2 Circuits

278001672

$3.49

28

Sealing Cap

293000052

$3.19

29

Elastic Stop Nut M6

232561414

$0.55

30

Flat Washer 6 mm

234061410

$1.36

31

External Serrated Lock Washer 6 mm

234461608

$1.15

32

Air Temperature Sensor

515176366

$19.99

33

Push Nut

389804300

$0.53

34

MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 2000

515176603

Unavailable

35

BRACKET - Call your local BRP dealership

515176513

Unavailable

36

Diagnostic Connector

278002704

$19.49

37

HEATER ELEMENT SUPPORT ASS'Y - Call your local BRP dealership | Includes 50 to 53

515176653

Unavailable

38

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

Fuse Support - Call Your Local BRP Dealership

515177549

Unavailable

40

PROTECTOR - Call your local BRP dealership

515176637

Unavailable

41

Avex Rivet

390909200

$0.30

42

Ground Wire

515176358

$27.99

43

Pressure And Temperature Sensor

707000995

$88.99

44

Screw M4 X 16

250000725

$3.49

45

Temperature Sensor

514054641

$219.99

46

Clip

414227300

$1.67

47

Tubing 6 Mm 3000Mm Long

219704425

$13.75

48

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

49

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

50

Tie Wrap 94 mm | 4X4

293750001

$1.03

50

Tie Wrap 142 mm

293750002

$1.25

50

Tie-Rap 180 mm

414115200

$0.11

50

Tie Wrap 368 mm

293750008

$1.04
