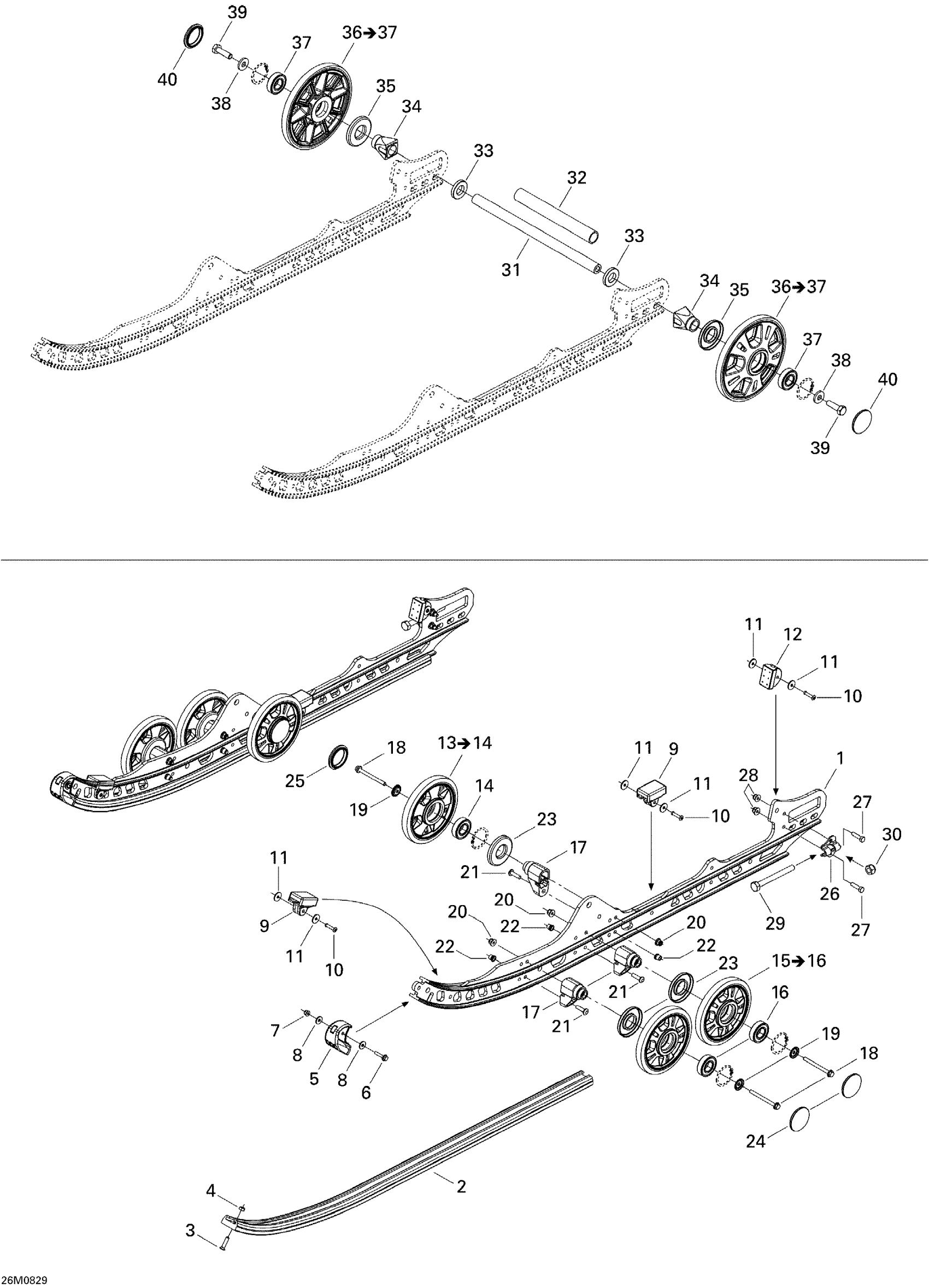

Ski-Doo MX Z X 600 HO SDI, 2008 Rear Suspension Diagram

#

Description
Price

1

Suspension Rail 120

503196633

$230.74

2

Black Slider Shoe 120"

503191301

$27.66

3

Phillips Screw M6 X 25

208562531

$1.74

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

503191137

$10.20

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$10.23

10

Pop Rivet 3/16"

293150142

$2.11

11

Washer

503191273

$1.06

12

Rubber Stopper

503191291

$18.43

13

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$36.12

14

Ball Bearing | Package-STD

503190396

$7.12

15

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$36.12

16

Ball Bearing | Package-STD

503190396

$7.12

17

Casted Support

503193894

$12.75

18

Hex. Flange Screw M6 X 70

207667044

$0.70

19

Wheel Cup M6

503191820

$4.66

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

Hex. Flange Screw M6 X 25

207662544

$0.53

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

23

Labyrinth Seal

503190434

$4.29

24

Wheel Cap

570063600

$3.28

25

Wheel Cap

570063600

$3.28

26

Tensioner

503192583

$5.85

27

Hex. Screw M6 X 25

207162544

$1.05

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.68

31

Rear Axle

503190429

$59.97

32

Spacer

503191108

$15.35

33

Washer

503190432

$12.52

34

Rear Wheel Spacer

503190428

$6.06

35

Labyrinth Seal

503190434

$4.29

36

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$49.97

37

Ball Bearing | Package-STD

503190396

$7.12

38

Washer

503190439

$5.82

39

Hex. Screw With Nylon

250000019

$1.42

40

Wheel Cap

570063600

$3.28
