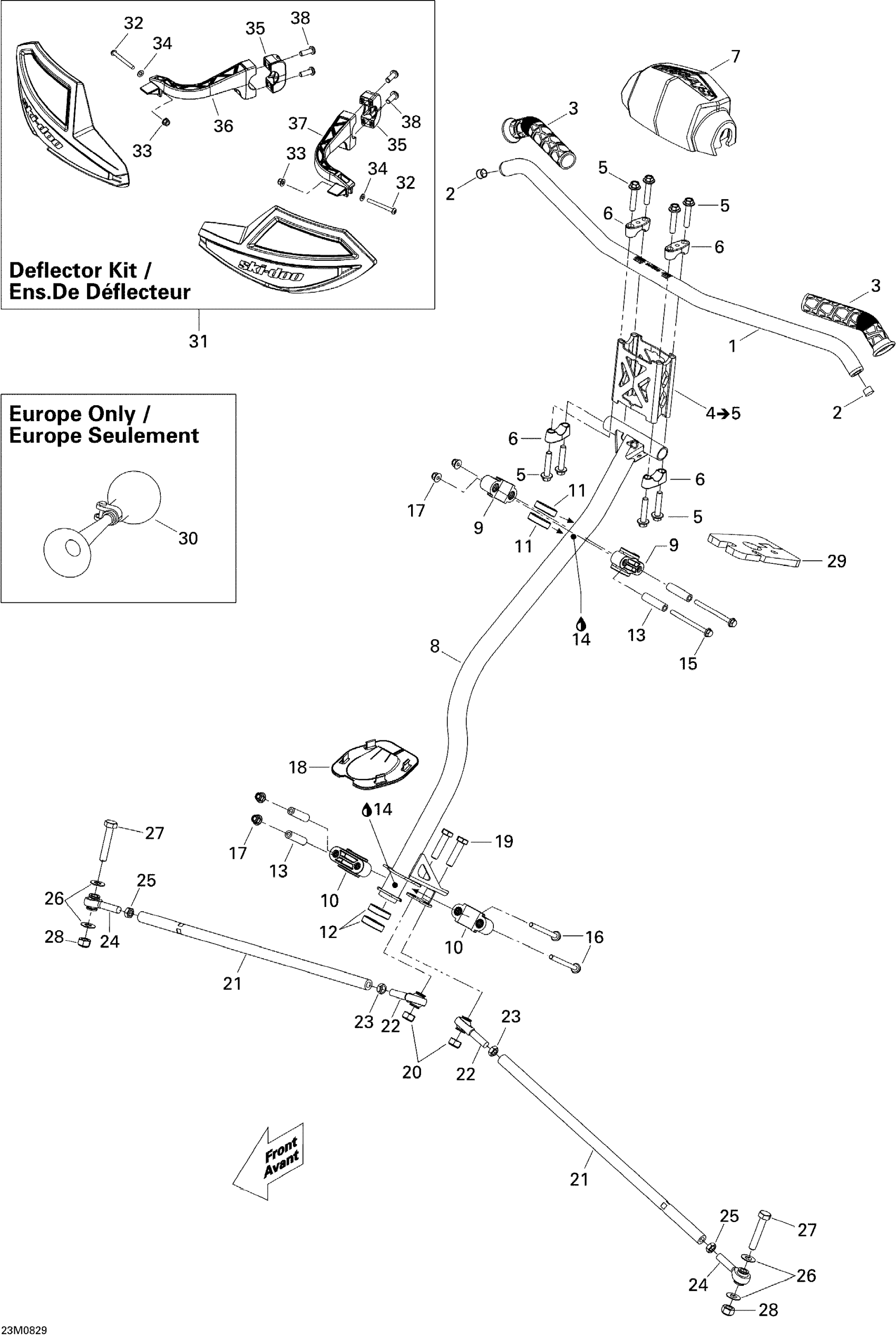

Ski-Doo MX Z X 600 HO SDI, 2008 Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

2

Cap

572051500

$5.38

3

Grip

506152486

$14.71

4

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

5

Hex. Flange Screw M8 x 40

250000285

$0.77

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Steering Pad

506152192

$54.58

8

Steering Column

506152964

$189.20

9

Upper Half Housing

506152219

$1.68

10

Lower Half-Housing

506152217

$5.57

11

Upper Vibration Ring

506152292

$0.72

12

Lower Vibration Ring

506152518

$4.52

13

Housing Bushing

506152297

$10.23

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

Hex. Flange Screw M6 X 70

207667056

$3.61

16

HEX. FLANGED SCREW M6 X 65 - Call your local BRP dealership

207666534

Unavailable

17

Elastic Flange Nut M6 X 1.0

233261416

$1.74

18

Plate

506152163

$10.23

19

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

20

Elastic Stop Nut M10

232500416

$1.56

21

Tie-Rod Ass'y

506152496

$59.97

22

LH Thread Ball Joint

506152081

$39.97

23

LH Threaded Hex. Jam Nut M10

250100016

$0.72

24

RH Threaded Ball Joint

506152019

$39.97

25

RH Threaded Hex. Jam Nut M10

732610010

$0.72

26

Washer

506152194

$4.42

27

Hex. Screw M10 X 55

207005544

$1.85

28

Elastic Stop Nut M10

232500416

$1.56

29

CUSHION - Call your local BRP dealership

506152334

Unavailable

30

Horn

549011291

$35.35

31

Yellow Wind Deflector Kit

860200710

$98.99

32

Socket Head Screw M4 X 40 | X

205444086

$1.42

33

Elastic Stop Nut M4

232541484

$0.61

34

Flat Washer 4 mm

234041480

$0.61

35

U-Clamp | XT

517303264

$11.43

36

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

37

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

38

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable
