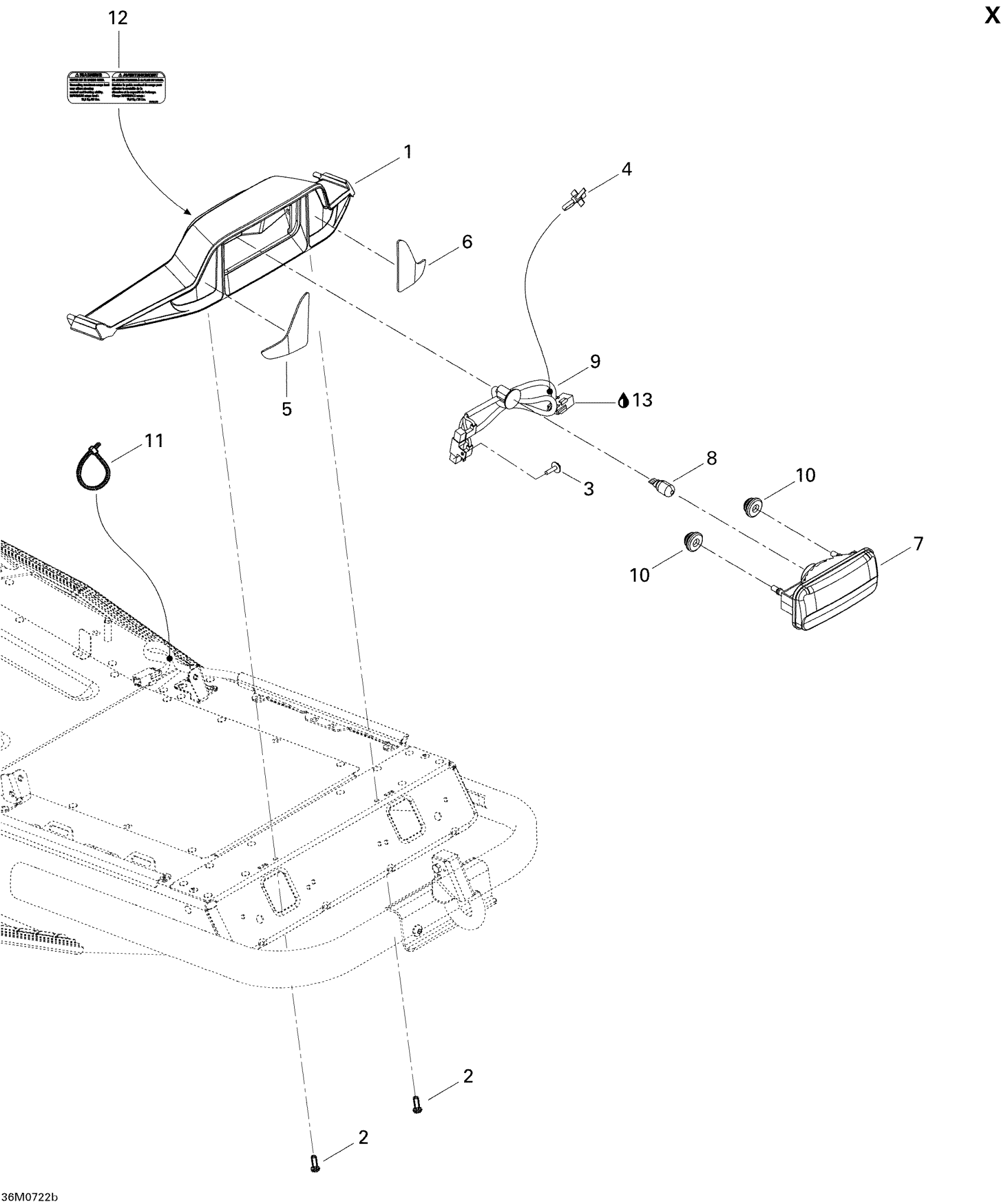

Ski-Doo MX Z X 600 HO SDI, 2007 09- Luggage Rack X Diagram

#

Description

Price

1

LIGHT SUPPORT - Call your local BRP dealership | X

511000512

Unavailable

2

Torx Screw K50 X 16

250000720

$1.69

3

Screw M4 X 16

250000725

$3.49

4

Tie-Rap 173 mm

293750009

$1.04

5

REAR REFLECTOR - Call your local BRP dealership

511000459

Unavailable

6

REAR REFLECTOR - Call your local BRP dealership

511000460

Unavailable

7

Rear Lens Box | MX Z X 600RS

710000652

Unavailable

8

BULB - Call your local BRP dealership | MX Z X 600RS

710000653

Unavailable

9

WIRING HARNESS - Call your local BRP dealership | MX Z X 600RS

511000508

Unavailable

10

Stopper Rubber

705014429

$5.95

11

Tie Wrap 142 mm

293750002

$1.25

12

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
