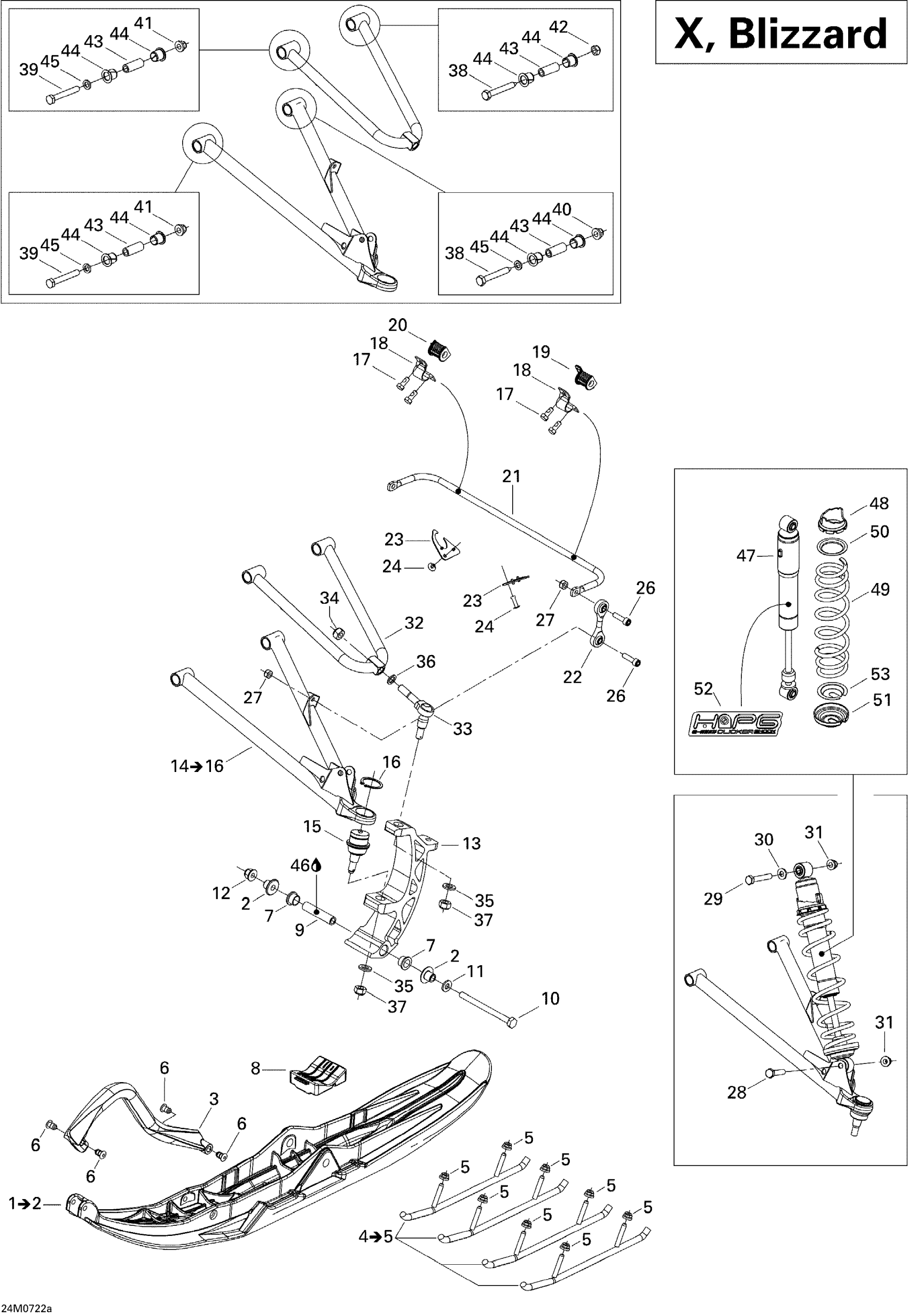

Ski-Doo MX Z X 600 HO SDI, 2007 Front Suspension And Ski X Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

1

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

2

Ski Bushing

505071781

$14.90

3

Yellow Handle | Model-MX-Z TNT

505070917

$40.27

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$130.57

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Retainer 17mm long

505071812

$4.30

7

Leg Bushing

505072690

$5.75

8

Ski Stopper

505071779

$15.64

9

Spacer

506133300

$19.37

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

11

Washer

732900049

$0.55

12

Flange Nut M10

732610084

$6.30

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512300

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16, X (Yellow/Black)

860513300

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16

860512200

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership | Includes 14 to 16, X (Yellow/Black)

860513600

Unavailable

15

Ball Joint

505073636

$48.48

16

Circlip

293370035

$2.48

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

20

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

21

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

22

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.52

26

Socket Head Screw M8 X 30

205083044

$1.06

27

Hex. Elastic Stop Nut M8

232581414

$0.54

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Washer

503189564

$0.70

31

Hex. Flange Elastic Nut M10

233201414

$1.45

32

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

32

UPPER ARM, YELLOW - Call your local BRP dealership | X (Yellow/Black)

505072029

Unavailable

33

Upper Ball Joint

505072257

$16.39

34

Hex. Flange Elastic Nut M12

250000047

$1.79

35

Flat Washer 12 mm

234021410

$0.66

36

Washer

503189276

$3.10

37

Hex. Flange Elastic Nut M12

250000047

$1.79

38

Hex. Screw M10 X 75

250001063

$11.18

39

Hex. Screw M10 X 75

250001063

$11.18

40

Hex. Flange Elastic Nut M10

250100165

$0.81

41

Hex. Flange Elastic Nut M10

250100165

$0.81

42

Hex. Flange Elastic Nut M10

250100165

$0.81

42

Elastic Flange Nut M10

232501416

$1.43

43

Bushing

505070567

$19.37

44

Arm Bushing

505070566

$3.04

45

Washer

503189564

$0.70

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

FRONT SHOCK - Call your local BRP dealership | Except Europe

505071993

Unavailable

48

Adjustment Cam

505073625

$11.82

49

SPRING - Call your local BRP dealership | Europe

505071833

Unavailable

49

Deep Black, Spring

505072119

$58.18

50

Spring Guide

503191872

$2.12

51

Spring Stopper

706200881

$11.82

52

HPG DECAL - Call your local BRP dealership

505072222

Unavailable

53

Cap

706200785

$4.28
