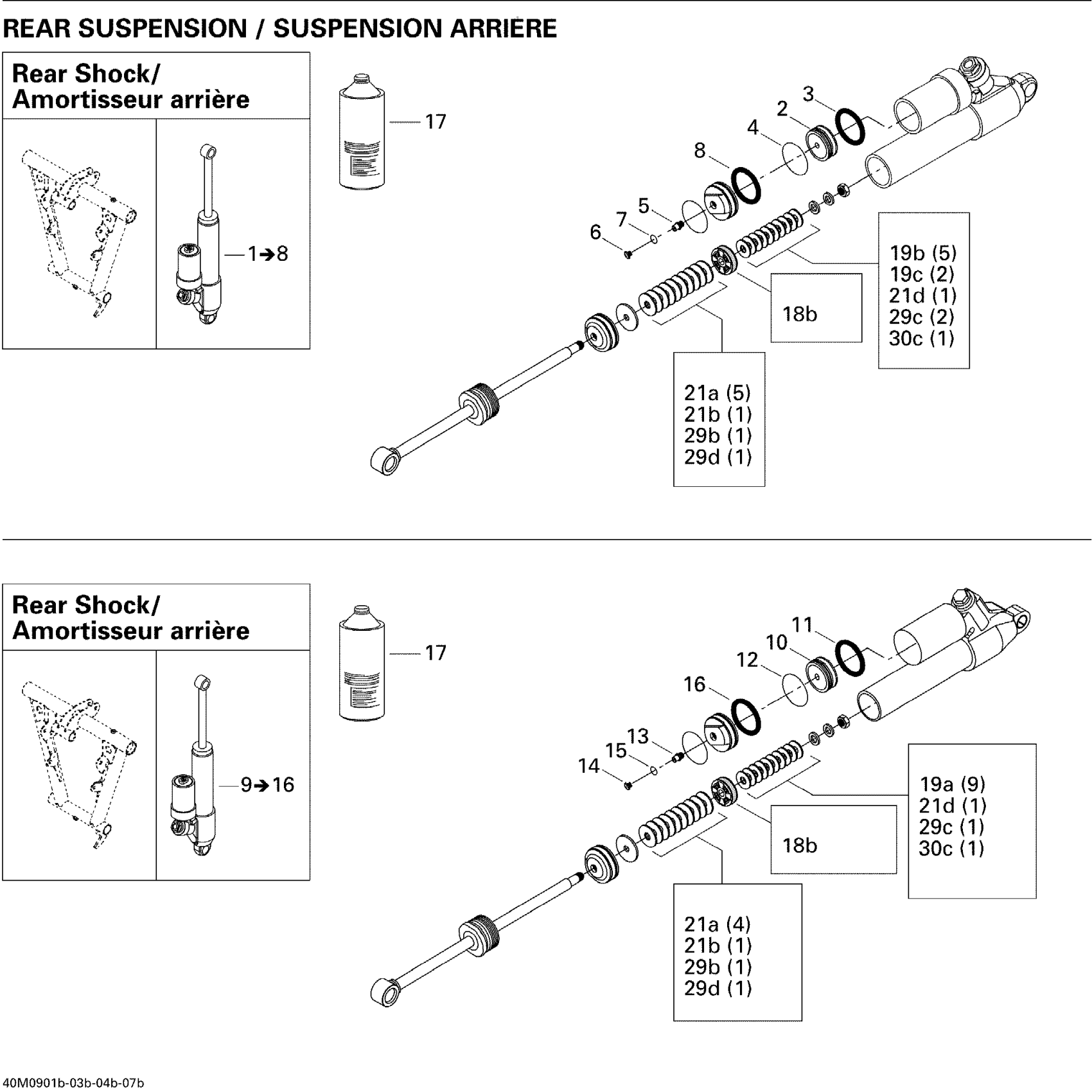

Ski-Doo MX Z X 600 H.O. ETEC, 2009 08- Take Apart Shock, Rear 2 Diagram
#
1
REAR SHOCK - Call your local BRP dealership | Europe
503192024
Unavailable
2
FREE PISTON - Call your local BRP dealership
415093812
Unavailable
9
Not Available As Spare Parts
XXX
Unavailable
10
Not Available As Spare Parts
XXX
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
14
Not Available As Spare Parts
XXX
Unavailable
15
Not Available As Spare Parts
XXX
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
18a
Piston (C36)
414888304
Unavailable
18b
Not Available As Spare Part - Friction Washer
Unavailable
18c
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
18d
Not Available As Spare Part - Friction Washer
Unavailable
18e
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
18f
Not Available As Spare Part - Friction Washer
Unavailable
18g
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
19a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
19b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
19c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
19d
Not Available As Spare Part - Friction Washer
Unavailable
20a
Not Available As Spare Part - Friction Washer
Unavailable
20b
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
20c
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
20d
Not Available As Spare Part - Friction Washer
Unavailable
21a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
21b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
21c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
21d
Not Available As Spare Part - Friction Washer
Unavailable
22a
Not Available As Spare Part - Friction Washer
Unavailable
22b
Not Available As Spare Part - Friction Washer
Unavailable
22c
Not Available As Spare Part - Friction Washer
Unavailable
22d
Not Available As Spare Part - Friction Washer
Unavailable
23a
Not Available As Spare Part - Friction Washer
Unavailable
23b
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
23c
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
23d
Not Available As Spare Part - Friction Washer
Unavailable
24a
Not Available As Spare Part - Friction Washer
Unavailable
24b
Not Available As Spare Part - Friction Washer
Unavailable
24c
Not Available As Spare Part - Friction Washer
Unavailable
24d
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
25a
Not Available As Spare Part - Friction Washer
Unavailable
25b
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
25c
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
25d
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
26a
Not Available As Spare Part - Friction Washer
Unavailable
26b
Not Available As Spare Part - Friction Washer
Unavailable
26c
Not Available As Spare Part - Friction Washer
Unavailable
26d
Not Available As Spare Part - Friction Washer
Unavailable
27a
Not Available As Spare Part - Friction Washer
Unavailable
27b
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
27c
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
27d
Not Available As Spare Part - Friction Washer
Unavailable
28a
Not Available As Spare Part - Friction Washer
Unavailable
28b
Not Available As Spare Part - Friction Washer
Unavailable
28c
Not Available As Spare Part - Friction Washer
Unavailable
28d
Not Available As Spare Part - Friction Washer
Unavailable
29a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
29b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
29c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
29d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
30a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
30b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
30c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
30d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
31a
Not Available As Spare Part - Friction Washer
Unavailable
31b
Not Available As Spare Part - Friction Washer
Unavailable
31c
Not Available As Spare Part - Friction Washer
Unavailable
31d
Not Available As Spare Part - Friction Washer
Unavailable
32a
Not Available As Spare Part - Friction Washer
Unavailable
32b
Not Available As Spare Part - Friction Washer
Unavailable
32c
Not Available As Spare Part - Friction Washer
Unavailable
32d
Not Available As Spare Part - Friction Washer
Unavailable
33a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
33b
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
33c
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
33d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
