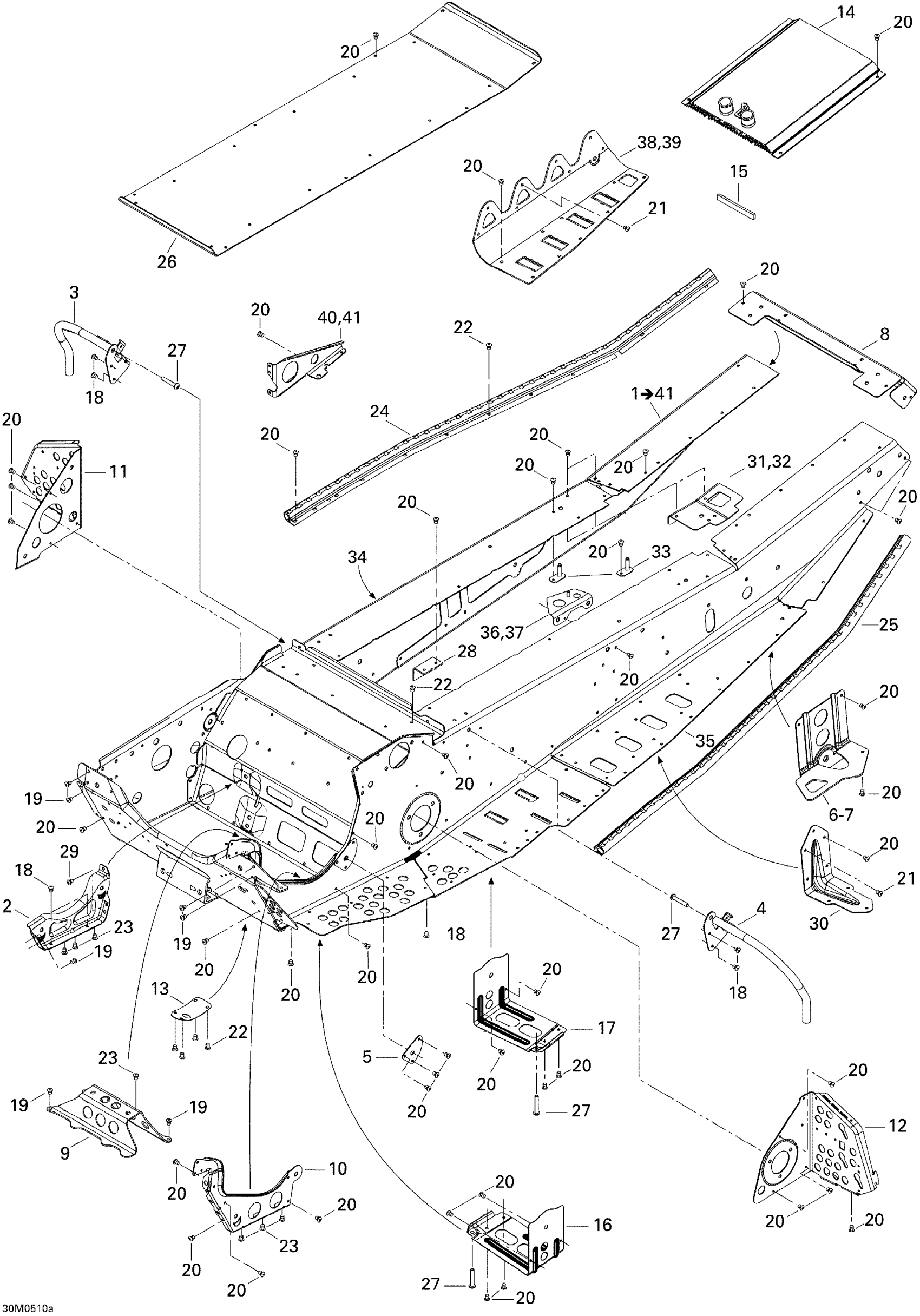

Ski-Doo MX Z X 440 Racing, 2005 09- Frame Diagram

#

Description
Price

1

Frame | Includes 1 to 41

415128929

Unavailable

2

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

3

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

4

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

5

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

6

RH SUSPENSION BRACKET, BLACK - Call your local BRP dealership

518324703

Unavailable

7

LH Suspension Bracket, Black

518324704

Unavailable

8

REAR CAP - Call your local BRP dealership

518324409

Unavailable

9

CENTER CROSS LINK - Call your local BRP dealership

518324093

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

Rear Radiator

518324580

Unavailable

15

Neoprene Seal (1PAC=3M)

219704364

$27.49

16

RH Footrest Reinforcement, Black

518324712

Unavailable

17

LH FOOTREST REINFORCEMENT, BLACK - Call your local BRP dealership

518324713

Unavailable

18

Avex Rivet

390909200

$0.30

19

Avex Rivet

390909100

$0.30

20

Pop Rivet 3/16"

390402200

$0.35

21

Pop Rivet 3/16"

390402300

$0.75

22

Pop Rivet 3/16"

390402400

$0.35

23

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

24

RH Roller

518323310

Unavailable

25

LH Roller

518323311

Unavailable

26

Center Plate

518324588

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Tunnel Reinforcement

518323185

Unavailable

29

Hemlock Rivet, 6.5 mm

293150096

$3.27

30

CENTER REINFORCEMENT - Call your local BRP dealership

518323578

Unavailable

31

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

32

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

33

Tank Bracket

518322791

Unavailable

34

RH Footrest

518324710

Unavailable

35

LH Footrest

518324711

Unavailable

36

RH Frame Reinforcement, Black

518323336

Unavailable

37

LH Frame Reinforcement, Black

518323337

Unavailable

38

RH Tunnel Liner

518323334

Unavailable

39

LH Tunnel Liner

518323335

Unavailable

40

RH BRACKET - Call your local BRP dealership

518323187

Unavailable

41

LH BRACKET - Call your local BRP dealership

518323188

Unavailable
