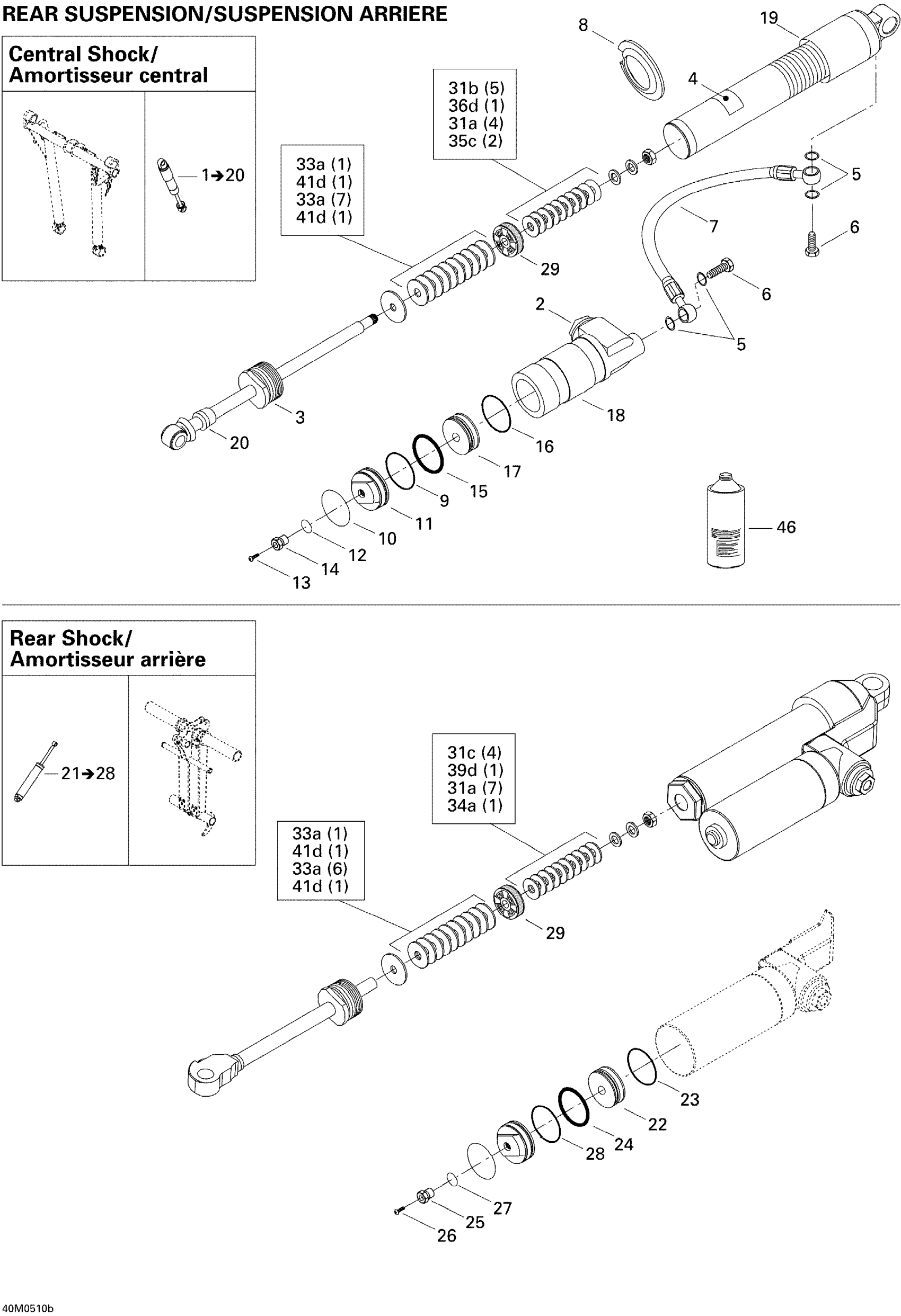

Ski-Doo MX Z X 440 Racing, 2005 08- Take Apart Shock, Rear Diagram
#
1
Center Shock
503190582
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
7
HOSE ASS'Y - Call your local BRP dealership
415128595
Unavailable
8
SPRING COLLAR - Call your local BRP dealership
415128598
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
17
Free Piston
505071016
Unavailable
18
RESERVOIR - Call your local BRP dealership
415128596
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Rear Shock
503190581
Unavailable
22
Free Piston
505071016
Unavailable
29
Piston (2 X 0,3-1) (C36)
415128848
Unavailable
30a
Piston (C36)
414888304
Unavailable
30b
Not Available As Spare Part - Friction Washer
Unavailable
30c
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
30d
Not Available As Spare Part - Friction Washer
Unavailable
30e
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
30f
Not Available As Spare Part - Friction Washer
Unavailable
30g
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
31a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
31b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
31c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
31d
Not Available As Spare Part - Friction Washer
Unavailable
32a
Not Available As Spare Part - Friction Washer
Unavailable
32b
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
32c
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
32d
Not Available As Spare Part - Friction Washer
Unavailable
33a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
33b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
33c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
33d
Not Available As Spare Part - Friction Washer
Unavailable
34a
Not Available As Spare Part - Friction Washer
Unavailable
34b
Not Available As Spare Part - Friction Washer
Unavailable
34c
Not Available As Spare Part - Friction Washer
Unavailable
34d
Not Available As Spare Part - Friction Washer
Unavailable
35a
Not Available As Spare Part - Friction Washer
Unavailable
35b
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
35c
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
35d
Not Available As Spare Part - Friction Washer
Unavailable
36a
Not Available As Spare Part - Friction Washer
Unavailable
36b
Not Available As Spare Part - Friction Washer
Unavailable
36c
Not Available As Spare Part - Friction Washer
Unavailable
36d
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
37a
Not Available As Spare Part - Friction Washer
Unavailable
37b
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
37c
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
37d
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
38a
Not Available As Spare Part - Friction Washer
Unavailable
38b
Not Available As Spare Part - Friction Washer
Unavailable
38c
Not Available As Spare Part - Friction Washer
Unavailable
38d
Not Available As Spare Part - Friction Washer
Unavailable
39a
Not Available As Spare Part - Friction Washer
Unavailable
39b
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
39c
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
39d
Not Available As Spare Part - Friction Washer
Unavailable
40a
Not Available As Spare Part - Friction Washer
Unavailable
40b
Not Available As Spare Part - Friction Washer
Unavailable
40c
Not Available As Spare Part - Friction Washer
Unavailable
40d
Not Available As Spare Part - Friction Washer
Unavailable
41a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
41b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
41c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
41d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
42a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
42b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
42c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
42d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
43a
Not Available As Spare Part - Friction Washer
Unavailable
43b
Not Available As Spare Part - Friction Washer
Unavailable
43c
Not Available As Spare Part - Friction Washer
Unavailable
43d
Not Available As Spare Part - Friction Washer
Unavailable
44a
Not Available As Spare Part - Friction Washer
Unavailable
44b
Not Available As Spare Part - Friction Washer
Unavailable
44c
Not Available As Spare Part - Friction Washer
Unavailable
44d
Not Available As Spare Part - Friction Washer
Unavailable
45a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
45b
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
45c
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
45d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
