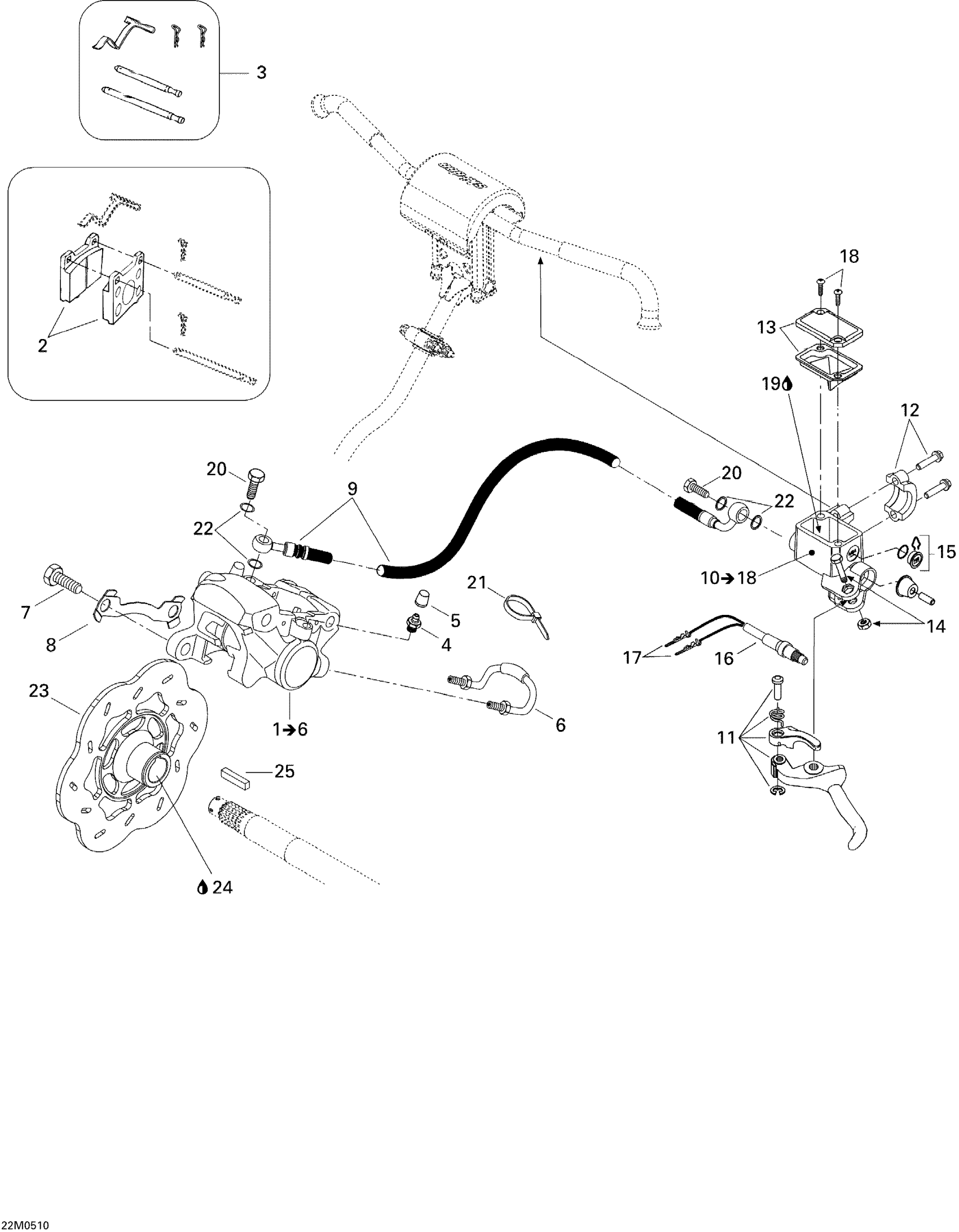

Ski-Doo MX Z X 440 Racing, 2005 06- Hydraulic Brake Diagram

#

Description
Price

1

Caliper

507032410

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

415128865

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.58

8

LOCKING TAB - Call your local BRP dealership

507032316

Unavailable

9

HOSE - Call your local BRP dealership

507032385

Unavailable

10

Master Cylinder | Includes 10 to 16

507032362

Unavailable

11

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

12

Clamp And Screw Kit

507032477

$23.99

13

Cap

415029900

$41.49

14

Pin Ass'y

415030000

$19.99

15

WINDOW - Call your local BRP dealership

414990600

Unavailable

16

Microswitch

507032366

$98.99

17

Male Terminal

515175232

$1.58

18

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

19

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

19

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

20

Banjo Bolt

414920500

$8.68

21

Tie Wrap 142 mm

293750002

$1.25

22

Washer

414920600

$1.90

23

BRAKE DISK - Call your local BRP dealership

507032395

Unavailable

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Key

501021300

Unavailable
