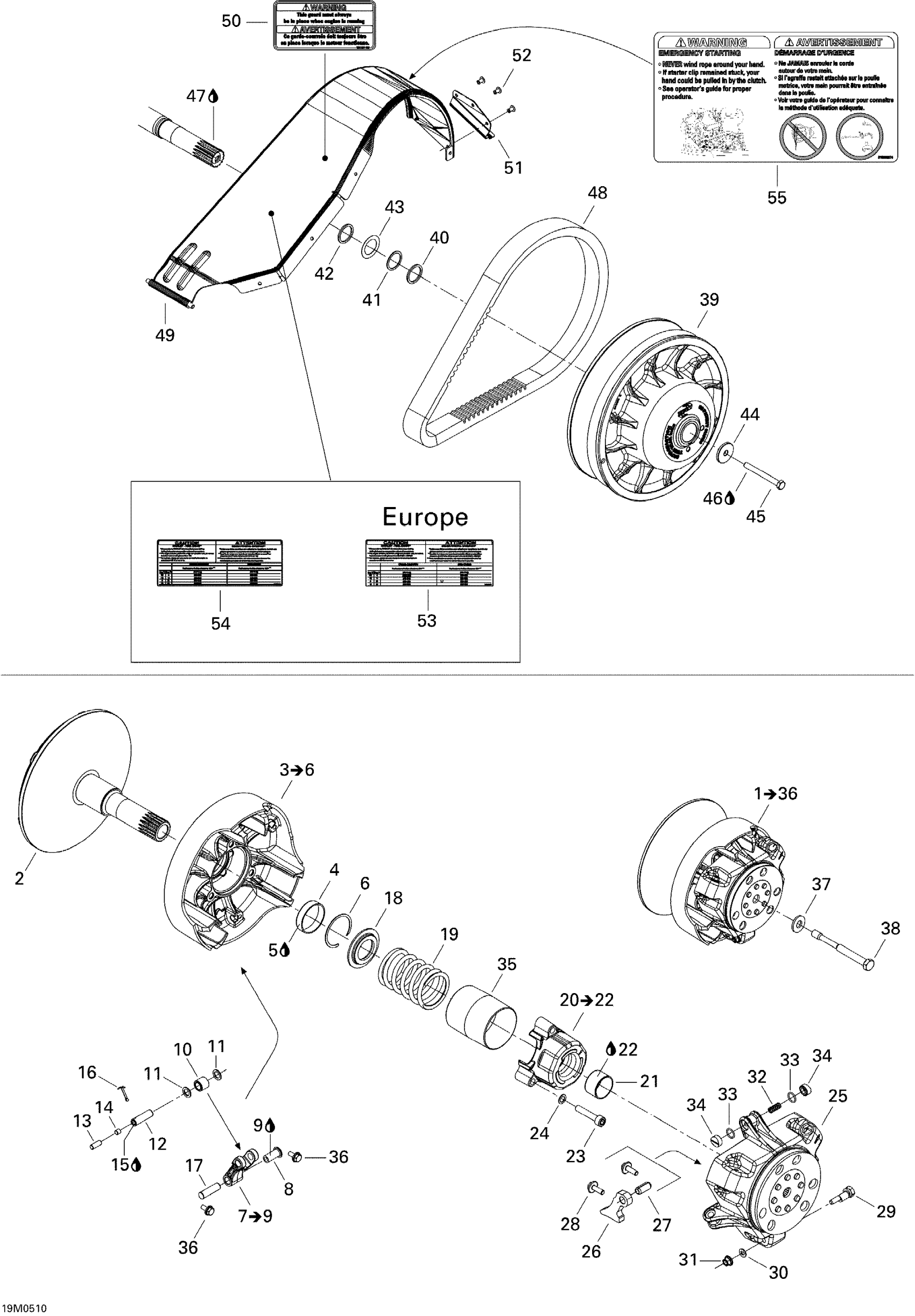

Ski-Doo MX Z X 440 Racing, 2005 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXED FLANGE ASS'Y - Call your local BRP dealership

417222742

Unavailable

3

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 3 to 6

417222620

Unavailable

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$26.99

10

Roller

417222947

$21.99

11

Stopper Washer

417004302

$15.90

12

Threaded Pin, M6 | High Altitude

417222595

$23.49

13

Socket Set Screw M6 X 1.0 X 16

250000410

$4.09

14

SOCKET SET SCREW M6 X 12 - Call your local BRP dealership

250000407

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Cotter Pin

250400060

$2.00

17

Lever Axle

417223164

$4.49

18

Spring Seat

417222312

$9.59

19

SPRING, WHITE - Call your local BRP dealership

417222004

Unavailable

20

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

21

Bushing

417009204

$17.49

22

Loctite 609, 10 ml

413703100

$26.99

23

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

24

Lock Washer 8 mm

250200009

$2.11

25

Governor Cup Ass'y

417222622

Unavailable

26

Ramp 435

417222814

Unavailable

27

Spring Pin M10 X 22

250400050

$2.99

28

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

29

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

30

Washer

417005600

$4.09

31

Hex. Flange Nut M6

233061414

$1.68

32

Spring

417005700

$4.76

33

O-Ring

732401030

$0.98

34

Slider Shoe This part replaces 420460045.

417223021

$5.90

35

Guard

417009205

$21.99

36

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

37

Spring Washer 14 mm

250200006

$6.99

38

Drive Pulley Bolt

417120000

$65.49

39

Driven Pulley Ass'y

417126938

Unavailable

40

Spacer

417300252

$5.49

41

Spacer

417300265

$2.29

42

Spacer

504149100

$12.99

43

Shim

504112000

$8.59

44

Strength Washer

517302322

$12.63

45

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

46

Loctite 243, 10 ml

293800060

$21.49

47

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

48

Drive Belt

417300534

$219.99

49

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

50

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

51

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

52

Avex Rivet

390909200

$0.30

53

Lebel | Europe

516002741

Unavailable

54

LEBEL - Call your local BRP dealership

516002838

Unavailable

55

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable
