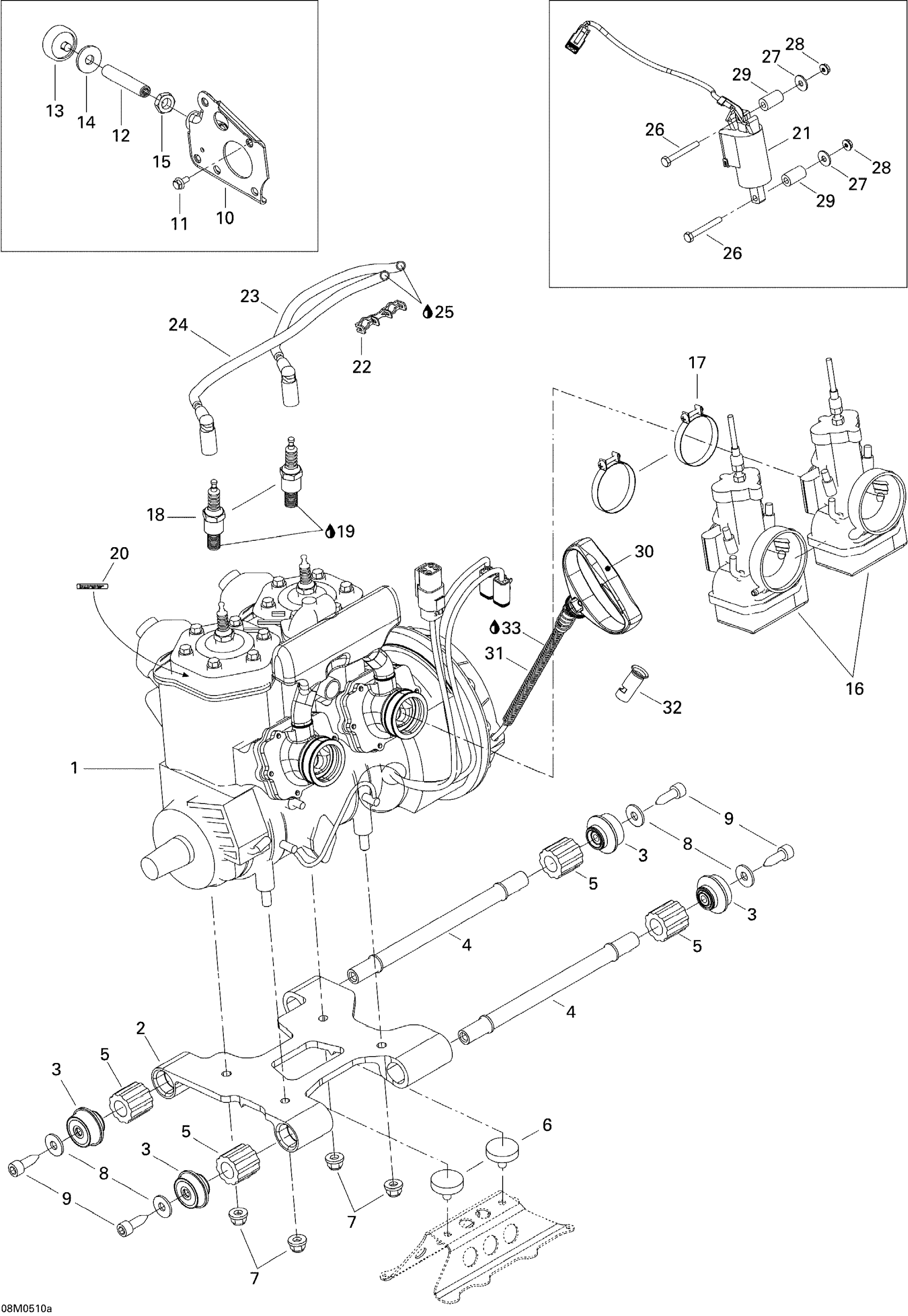

Ski-Doo MX Z X 440 Racing, 2005 01- Engine 1 Diagram

Engine-453

400409434

Unavailable

Engine-453 | Europe

400409435

Unavailable

Engine Support

512059754

Unavailable

RUBBER MOUNT - Call your local BRP dealership

512059777

Unavailable

THREADED ROD - Call your local BRP dealership

512059776

Unavailable

Rubber Damper

512059781

Unavailable

Stopper

512059738

$23.99

Hex. Flange Elastic Nut M10

233201414

$1.58

Flat Washer M10 | 4X4

250200014

$1.49

Nylon Socket Screw M10 X 50

250000131

Unavailable

PLATE - Call your local BRP dealership

512059840

Unavailable

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

STOPPER - Call your local BRP dealership

512059741

Unavailable

WASHER - Call your local BRP dealership

512059775

Unavailable

Hex. Jam Nut M14

232170411

$1.48

Carburator Tmx-34

403138765

Unavailable

Carb-Tmx-34 | Europe

403138771

Unavailable

Gemi Clamp | Not Shown

512059834

$11.60

Spark Plug NGK BR9ECS-5

512059552

$10.59

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Spark Plug Decal

516000986

Unavailable

IGNITION COIL - Call your local BRP dealership | Includes 23 to 26 / 500 SS & 600 H.O.

512059564

Unavailable

Plastic Clip, Spark Plug Wire

410914600

$5.61

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

$57.99

Cable Ass’y, 375 mm

512059696

$80.99

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Hex. Screw M6 X 60

207066044

$0.67

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561414

$0.55

Spacer

517203200

$16.18

Starter Grip

572084400

$14.83

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

TUBE - Call your local BRP dealership

512059536

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable
