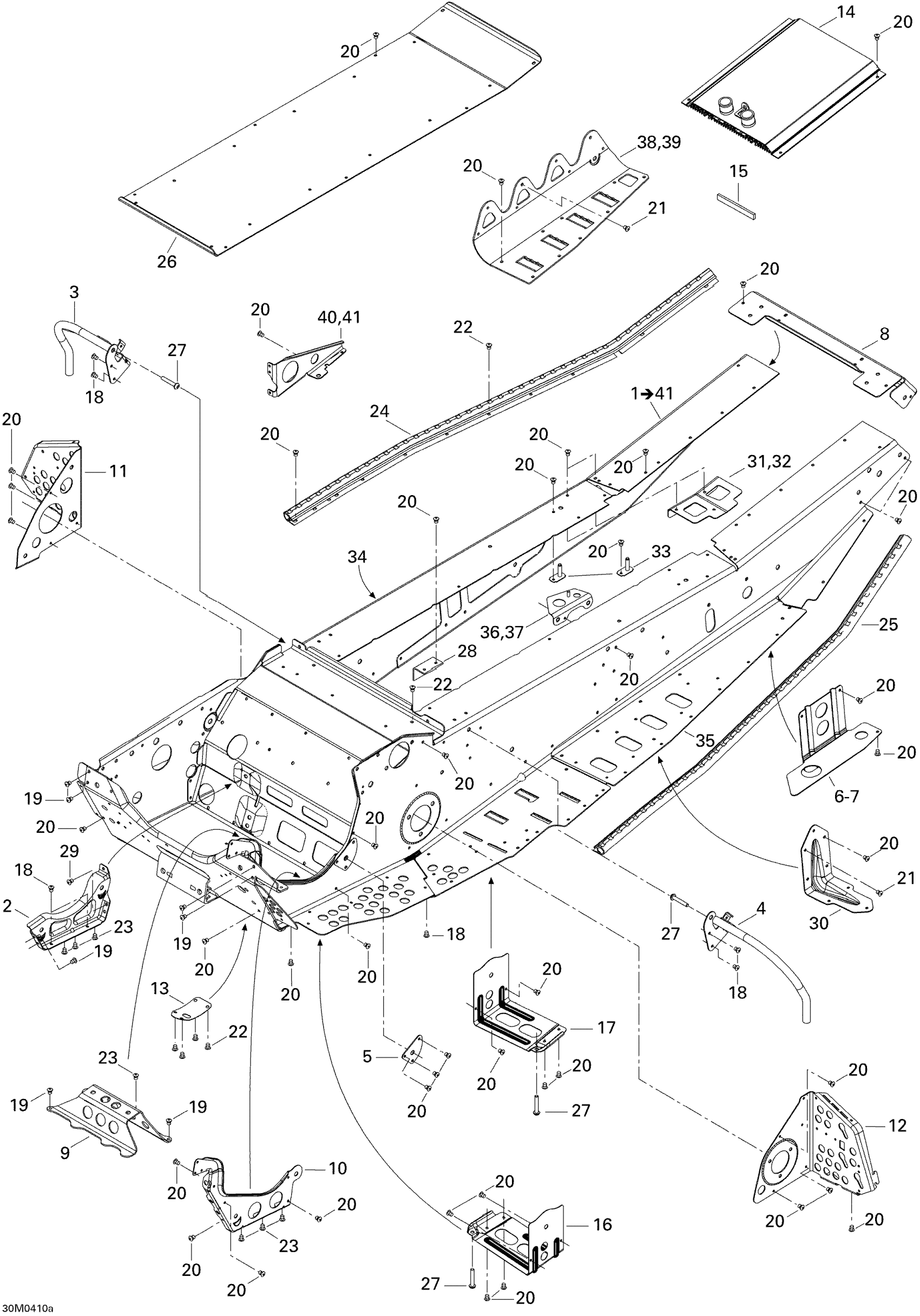

Ski-Doo MX Z X 440 Racing, 2004 09- Frame Diagram
#
Description
Price
1
Frame | INCLUDES 1 TO 41
415128813
Unavailable
2
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
3
RH TOE HOLD SUPPORT - Call your local BRP dealership
518324162
Unavailable
4
LH TOE HOLD SUPPORT - Call your local BRP dealership
518324163
Unavailable
5
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
6
RH Suspension Bracket, Black
518322666
Unavailable
7
LH Suspension Bracket, Black
518322667
Unavailable
8
Rear Cap
518323835
Unavailable
9
CENTER CROSS LINK - Call your local BRP dealership
518324093
Unavailable
10
INNER REINFORCEMENT, BLACK - Call your local BRP dealership
518323241
Unavailable
11
RH Footrest Reinforcement
518323805
Unavailable
12
LH Footrest Reinforcement
518323765
Unavailable
13
PLATE - Call your local BRP dealership
518324169
Unavailable
14
Rear Radiator
518324218
Unavailable
16
RH Footrest Reinforcement, Black
518323499
Unavailable
17
LH Footrest Reinforcement, Black
518323502
Unavailable
23
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
24
RH Roller
518323310
Unavailable
25
LH Roller
518323311
Unavailable
26
Center Plate
518323323
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Tunnel Reinforcement
518323185
Unavailable
30
CENTER REINFORCEMENT - Call your local BRP dealership
518323578
Unavailable
31
RH Frame Reinforcement
518323919
Unavailable
32
LH Frame Reinforcement
518323920
Unavailable
33
Tank Bracket
518322791
Unavailable
34
RH Footrest
518324094
Unavailable
35
LH Footrest
518324095
Unavailable
36
RH Frame Reinforcement, Black
518323336
Unavailable
37
LH Frame Reinforcement, Black
518323337
Unavailable
38
RH Tunnel Liner
518323334
Unavailable
39
LH Tunnel Liner
518323335
Unavailable
40
RH BRACKET - Call your local BRP dealership
518323187
Unavailable
41
LH BRACKET - Call your local BRP dealership
518323188
Unavailable
