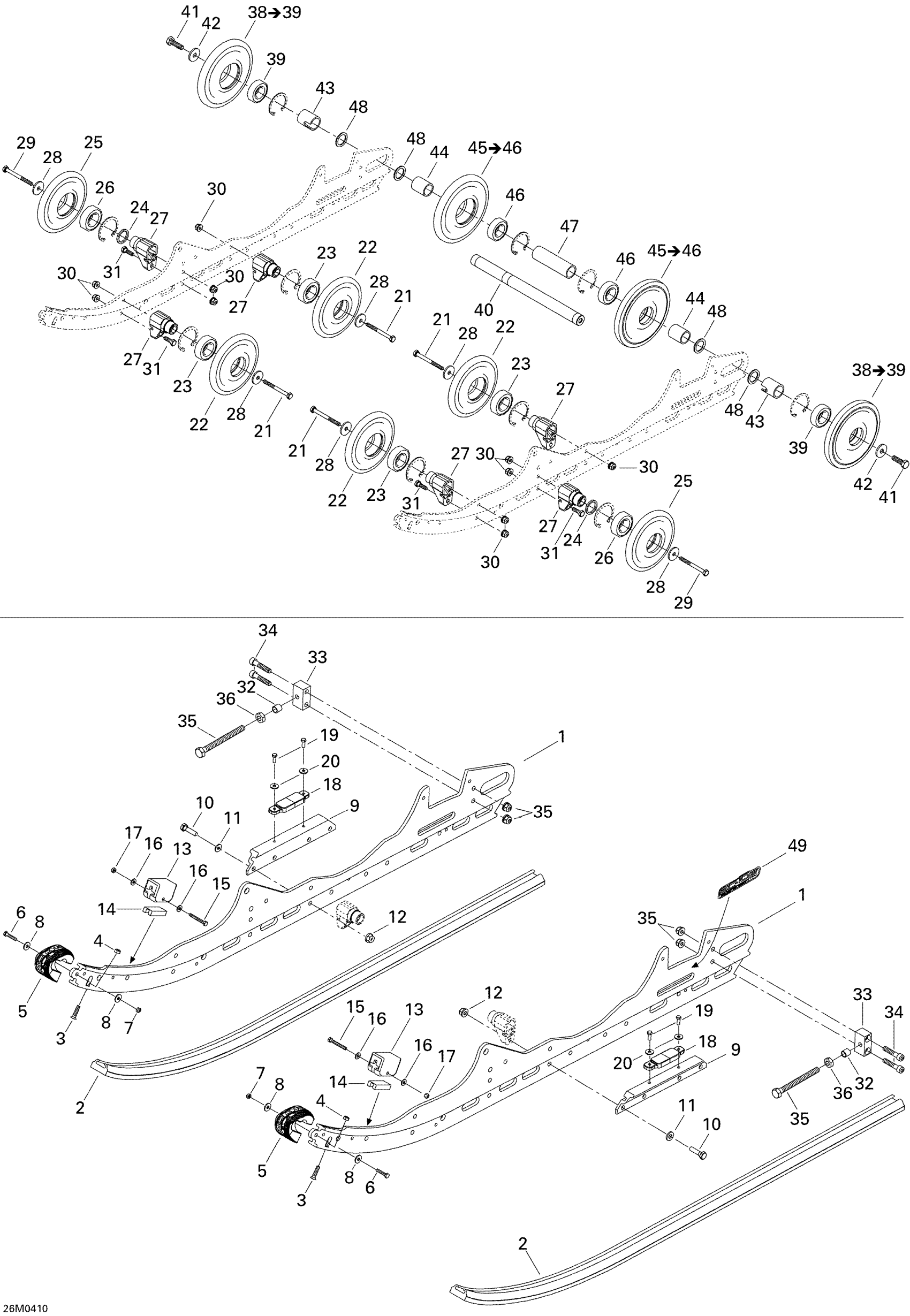

Ski-Doo MX Z X 440 Racing, 2004 Rear Suspension Diagram

#

Description
Price

1

Runner

503190440

Unavailable

2

Slide Shoe

605355362

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

REINFORCEMENT RAIL - Call your local BRP dealership

503190261

Unavailable

10

Hex. Screw M8 X 30

207183044

$1.15

11

Washer

503189157

$3.28

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Rubber Stopper

570063000

Unavailable

14

Reinforcement Stopper

572084800

$12.99

15

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

16

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

17

Elastic Stop Nut M5

232551414

$0.87

18

Rail Stopper

503190263

$7.69

19

HEX. SCREW M5 X 14, SCOTCH GRIP - Call your local BRP dealership

207351444

Unavailable

20

Washer | DS 650 X

391301600

$0.48

21

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

22

Wheel 135

503191029

$33.99

23

Ball Bearing

293350115

$12.11

24

WASHER - Call your local BRP dealership

503173700

Unavailable

25

Wheel 135

503191029

$33.99

26

Ball Bearing

293350115

$12.11

27

SUPPORT - Call your local BRP dealership

503190389

Unavailable

28

Washer

503183100

$3.17

29

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

30

Hex. Flange Elastic Nut M8

233281414

$1.47

31

Hex. Screw M8 X 25

207182544

$0.90

32

TENSIONER SPACER - Call your local BRP dealership

503168500

Unavailable

33

Tensioner

503189211

Unavailable

34

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

35

Hex. Flange Elastic Nut M8

233281414

$1.47

36

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

37

Hex. Nut M10 X 1.5

232006414

$1.37

38

Wheel 165" | Includes 670 to 670b

503194127

$51.99

39

Ball Bearing

293350115

$12.11

40

Rear Axle

503167900

$139.99

41

Hex. Screw With Nylon

250000019

$1.69

42

Washer

503183300

$5.82

43

Outer Spacer

503189809

$18.89

44

Inner Spacer

503182900

$12.58

45

Thin Wheel 165

503189478

$51.99

46

Ball Bearing

293350115

$12.11

47

Center Spacer

503156000

$12.01

48

Washer

503180400

$3.49

49

Suspension Decal

516001248

Unavailable
