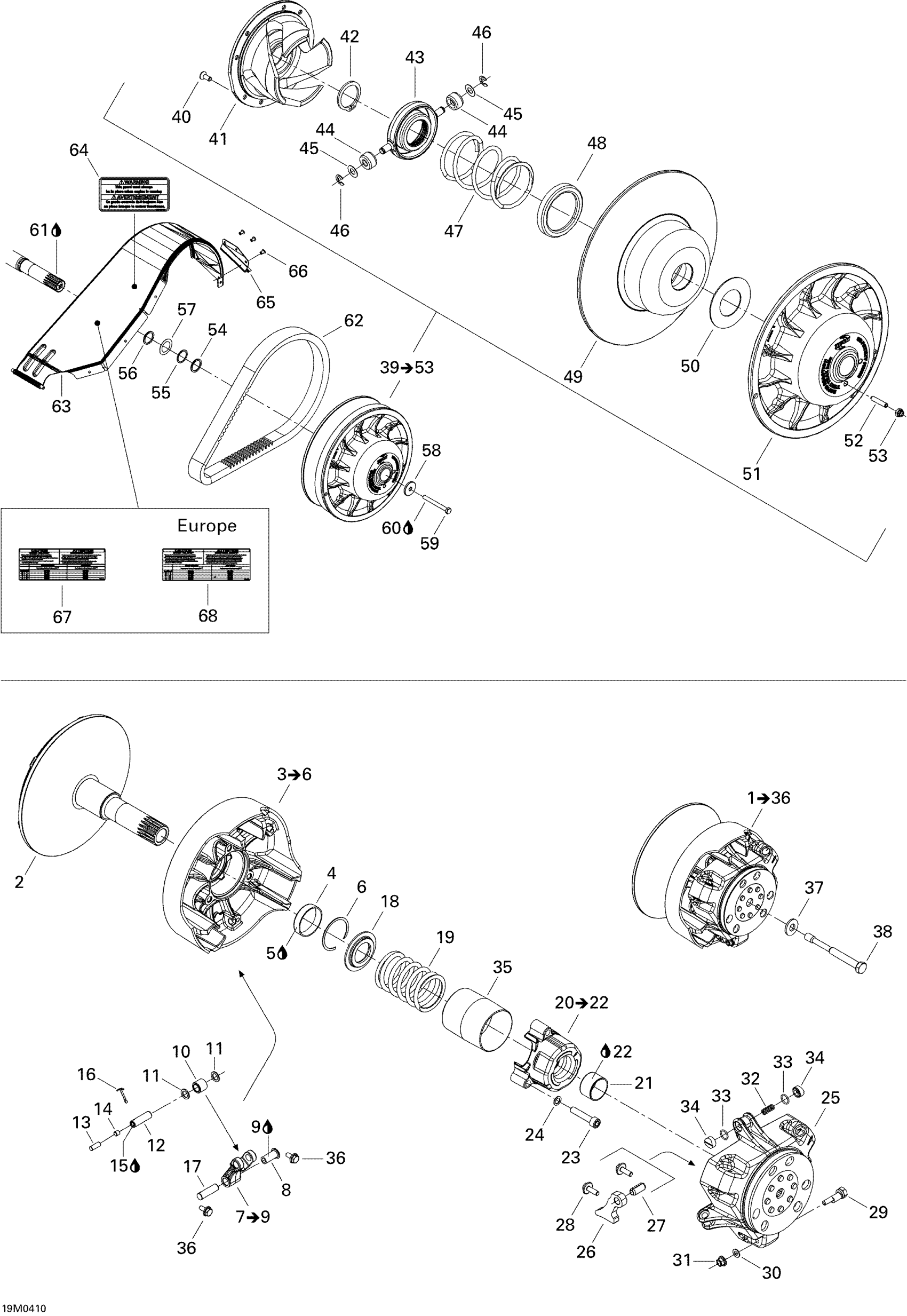

Ski-Doo MX Z X 440 Racing, 2004 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222617

Unavailable

3

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 3 to 6

417222620

Unavailable

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$26.99

10

Roller

417222947

$21.99

11

Stopper Washer

417004302

$15.90

12

Threaded Pin

417222477

$25.99

13

Socket Set Screw M6 X 1.0 X 16

250000410

$4.09

14

Socket Set Screw M6 X 6

206260699

$3.70

15

Loctite 243, 10 ml

293800060

$21.49

16

Cotter Pin

250400060

$2.00

17

Lever Axle

417223164

$4.49

18

Spring Seat

417222312

$9.59

19

SPRING, WHITE - Call your local BRP dealership

417222004

Unavailable

20

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

21

Bushing

417009204

$17.49

22

Loctite 609, 10 ml

413703100

$26.99

23

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

24

Lock Washer 8 mm

250200009

$2.11

25

Governor Cup Ass'y

417222622

Unavailable

26

RAMP 427 - Call your local BRP dealership

417222676

Unavailable

27

Spring Pin M10 X 22

250400050

$2.99

28

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

29

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

30

Washer

417005600

$4.09

31

Hex. Flange Nut M6

233061414

$1.68

32

Spring

417005700

$4.76

33

O-Ring

732401030

$0.98

34

Slider Shoe This part replaces 420460045.

417223021

$5.90

35

Guard

417009205

$21.99

36

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

37

Spring Washer 14 mm

250200006

$6.99

38

Drive Pulley Bolt

417120000

$65.49

39

Driven Pulley Ass'y | INCLUDES 39 TO 53

417126859

Unavailable

40

Torx Cap Screw 1/4-28 X .625

415128849

Unavailable

41

Cam 44

415128850

Unavailable

42

Circlip

415128851

Unavailable

43

Croisillon 38T

415128852

Unavailable

44

Roller

415128853

Unavailable

45

Thrust Washer

415128854

Unavailable

46

Circlip

415128855

Unavailable

47

Compression Spring

415128856

Unavailable

48

Thrust Washer

415128857

Unavailable

49

Slid. Flange Assy

415128858

Unavailable

50

Thrust Washer

415128859

Unavailable

51

Fix Flange

415128860

Unavailable

52

Screw

415128861

Unavailable

53

Hexagonal Nut

415128862

Unavailable

54

Spacer

417300252

$5.49

55

Spacer

417300265

$2.29

56

Spacer

504149100

$12.99

57

Shim

504112000

$8.59

58

Strength Washer

517302322

$12.63

59

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

60

Loctite 243, 10 ml

293800060

$21.49

61

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

62

Drive Belt

417300534

$219.99

63

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

64

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

65

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

66

Pop Rivet 3/16"

390402200

$0.35

67

Warning Decal, Carburator | C/U

516002122

Unavailable

68

Warning Decal, Carburator | EUR

516002321

Unavailable
