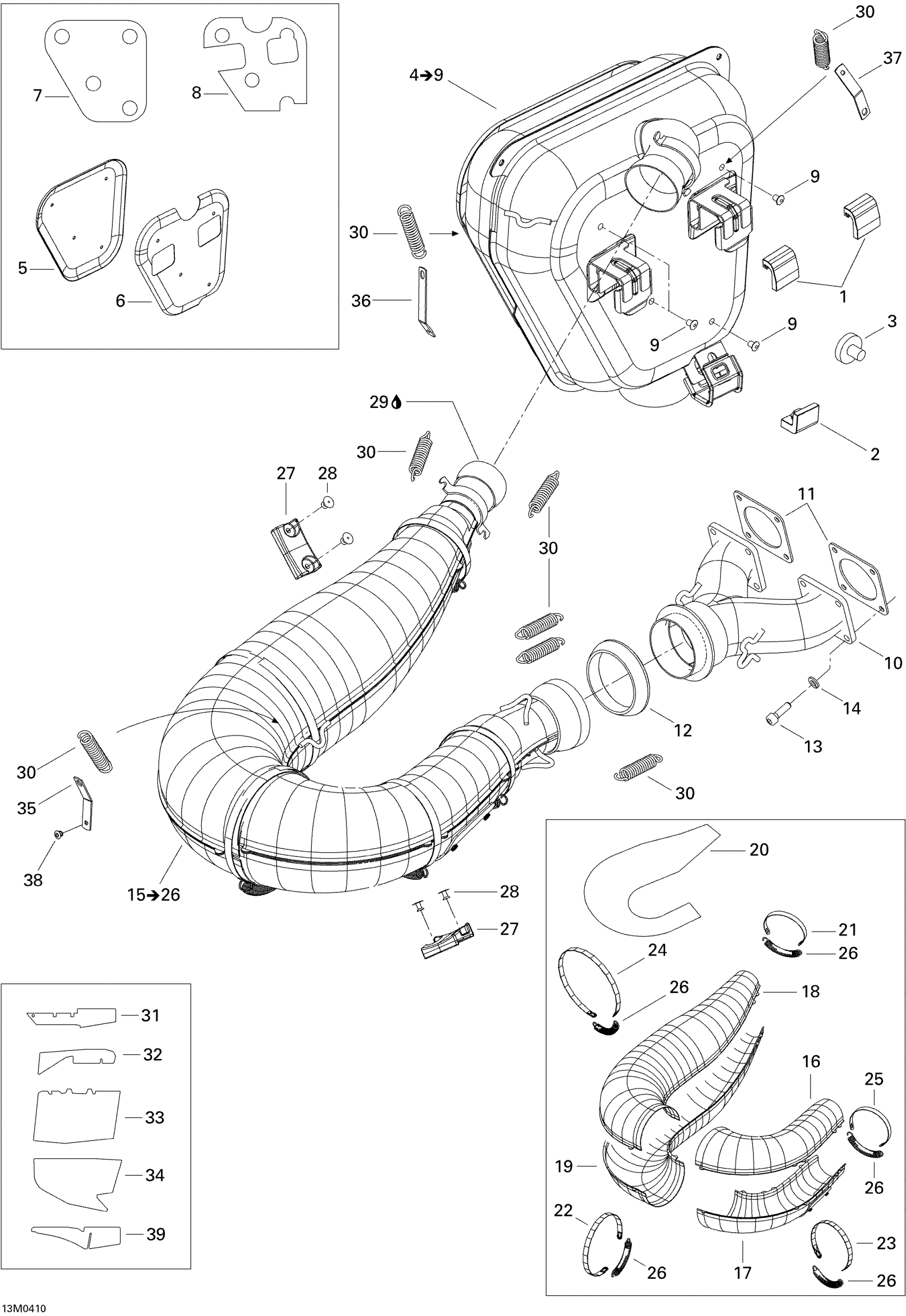

Ski-Doo MX Z X 440 Racing, 2004 01- Exhaust System Diagram
#
Description
Price
1
UPPER STOPPER - Call your local BRP dealership
514053372
Unavailable
2
Lower Stopper
514053373
Unavailable
3
Exhaust Grommet
514053394
Unavailable
4
Muffler Assy
514053868
Unavailable
5
RH HEAT SHIELD - Call your local BRP dealership
514053139
Unavailable
6
LH Heat Shield
514053883
Unavailable
7
RH INSULATING WOOL - Call your local BRP dealership
514053141
Unavailable
8
LH INSULATING WOOL - Call your local BRP dealership
514053884
Unavailable
10
MANIFOLD - Call your local BRP dealership
420973557
Unavailable
15
440X Calibrated Tube Ass'y
514053873
Unavailable
16
Upper Front Half-Enveloppe
514053151
Unavailable
17
Lower Inferior Half-Enveloppe Ass'y
514053152
Unavailable
18
Upper Rear Half-Enveloppe
514053475
Unavailable
19
Lower Rear Half-Enveloppe Ass'y
514053476
Unavailable
20
Insulating Wool
514053558
Unavailable
21
RETAINING STRAP - Call your local BRP dealership
514053437
Unavailable
22
RETAINING STRAP - Call your local BRP dealership
514053534
Unavailable
24
RETAINING STRAP - Call your local BRP dealership
514053605
Unavailable
25
RETAINING STRAP - Call your local BRP dealership
514053494
Unavailable
27
BUMPER - Call your local BRP dealership
514053352
Unavailable
31
REFLECTION SHEET - Call your local BRP dealership
514053702
Unavailable
32
Reflective Sheet
514053622
Unavailable
33
Reflective Sheet
514053561
Unavailable
34
REFLECTIVE SHEET - Call your local BRP dealership
514053562
Unavailable
35
SPRING BRACKET - Call your local BRP dealership
514049700
Unavailable
39
REFLECTIVE SHEET - Call your local BRP dealership
514053673
Unavailable
