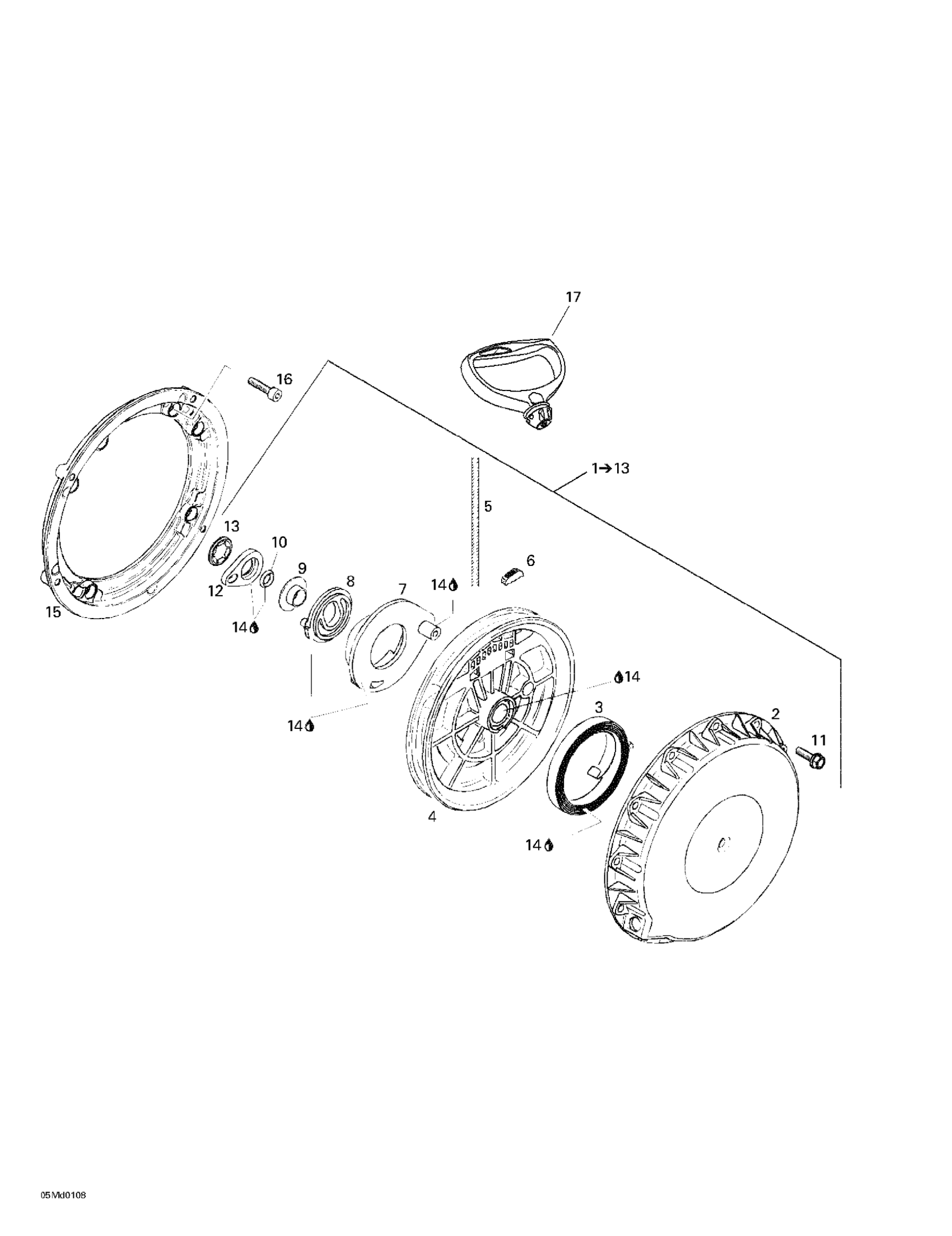

Ski-Doo MX Z X 440 LC, 2001 Rewind Starter Diagram
#
Description
Price
4
Rope Sheave
420852285
Unavailable
5
Was 412500100 Rope-Starter
219704403
Unavailable
6
Key Clamp
420852070
Unavailable
8
PAWL LOCK - Call your local BRP dealership
420852305
Unavailable
9
Stage Sleeve
420847926
Unavailable
10
O-Ring
420250400
Unavailable
11
Torx Flange Screw M6 X 20
420441386
Unavailable
12
Lock Ring
420852520
Unavailable
13
Locking Element
420845560
Unavailable
14
Molykote PG 54, 10 g
420899763
Unavailable
16
Socket Head Screw M6 x 16
420241237
Unavailable
17
Starter Grip
572084400
Unavailable
