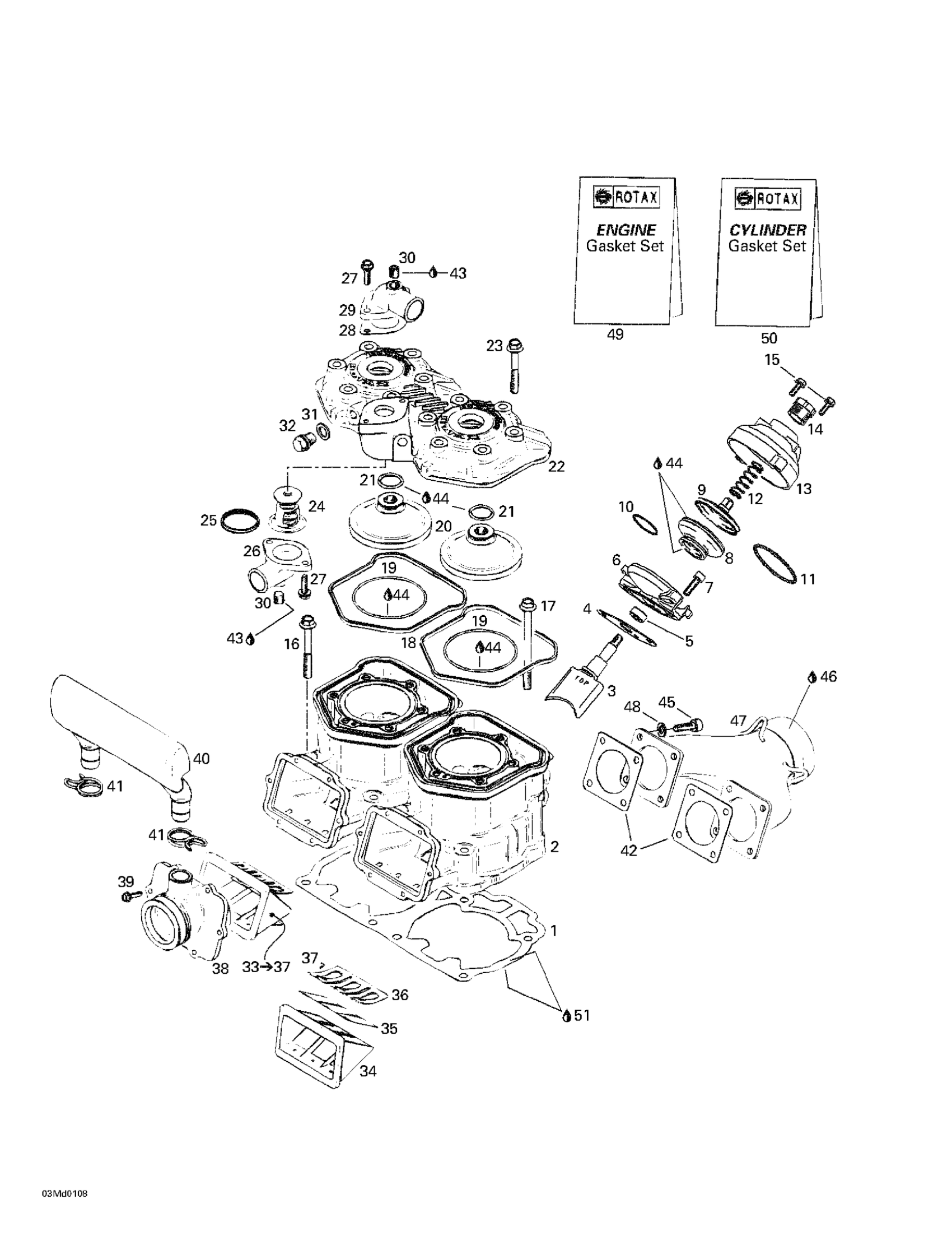

Ski-Doo MX Z X 440 LC, 2001 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Gasket 0.8 mm

420431423

$25.35

Gasket 0.7 mm

420431422

$26.89

Gasket 0.6 mm

420431421

$19.20

Gasket 0.5 mm

420431420

$23.82

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

DOUBLE GASKET 0.3 MM - Call your local BRP dealership

420931580

Unavailable

2

NICASIL CYLINDER - Call your local BRP dealership

420923720

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854480

Unavailable

4

Gasket

420250239

$6.62

5

Oil Seal | Included in gasket kit

420950732

Unavailable

6

Valve Housing

420854266

$93.82

7

Socket Head Screw M6 X 20

205062044

$1.07

8

Exhaust Bellows

420260723

$35.07

9

Exhaust Valve This part replaces 290253257.

420854449

$29.87

10

Hose Spring This part replaces 420838253.

420838255

$6.11

11

Hose Spring This part replaces 420239048.

420939281

Unavailable

12

SPRING - Call your local BRP dealership

420239948

Unavailable

13

Valve Cover

420911552

$37.66

14

Adjuster Screw

420241221

Unavailable

15

Hex. Tapping Screw M5 X 20

420841555

$1.68

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

Unavailable

17

SCREW HEX. M8 X 100 - Call your local BRP dealership

420940129

Unavailable

18

SQUARE RING - Call your local BRP dealership

420931595

Unavailable

19

O-Ring

420950490

Unavailable

20

COMBUSTION CHAMBER - Call your local BRP dealership | Europe

420923877

Unavailable

21

O-Ring

420430373

Unavailable

22

Cylinder Head Cover (Silver)

420923731

Unavailable

23

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

24

Thermostat This part replaces 414834100.

420922519

Unavailable

25

SEALING RING - Call your local BRP dealership

420931270

Unavailable

26

BENT OUTLET SOCKET - Call your local BRP dealership

420922061

Unavailable

27

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

Unavailable

28

Gasket

420850338

$10.28

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

$40.74

30

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

31

Aluminum Sealing Ring

420250016

Unavailable

32

Plug screw

420841924

Unavailable

33

Reed Valve Ass'y | Includes 33 - 37.

420924640

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Reed Pedal

420924630

Unavailable

36

Reed Pedal Stop

420924635

Unavailable

37

Phillips Screw M3 X 5

420941215

$1.42

38

Carburetor Socket

420867865

Unavailable

39

Taptite Screw M5 X 16

420941928

Unavailable

40

Intake Resonator

420867815

Unavailable

41

CLAMP - Call your local BRP dealership

420851440

Unavailable

42

Gasket

420850552

$7.92

43

Loctite 243, 10 ml

293800060

$20.77

44

Dow Corning 111, 150 g

413707000

$57.82

45

Socket Head Screw M6 X 20

205062044

$1.07

46

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

47

Exhaust Manifold

420973550

Unavailable

48

Lock Washer M6, Black

234161471

$0.52

49

Engine Gasket Set

420888632

Unavailable

50

Cylinder Gasket Set

420888636

Unavailable

51

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable
