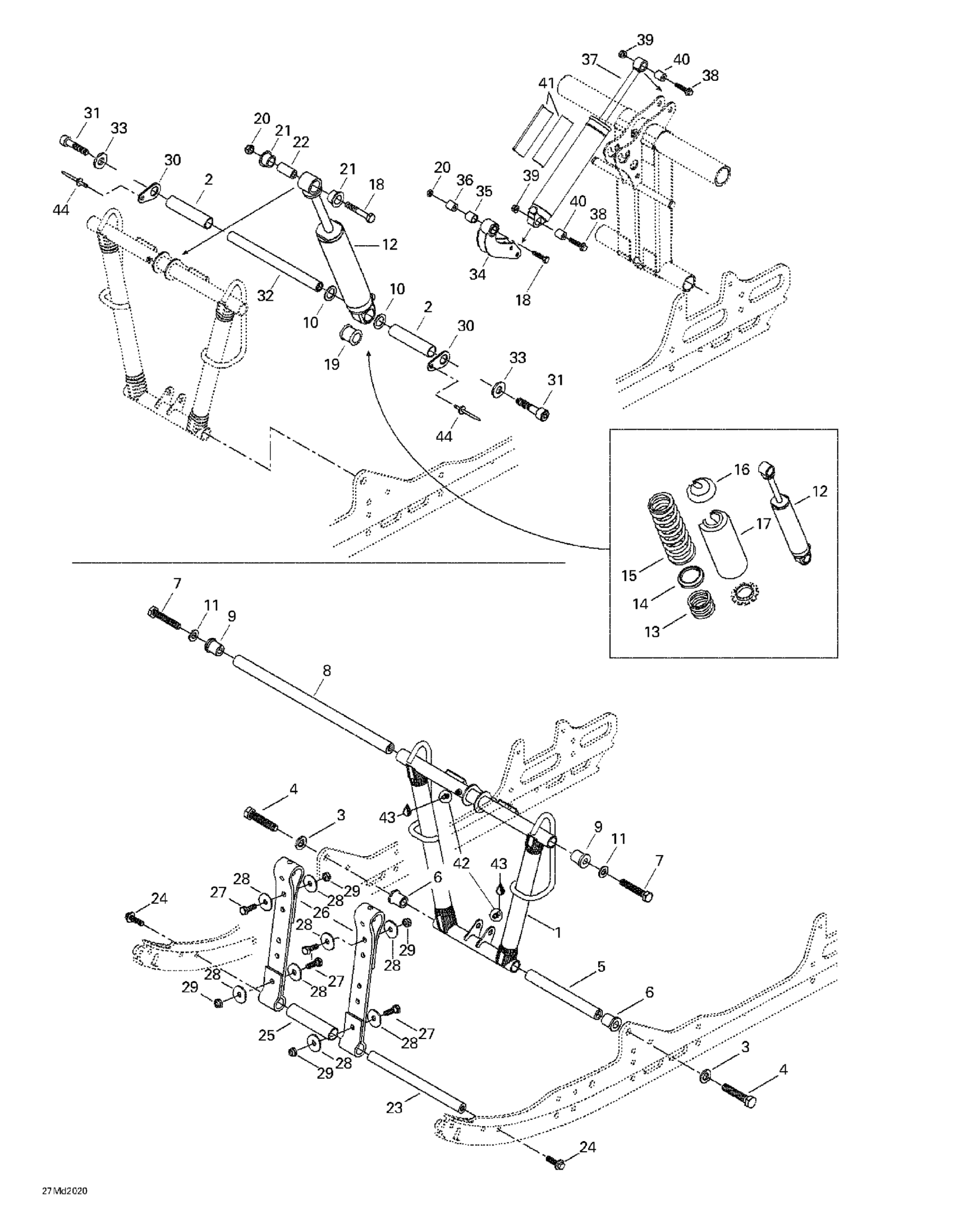

Ski-Doo MX Z X 440 LC, 2000 08- Front Arm Diagram

#

Description
Price

1

Front Arm

503189292

Unavailable

2

SPACER - Call your local BRP dealership

503189274

Unavailable

3

Washer

503189276

$3.28

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

5

SHAFT - Call your local BRP dealership

503189313

Unavailable

6

CUSHION - Call your local BRP dealership

503189323

Unavailable

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Bushing

503189324

$14.15

10

Washer

503189273

$3.28

11

Washer

732900049

$0.58

12

Center Shock (Europe) | Europe.

503189279

Unavailable

13

Spring

415090500

Unavailable

14

Spring Spacer

503182200

Unavailable

15

Spring (EUROPE)

503189090

Unavailable

16

Spring Support

505070539

Unavailable

17

Protector

503193663

$37.99

18

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

19

Bushing

503189271

$13.99

20

Elastic Locking Nut M10 X 1.5

233601416

$1.69

21

Urethane Bushing

503189117

$8.19

22

Bushing | Includes 240d to 240d1

503189282

$4.34

23

Axle

503151600

$18.49

24

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

25

Spacer

503189265

$4.99

26

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

27

Hex. Screw M8 X 25

207182544

$0.90

28

Flat Washer

224081301

$0.88

29

Hex. Elastic Stop Nut M8

232581414

$0.56

30

Plate

503189506

Unavailable

31

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

32

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

33

Washer

503189276

$3.28

34

Rocker

503189303

Unavailable

35

Rocker Axle

503189388

Unavailable

36

Cushion

503189410

Unavailable

37

Rear Shock (EUROPE) | Europe.

503189280

Unavailable

38

Hex. Flange Screw M8 X 40

207684044

$1.48

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Bushing

414936000

$13.99

41

Shock Decal

516000183

Unavailable

42

Grease Fitting

408200700

$3.49

43

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

44

Pop Rivet 3/16"

390402300

$0.75
