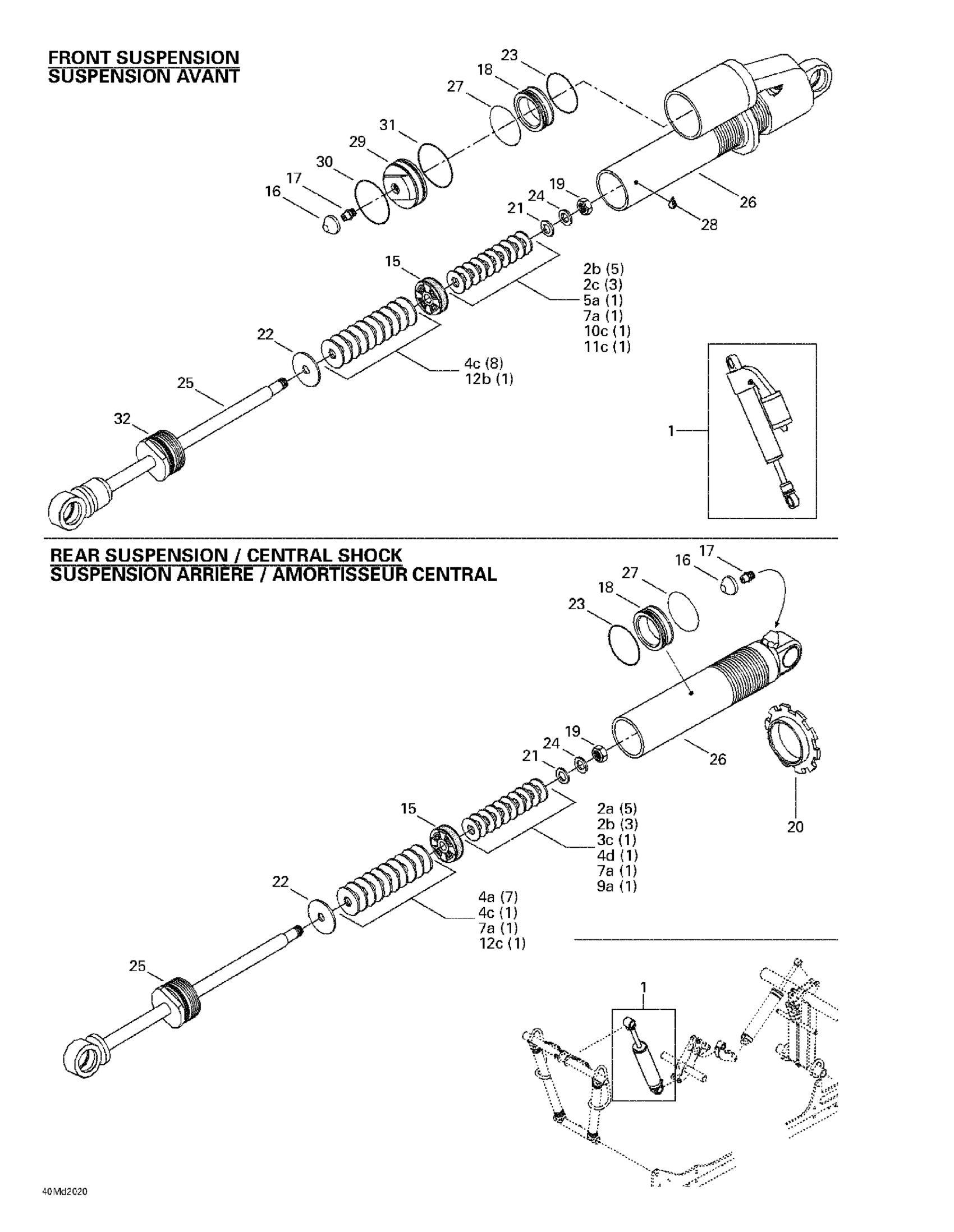

Ski-Doo MX Z X 440 LC, 2000 07- Front Take Apart Shocks Diagram
#
1
RH Shock
505070311
Unavailable
LH Shock
505070312
Unavailable
Center Shock (Europe) | Europe.
503189279
Unavailable
2A
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
2B
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
2C
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
3A
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
3B
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
3C
Not Available As Spare Part - Friction Washer
Unavailable
4A
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
4B
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
4C
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
4D
Not Available As Spare Part - Friction Washer
Unavailable
5A
Leaf Valve Ø24 x 0.114 (mm) | MX Z X 440.
414888341
Unavailable
6A
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
6B
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
7A
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
8A
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
8B
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
8C
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
9A
Not Available As Spare Part - Friction Washer
Unavailable
10A
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
10B
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
10C
Not Available As Spare Part - Friction Washer
Unavailable
11A
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
11B
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
11C
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
11D
Leaf Valve Ø16 x 0.114 (mm) | MX Z X 440.
415093823
Unavailable
12A
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
12B
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
12C
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
12D
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
13A
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
14A
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
14B
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
14C
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
14D
Leaf Valve Ø12 x 0.114 (mm) | MX Z X 440.
415093824
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
16
Air Valve Cap | MX Z X 440.
503189307
Unavailable
17
AIR VALVE - Call your local BRP dealership
414888314
Unavailable
18
FREE PISTON - Call your local BRP dealership
415093812
Unavailable
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe
414888316
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
29
Guide
415093808
Unavailable
30
STOP RING - Call your local BRP dealership
415093805
Unavailable
32
Sealing Cap
415093819
Unavailable
