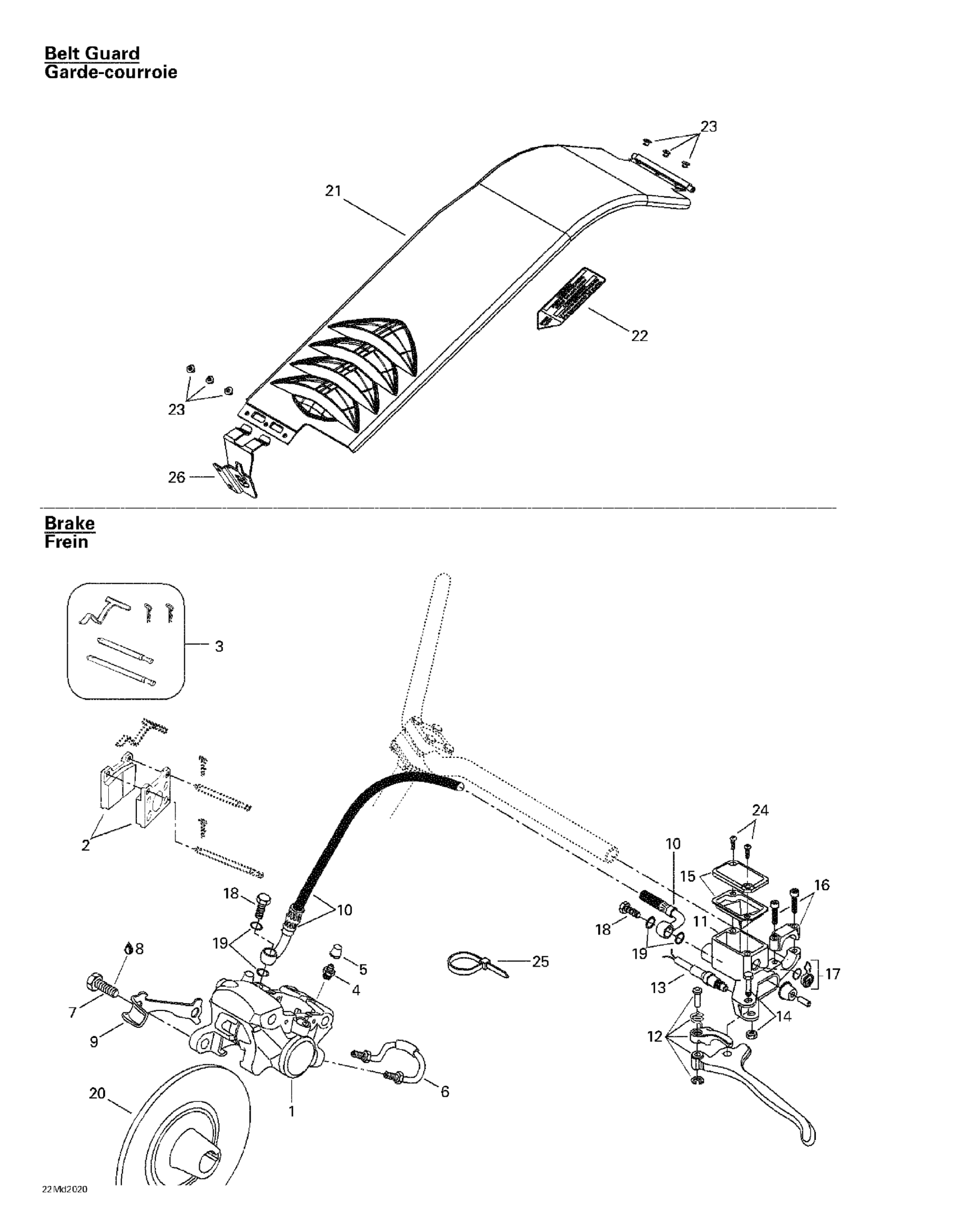

Ski-Doo MX Z X 440 LC, 2000 06- Hydraulic Brake And Belt Guard Diagram

Caliper (X) | MX Z 600. MX Z 700. MX Z 800.

507032204

Unavailable

Brake Pad Kit

415084600

$79.49

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

Hex. Screw M10 X 35

207103544

$1.58

Loctite 243, 10 ml

293800060

$21.49

Locking Tab

507029900

Unavailable

HOSE (RACING) - Call your local BRP dealership | MX-Z 700.

415064600

Unavailable

Master Cylinder | MX Z 500 SB (Black). MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

507032279

Unavailable

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

Microswitch

507032366

$98.99

Pin Ass'y

415030000

$19.99

Cap

415029900

$41.49

Clamp And Screw Kit

507032477

$23.99

WINDOW - Call your local BRP dealership

414990600

Unavailable

Banjo Bolt

414920500

$8.68

Washer

414920600

$1.90

Brake Disk Ass'y

507030900

Unavailable

Belt Guard Ass'y | Includes 21 - 23.

417300072

Unavailable

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

Pop Rivet 3/16"

390402200

$0.35

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

Tie-Rap 180 mm

414115200

$0.11

Bracket

417300001

Unavailable
