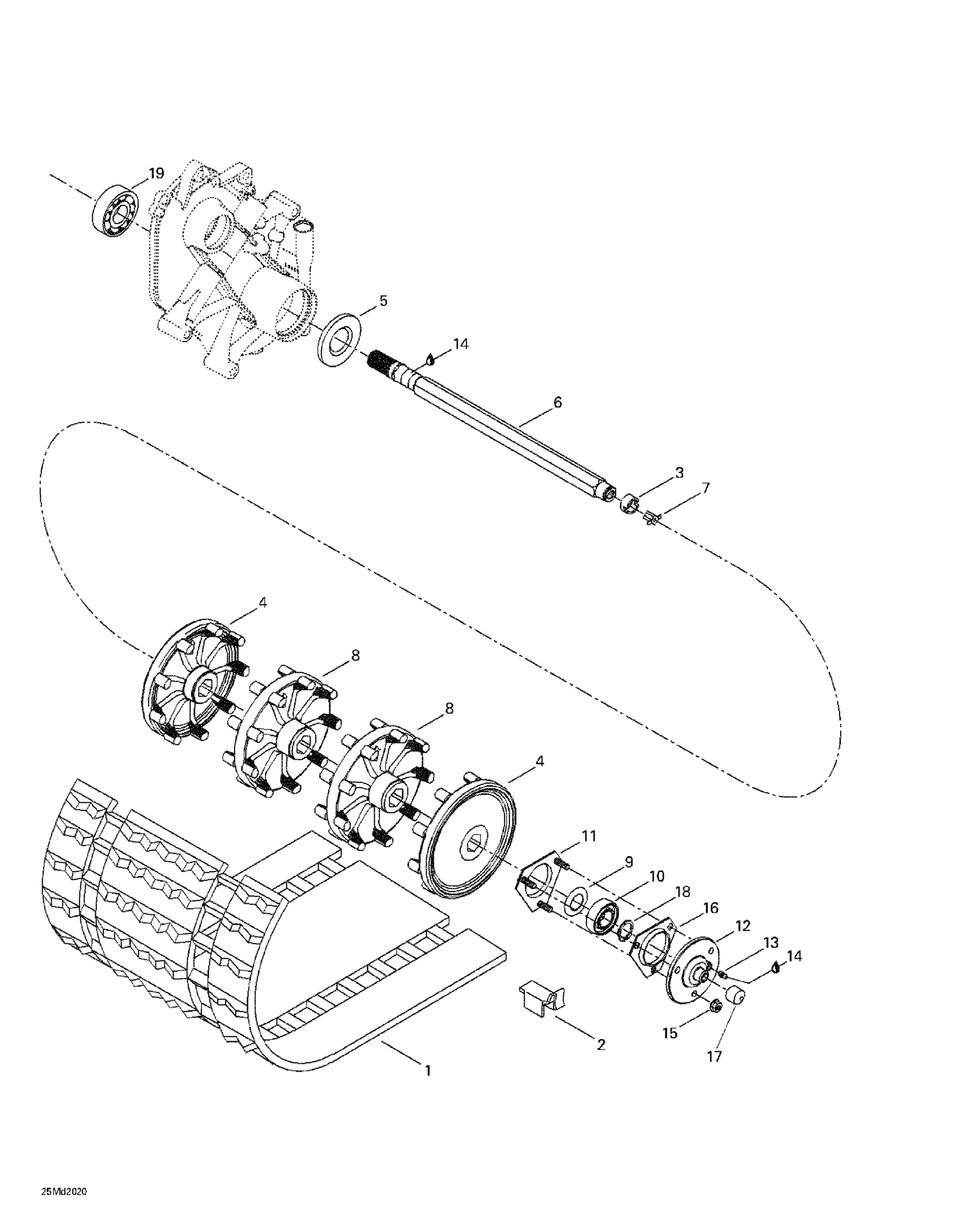

Ski-Doo MX Z X 440 LC, 2000 05- Drive Axle And Track Diagram

#

Description
Price

1

Chenille 15X121 *Track 15X121X1.25 Rip S | Includes 8 to 10 This part replaces 504152558.

C9968H

$759.99

2

Track Guide | Track Width 16''

415129528

$3.29

3

Adaptor

572097500

Unavailable

4

9-Tooth Half Sprocket

504151834

Unavailable

5

Oil Seal Ass'y

504151918

$20.49

6

DRIVE AXLE - Call your local BRP dealership

504151792

Unavailable

7

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

8

9-Tooth Sprocket

504151803

Unavailable

9

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

10

Ball Bearing

293350060

$38.49

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

Flange, Speedo Drive Insert

504151836

Unavailable

13

Grease Fitting

408200700

$3.49

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

FLANGE - Call your local BRP dealership

501025000

Unavailable

17

Cap

504151825

Unavailable

18

CIRCLIP - Call your local BRP dealership

371910200

$2.09

19

Ball Bearing

504152005

$46.49
