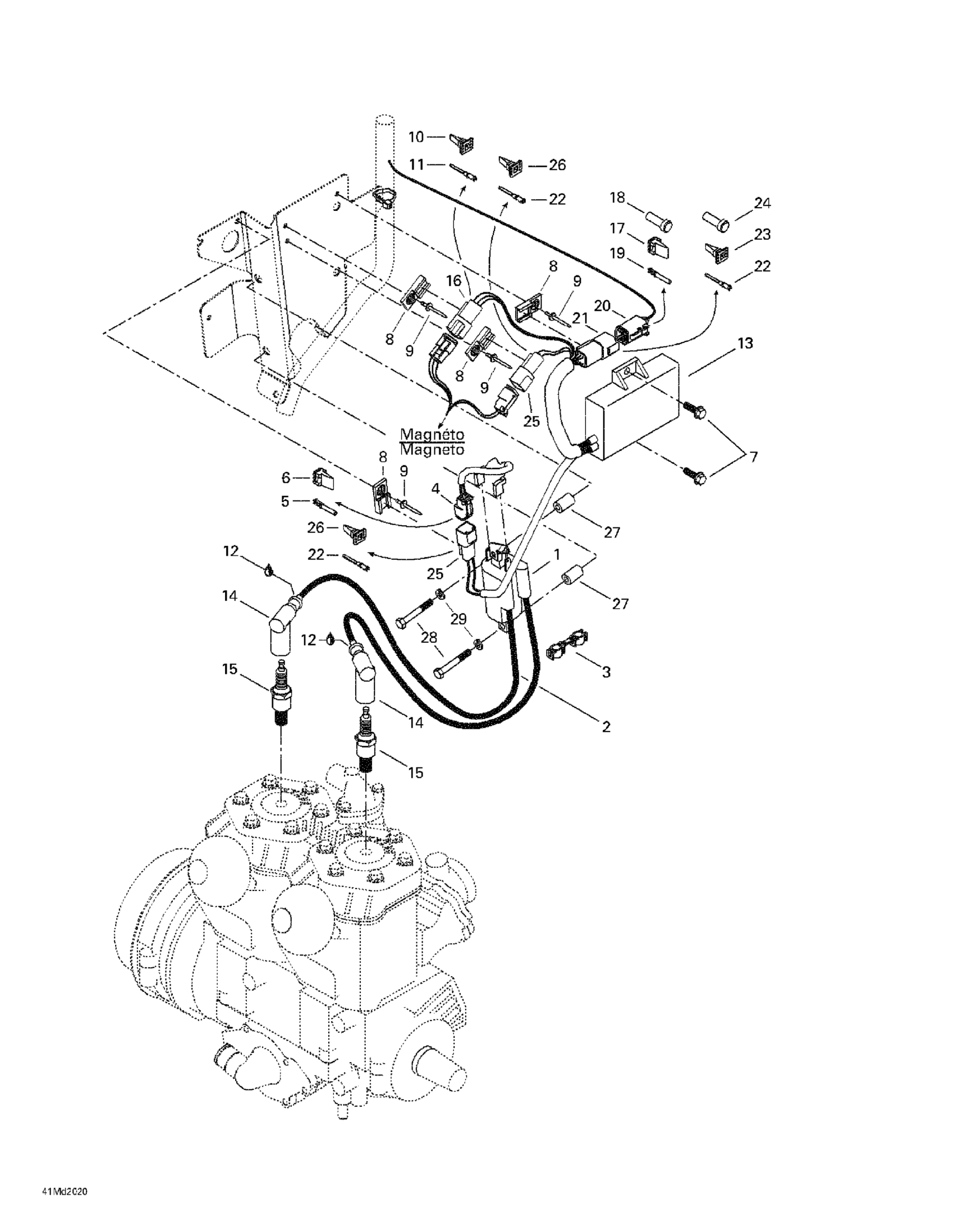

Ski-Doo MX Z X 440 LC, 2000 03- Ignition Diagram

#

Description
Price

1

Ignition Coil | Includes 1 - 6.

512059073

Unavailable

2

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

3

Plastic Clip, Spark Plug Wire

410914600

$5.61

4

Female Connector, 2 Circuits

409207300

$9.85

5

Female Terminal

278000632

$2.09

6

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

7

Hex. Flange Screw M6 X 20

207662044

$2.00

8

Clip

270000141

$11.49

9

Not Available As Spare Part - Friction Washer

Unavailable

10

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

11

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

Calibration Module

515175471

Unavailable

14

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

15

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

16

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

17

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

18

Sealing Cap

293000052

$3.19

19

Female Terminal

278000632

$2.09

20

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

21

Male Terminal Housing, 6 Circuits

710001539

$19.99

22

Male Terminal

278000631

$4.39

23

Female Lock, 6 Circuits

278000735

$3.19

24

PLUG - Call your local BRP dealership

515175303

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Male Lock, 2 Circuits

409207500

$3.19

27

Spacer

517203200

$16.18

28

Hex. Screw M6 X 45

207064544

$2.11

29

Lock Washer M6, Black

234161471

$0.53
