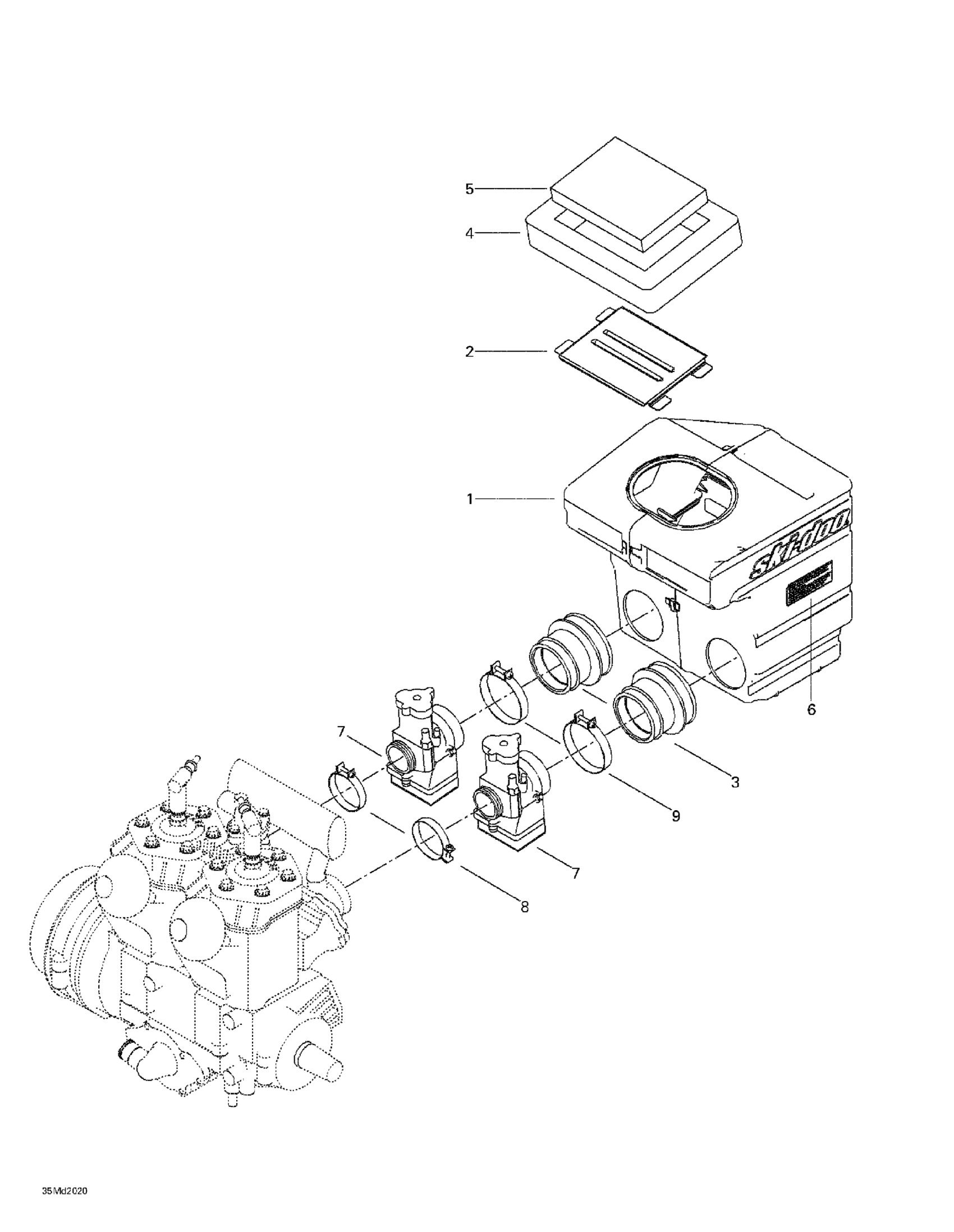

Ski-Doo MX Z X 440 LC, 2000 Air Intake System Diagram

#

Description

Price

1

Air Intake Ass'y | Includes 1 - 6.

508000077

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor (34 mm)

508000006

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

Carburetor TMX 34-7

403138579

Unavailable

8

GEMI CLAMP - Call your local BRP dealership

512059005

Unavailable

9

GEMI CLAMP - Call your local BRP dealership | 800RE

508000007

Unavailable
