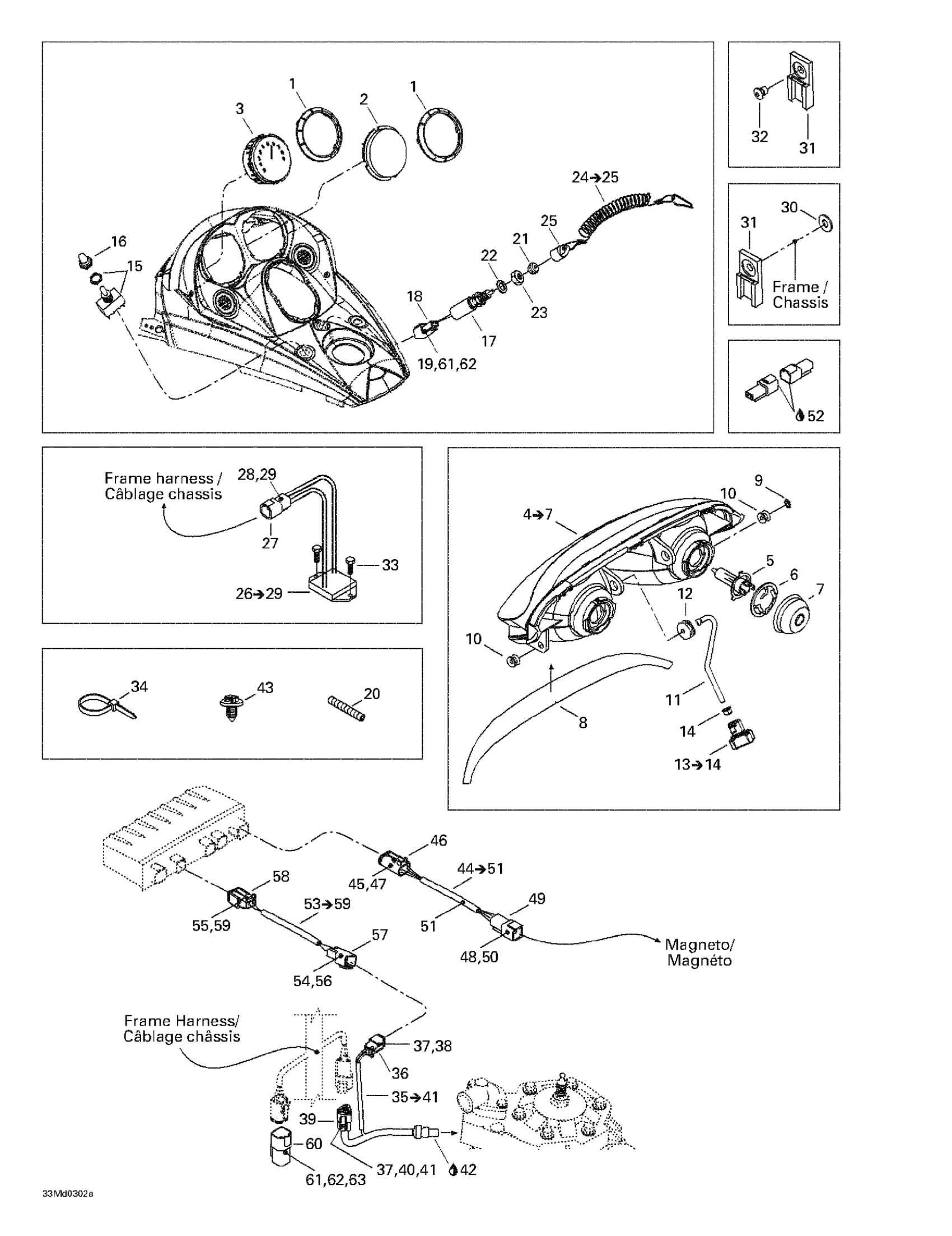

Ski-Doo MX Z X 440, 2003 Electrical System Diagram

#

Description
Price

1

Gauge Ring This part replaces 515176242.

515179005

Unavailable

2

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

3

Tachometer

515175900

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

Unavailable

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15

Switch (Heating Grip) | FREERIDE

410107300

$34.58

16

Switch Cover

515175281

$15.03

17

Brake Switch

515175653

$15.57

18

Male Terminal Housing, 2 Circuits

515175665

$8.02

19

Male Lock, 3 Circuits

409207600

$3.02

20

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

21

Plunger Cap

570151100

$10.14

22

Flat Washer 10 mm

234001410

Unavailable

23

Switch Nut

515145900

$10.83

24

Cap Ass'Y This part replaces 515176462.

515178292

Unavailable

25

Switch Cap

572012200

Unavailable

26

VOLTAGE REGULATOR - Call your local BRP dealership | Includes 27 to 30

515175655

Unavailable

27

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

28

Male Terminal

515175568

$7.48

29

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

30

Flat Washer

517225900

$0.17

31

Clip

270000141

$8.33

32

Pop Rivet 3/16"

390402200

$0.26

33

Hex. Flange Screw M6 X 16

210261650

$1.22

34

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie-Rap 173 mm

293750009

Unavailable

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

35

Temperature Sensor | Includes 48 - 54.

515175930

Unavailable

36

Female Terminal Housing, 2 Circuits

515175670

Unavailable

37

Female Terminal

278000632

Unavailable

38

Female Lock, 2 Circuits

515175675

Unavailable

39

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

40

Female Lock, 3 Circuits

515175676

Unavailable

41

Sealing Cap

293000052

Unavailable

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

43

Mount Dart

293730040

$0.86

44

Supply adaptator | Includes 44 - 51.

515175766

Unavailable

45

Female Terminal

278000632

Unavailable

46

Mode/Set Switch

278001739

Unavailable

47

Male Lock, 4 Circuits | CE

278000738

$2.91

48

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

49

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

50

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

51

Tubing 6 Mm 3000Mm Long

219704425

$13.14

52

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

53

Temperature Harness | Includes 47 to 53

515175963

Unavailable

54

Male Terminal

278000631

$4.12

55

Female Terminal

278000632

Unavailable

56

Male Lock, 2 Circuits

409207500

$3.02

57

Male Terminal Housing, 2 Circuits

515175665

$8.02

58

Female Terminal Housing, 2 Circuits

515175670

Unavailable

59

Female Lock, 2 Circuits

515175706

Unavailable

60

Male Terminal Housing, 6 Circuits

515175668

$14.02

61

Male Terminal

278000631

$4.12

62

Male Terminal

515175823

Unavailable

63

Sealing Cap

293000052

Unavailable
