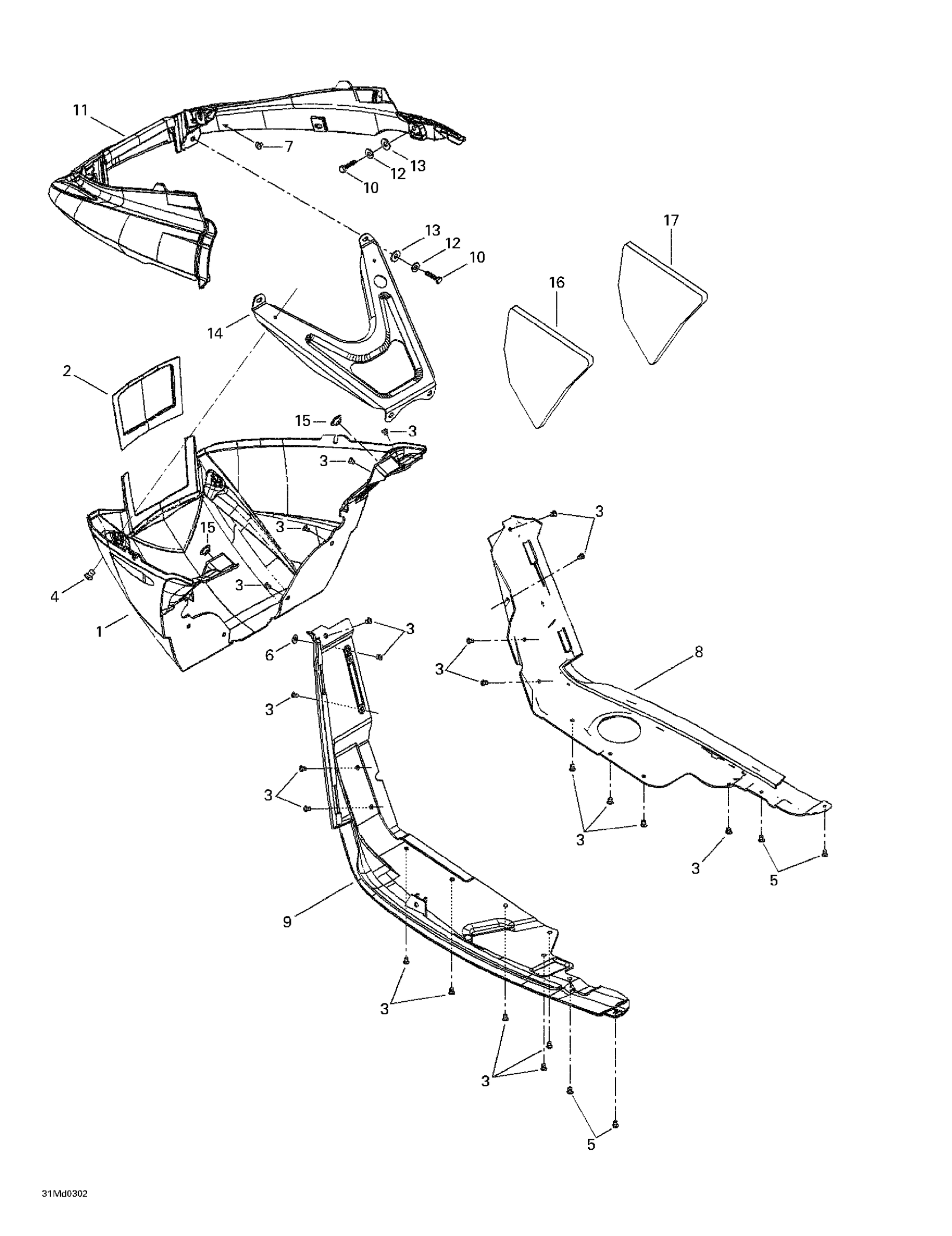

Ski-Doo MX Z X 440, 2003 Bottom Pan Diagram

#

Description
Price

1

FRONT BOTTOM PAN, BLACK - Call your local BRP dealership

502006681

Unavailable

2

BOTTOM PAN PLATE - Call your local BRP dealership

502006706

$10.74

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4

Pop Rivet 3/16”

293150108

$1.23

5

Pop Rivet 3/16"

293150103

Unavailable

6

Washer

517124300

Unavailable

7

Nut Welded, M6

293100003

Unavailable

8

RH bottom pan

502006690

$45.99

9

LH bottom pan

502006691

Unavailable

10

Hex. Screw M6 X 14

207161444

$0.48

11

Bumper, Yellow

502006680

$155.35

12

Lock Washer M6, Black

234161471

$0.52

13

Flat Washer

224061121

$0.44

14

Support

502006772

$36.12

15

Black, Nylon Cap

414916600

$4.32

16

LH Foam

502006683

Unavailable

17

RH Foam

502006684

Unavailable
