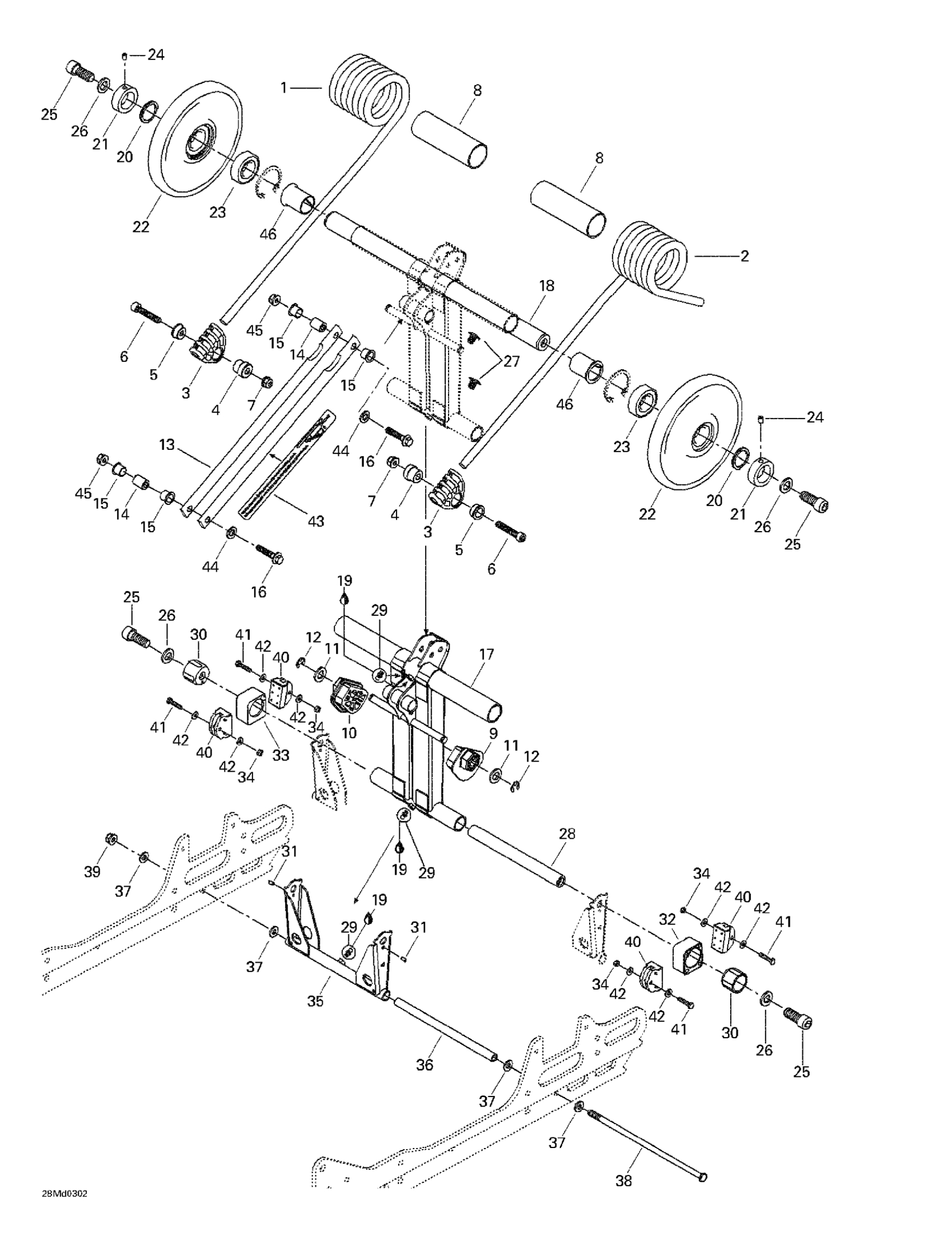

Ski-Doo MX Z X 440, 2003 Rear Arm Diagram

#

Description
Price

1

RH Spring

503189902

Unavailable

2

LH SPRING - Call your local BRP dealership

503189904

Unavailable

3

Spring Support

503189657

$9.90

4

SPRING GUIDE AXLE - Call your local BRP dealership

503189232

Unavailable

5

Retainer Cushion

503189231

Unavailable

6

Socket Head Screw M8 X 45

205084544

$0.85

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

PLASTIC BUSHING - Call your local BRP dealership

503189105

Unavailable

9

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

10

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

11

Flat Washer 12 mm

234021410

$0.66

12

E-Circlip

293370013

$0.60

13

Tie Rod

503190174

Unavailable

14

BAR AXLE - Call your local BRP dealership

503190190

Unavailable

15

ROD CUSHION - Call your local BRP dealership

503189861

Unavailable

16

Hex. Screw M10 X 95

207009544

Unavailable

17

Rear Arm

503190191

Unavailable

18

REAR ARM AXLE - Call your local BRP dealership

503190243

Unavailable

19

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

20

Axle Spring

503189146

$7.31

21

RETAINER RING - Call your local BRP dealership

503189965

Unavailable

22

Wheel 165 | Includes 3070 to 3070a

503190803

$48.48

23

Ball Bearing

293350115

$10.82

24

Socket Set Screw M6 X 8

206260844

$1.43

25

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

26

Washer

503189276

$3.10

27

Black, Dart

414644300

$0.90

28

Lower Shaft

503189739

Unavailable

29

Grease Fitting

408200700

$3.21

30

Block Guide

503189488

$36.54

31

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

32

LH Block

503189152

Unavailable

33

RH Block

503189170

Unavailable

34

Elastic Stop Nut M5

232551414

$0.82

35

PIVOT ARM - Call your local BRP dealership

503189819

Unavailable

36

Pivot Arm Axle

503189156

$20.12

37

Washer

503189157

$3.10

38

Bolt M8 X 248mm

503192440

$29.07

39

Hex. Flange Elastic Nut M8

233281414

$1.31

40

Rubber Stopper

503191291

$17.88

41

Hex. Screw M5 X 30

207053044

$1.12

42

Washer

250200016

$0.70

43

Shock Position Decal

516005609

$16.39

44

Washer

503183800

$3.10

45

Hex. Flange Elastic Nut M10

233201414

$1.45

46

CUSHION - Call your local BRP dealership

503189288

Unavailable
