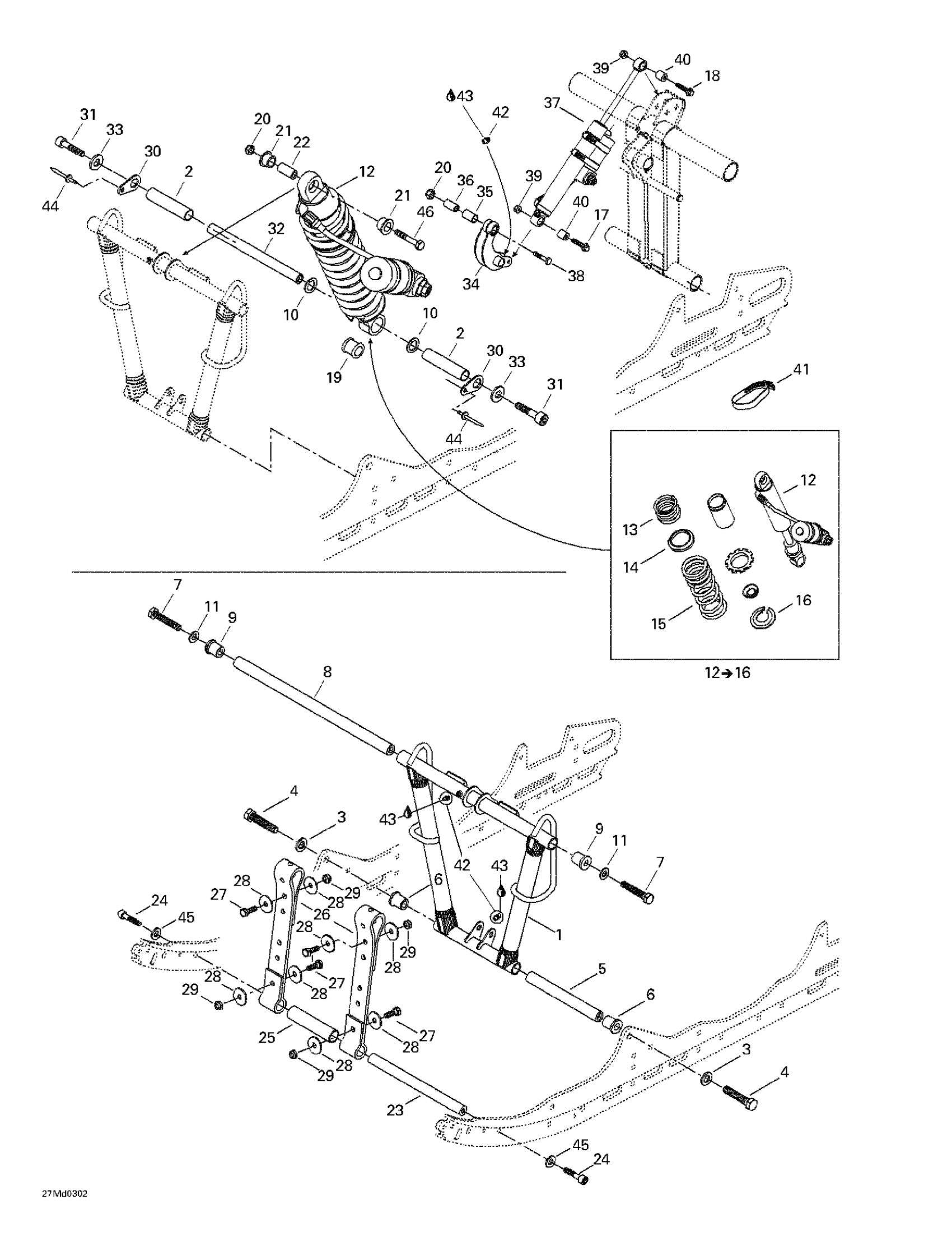

Ski-Doo MX Z X 440, 2003 Front Arm Diagram

#

Description
Price

1

Front Arm

503190285

Unavailable

2

SPACER - Call your local BRP dealership

503189274

Unavailable

3

Washer

503189276

Unavailable

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

5

SHAFT - Call your local BRP dealership

503189313

Unavailable

6

CUSHION - Call your local BRP dealership

503189323

Unavailable

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Bushing

503189324

$11.17

10

Washer

503189273

Unavailable

11

Washer

732900049

Unavailable

12

Center Shock

503189972

Unavailable

13

Spring

503190296

Unavailable

14

Spring Spacer

503190297

Unavailable

15

Spring

503190299

Unavailable

16

Spring Stopper

503190271

Unavailable

17

Hex. Flange Screw M8 X 45

207684544

Unavailable

18

Hex. Flange Screw M8 X 40

207684044

Unavailable

19

Bushing

503189271

Unavailable

20

Elastic Locking Nut M10 X 1.5

233601416

$1.68

21

Urethane Bushing

503189117

Unavailable

22

Bushing | Includes 240d to 240d1

503189282

Unavailable

23

AXLE - Call your local BRP dealership

503189562

Unavailable

24

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

25

Spacer

503189265

$4.66

26

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

27

Hex. Screw M8 X 25

207182544

Unavailable

28

Flat Washer

224081301

$0.86

29

Hex. Elastic Stop Nut M8

232581414

Unavailable

30

Plate

503189506

Unavailable

31

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

32

Center Shock Shaft

503190237

Unavailable

33

Washer

503189276

Unavailable

34

Rocker

503190187

Unavailable

35

Rocker Axle

503189388

Unavailable

36

CUSHION - Call your local BRP dealership

503189626

Unavailable

37

Rear Shock

503189974

Unavailable

38

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

Bushing

414936000

Unavailable

41

Tridon Clamp

293650023

Unavailable

42

Grease Fitting

408200700

Unavailable

43

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

44

Pop Rivet 3/16"

390402300

Unavailable

45

Washer

503189564

Unavailable

46

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable
