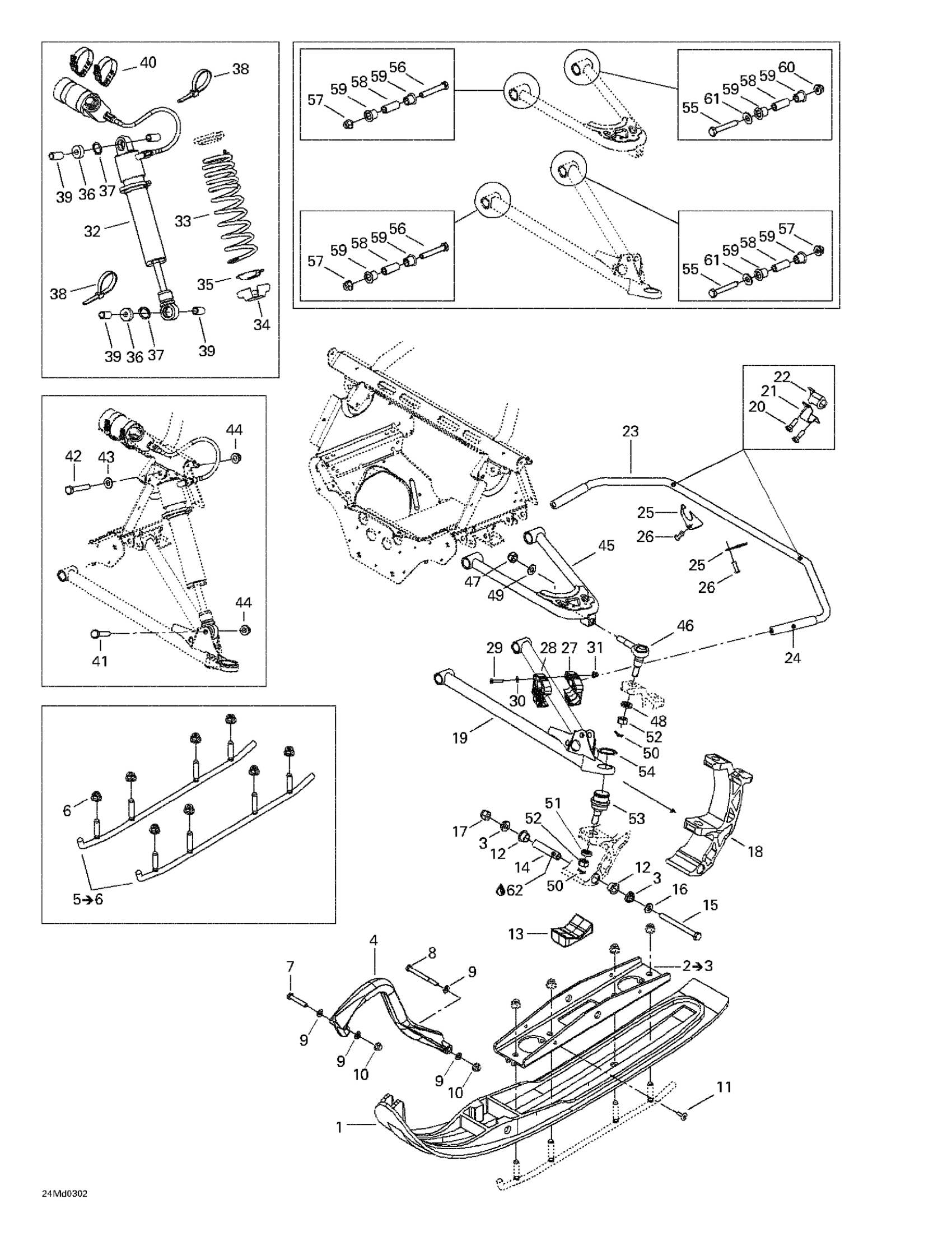

Ski-Doo MX Z X 440, 2003 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

$129.99

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Yellow Handle | Model-MX-Z TNT

505070917

$40.27

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Elastic Locking Nut M10 X 1.5

233601416

$1.63

7

Hex. Screw M8 X 50

207085044

$1.43

8

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

$0.79

10

Hex. Elastic Stop Nut M8

232581414

$0.54

11

Pop Rivet 1/4

293150116

Unavailable

12

Leg Bushing

505072690

$5.75

13

Ski Stopper

505070671

Unavailable

14

Spacer

506133300

$19.37

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

$0.55

17

Flange Nut M10

732610084

$6.30

18

RH ski leg

505071171

Unavailable

LH ski leg

505071173

Unavailable

19

RH Lower Arm Ass'Y | Includes 20, 58 and 59

860509300

Unavailable

RH Lower Arm

505071337

Unavailable

19

LH Lower Arm Ass'Y | Includes 20, 58 and 59

860509200

Unavailable

LH Lower Arm

505071338

Unavailable

20

Hex. Screw M8 X 20

207182044

$0.70

21

CLAMP - Call your local BRP dealership

506095800

Unavailable

22

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

23

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

24

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

25

Plug

505070874

Unavailable

26

Pop Rivet 3/16"

293150103

$0.52

27

RH HALF SLIDER - Call your local BRP dealership

505070667

Unavailable

28

LH Half Slider

505070668

Unavailable

29

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

30

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

31

Hex. Flange Elastic Nut M5

233251414

$1.91

32

RH Front Shock

505070952

Unavailable

LH FRONT SHOCK - Call your local BRP dealership

505070953

Unavailable

33

Spring

505071200

Unavailable

34

Spring Stopper

505072635

$32.81

35

Cap

505071199

Unavailable

36

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

37

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

38

Tie-Rap 180 mm

414115200

$0.10

39

BUSHING - Call your local BRP dealership

506120200

Unavailable

40

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

41

Hex. Screw M10 X 55

207005544

$2.12

42

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

43

Washer

732900049

$0.55

44

Hex. Flange Elastic Nut M10

233201414

$1.45

45

RH upper arm

505071104

Unavailable

LH upper arm

505071107

Unavailable

46

Upper ball joint

505071110

Unavailable

47

Hex. Flange Elastic Nut M12

250000047

$1.79

48

Flat Washer 12 mm

234021410

$0.66

49

Washer

503189276

$3.10

50

Cotter Pin

211400017

$0.28

51

Washer

505071184

Unavailable

52

Hex. Castellated Nut M12

232221414

$3.00

53

Ball Joint

505073636

$48.48

54

Circlip

293370035

$2.48

55

Cone Screw M10 X 75

250000114

Unavailable

56

Hex. Screw M10 X 70

207007044

$2.18

57

Hex. Flange Elastic Nut M10

233201414

$1.45

58

Aluminium Bushing

505070960

$10.84

59

Arm Bushing

505070566

$3.04

60

Elastic Locking Nut M10 X 1.5

233601416

$1.63

61

Washer

503189564

$0.70

62

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
