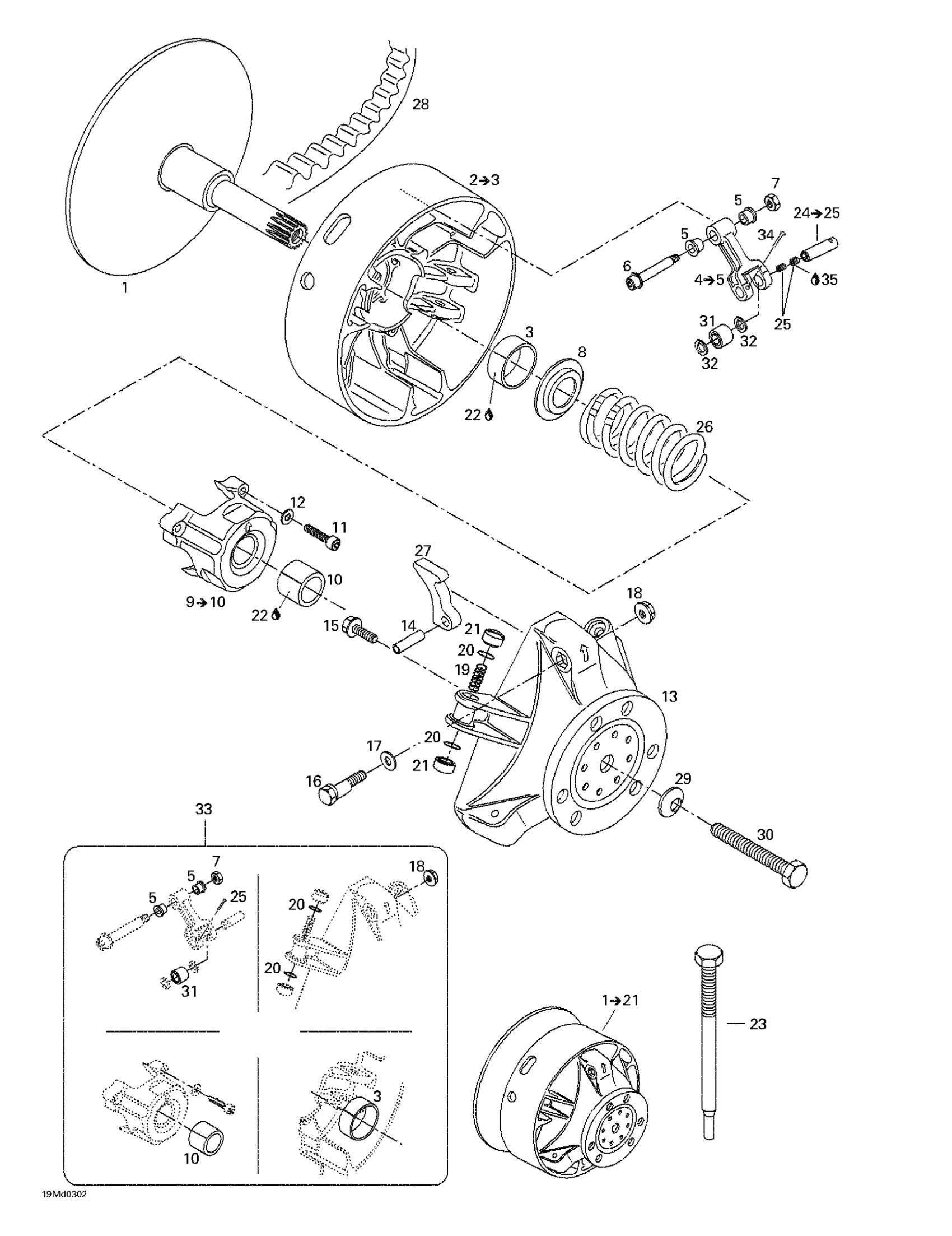

Ski-Doo MX Z X 440, 2003 Drive Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Fixed Flange

417222418

Unavailable

2

Sliding Flange Ass'y | Includes 2 - 3.

417222393

Unavailable

3

Bushing

417004201

$23.82

4

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

5

Bushing

417004305

$4.62

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

Elastic Stop Nut M6

232561414

$1.55

8

Spring Seat

417222044

Unavailable

9

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

10

Bushing

417004501

Unavailable

11

Socket Head Screw M6 X 40

205000038

Unavailable

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

Governor Cup

417222235

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$3.86

18

Hex. Flange Nut M6

233061414

$1.34

19

Spring

417005700

$4.65

20

O-Ring

732401030

$0.95

21

Slider Shoe This part replaces 420460045.

417223021

$6.09

22

Loctite 609, 10 ml

413703100

$24.58

23

Puller This part replaces 529022400.

529000064

$73.99

24

Threaded Pin

417222477

$24.58

25

Socket Set Screw M6 X 6

206260699

$3.63

26

Spring 240-340

415019800

Unavailable

27

Ramp 296

417005296

Unavailable

28

Drive Belt

414860700

$154.58

29

Spring Washer 14 mm

250200006

$5.80

30

Drive Pulley Bolt

417120000

$63.82

31

Roller

417222947

$19.97

32

Stopper Washer

417004302

$15.99

33

Clutch Repair Kit

417006100

$175.35

34

Cotter Pin

250400060

$1.60

35

Loctite 243, 10 ml

293800060

$20.77
