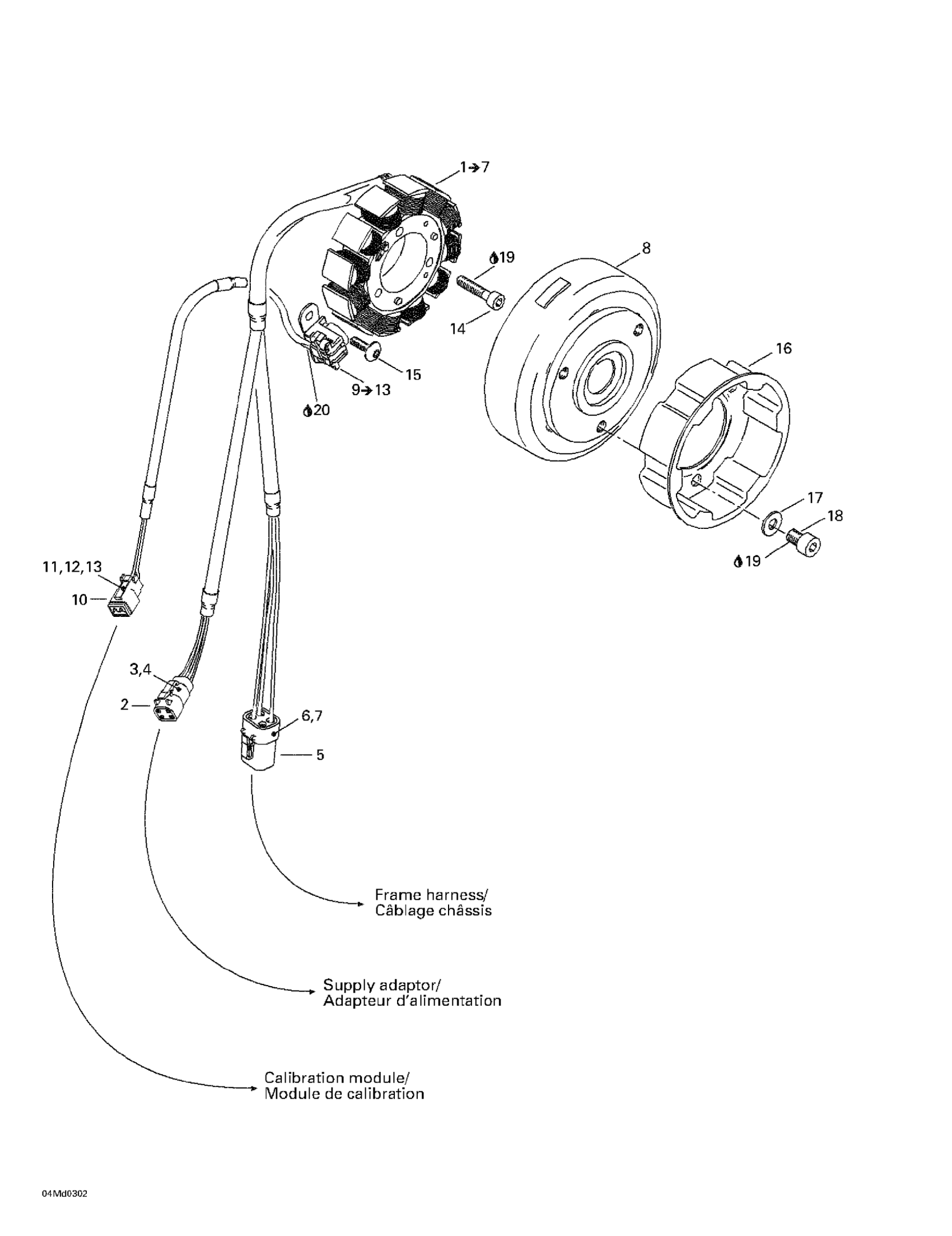

Ski-Doo MX Z X 440, 2003 Magneto (12V, 290W) Diagram

#

Description
Price

1

Startor plate ass'y | Includes 1 - 7.

410922952

Unavailable

2

Female Terminal Housing (4 circuits)

515175245

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

409015100

$3.97

4

Female Lock (4 circuits)

515175246

Unavailable

5

Female Terminal Housing, 4 Circuits

278001473

Unavailable

6

Female Terminal

515175567

$6.03

7

Female Lock, 4 Circuits

278001474

Unavailable

8

Flywheel

410922954

Unavailable

9

Pick-Up

410922951

Unavailable

10

Female Connector, 2 Circuits

409207300

$9.60

11

Female Terminal

278000632

Unavailable

12

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

13

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

14

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

15

Torx Screw M6 X 16

420640324

$2.06

16

Starting Pulley

420852590

$28.43

17

Flat Washer

420827405

$1.66

18

Socket Head Screw M8 X 12

420841520

$1.68

19

Loctite 243, 10 ml

293800060

$20.77

20

Not Available As Spare Part - Friction Washer

Unavailable
