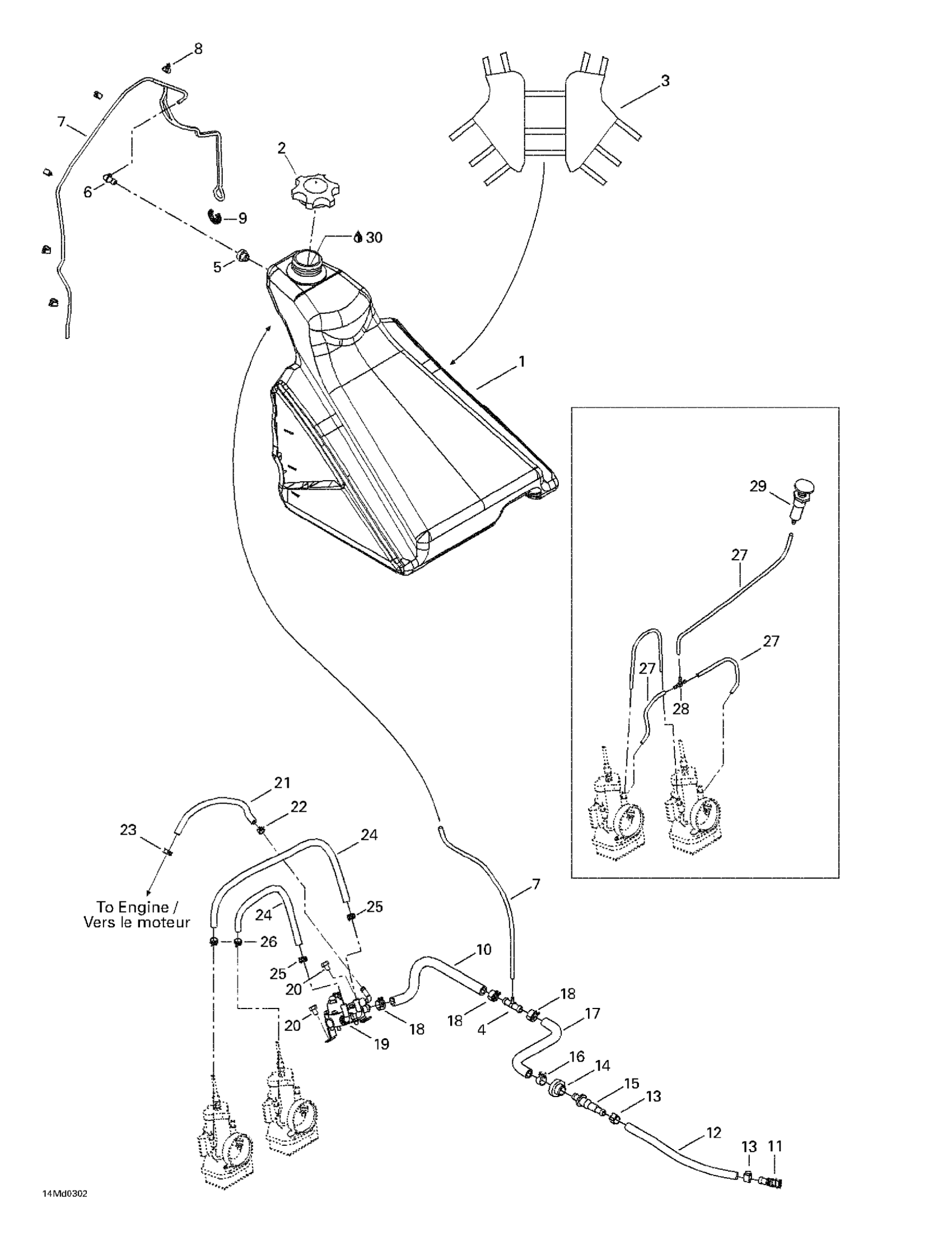

Ski-Doo MX Z X 440, 2003 Fuel System Diagram

#

Description
Price

1

Fuel tank

513033065

Unavailable

2

Cap

513033023

Unavailable

3

TANK COVER, BLACK - Call your local BRP dealership

513033075

Unavailable

4

T-Fitting

415119300

$3.01

5

Grommet

513032908

$8.48

6

Male Connector

414814100

$2.12

7

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

8

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

9

SPRING - Call your local BRP dealership

414818200

Unavailable

10

FORMED HOSE - Call your local BRP dealership

513033031

Unavailable

11

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

12

POLYURETHANE HOSE 7.6MM - Call your local BRP dealership

415097800

Unavailable

13

Norma Spring Clamp

513033010

$8.42

14

Male Connector

414872700

Unavailable

15

Grommet | Europe

707800347

$8.70

16

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

17

Formed Hose

513033072

Unavailable

18

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

19

FUEL PUMP - Call your local BRP dealership

403901810

Unavailable

20

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

21

HOSE - Call your local BRP dealership

513033035

Unavailable

22

Spring Clamp

414415200

$0.81

23

Universal Spring Clamp

513033029

$4.96

24

Polyurethane Hose 10000Mm Long

219704410

$52.96

25

Spring Clamp

414554800

$0.81

26

Spring Clamp

414420700

$0.66

27

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

28

T-Fitting

414222400

$1.52

29

Primer

415060500

$32.06

30

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable
