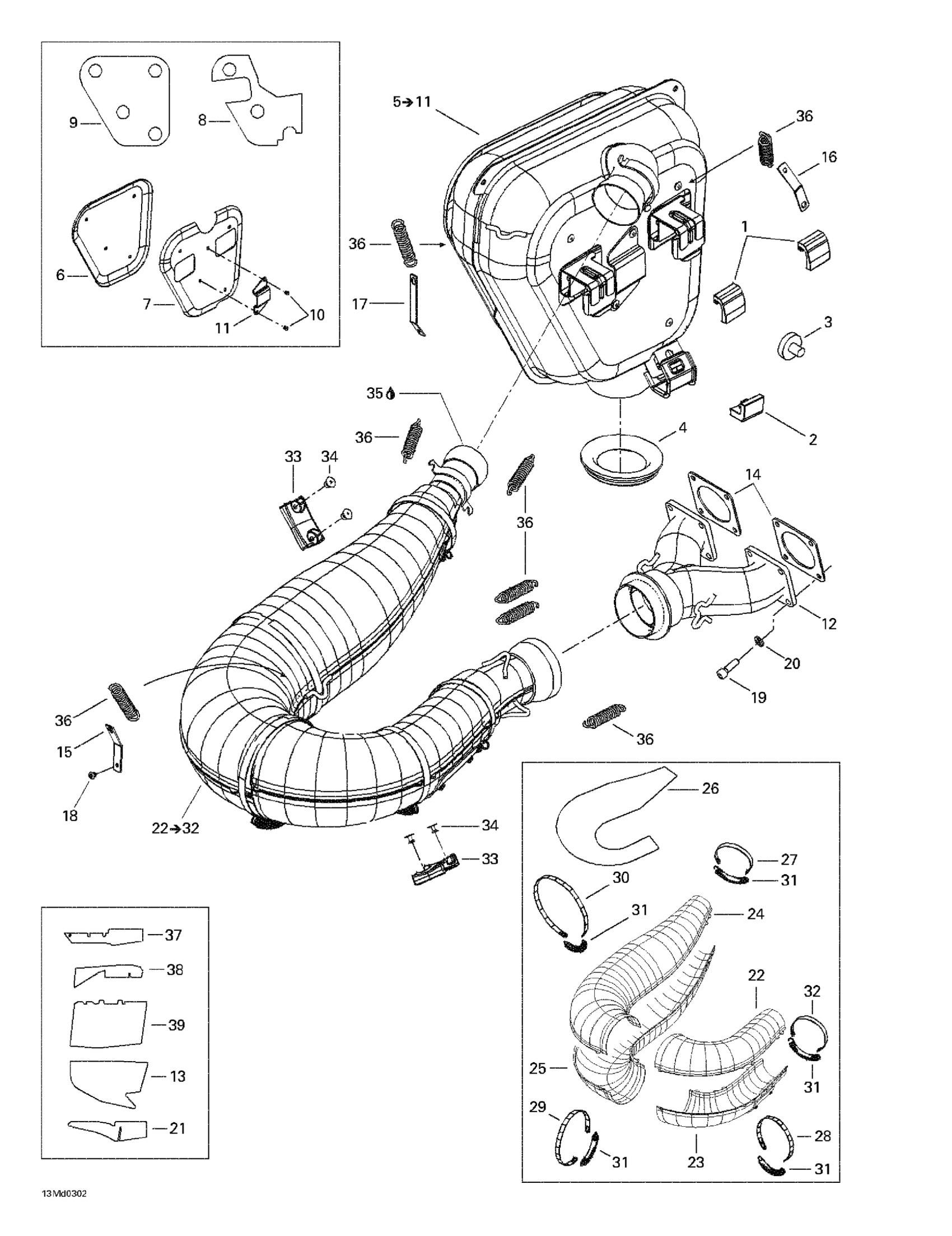

Ski-Doo MX Z X 440, 2003 Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

$13.95

2

Lower Stopper

514053373

Unavailable

3

Rubber Bumper

514053654

$49.20

4

Exhaust Grommet

514053394

Unavailable

5

Muffler ass'y | Includes 5 - 11.

514053122

Unavailable

6

RH HEAT SHIELD - Call your local BRP dealership

514053139

$23.05

7

LH heat shield

514053140

Unavailable

8

RH INSULATING WOOL - Call your local BRP dealership

514053141

$9.97

9

LH insulating wool

514053142

$9.97

10

Pop Rivet 3/16”

390910000

$0.48

11

Reinforcement

514053474

Unavailable

12

Exhaust Manifold

420973555

Unavailable

13

REFLECTIVE SHEET - Call your local BRP dealership

514053562

$9.20

14

Gasket

420850552

$7.92

15

SPRING BRACKET - Call your local BRP dealership

514049700

$4.58

16

Spring Bracket

514053436

$8.35

17

Spring Bracket

514053393

$11.58

18

Pop Rivet 3/16"

390402200

$0.26

19

Socket Head Screw M6 X 20

205062044

$1.07

20

Lock Washer M6, Black

234161471

$0.52

21

REFLECTIVE SHEET - Call your local BRP dealership

514053673

$7.66

22

Tuned pipe ass'y | Includes 22 - 32.

514053143

Unavailable

22

Upper Front Half-Enveloppe

514053151

Unavailable

23

Lower Inferior Half-Enveloppe Ass'y

514053152

Unavailable

24

Upper Rear Half-Enveloppe

514053475

Unavailable

25

Lower Rear Half-Enveloppe Ass'y

514053476

Unavailable

26

Insulating Wool

514053558

Unavailable

27

RETAINING STRAP - Call your local BRP dealership

514053437

$7.66

28

Retaining Strap

514053499

$8.35

29

RETAINING STRAP - Call your local BRP dealership

514053534

$9.20

30

RETAINING STRAP - Call your local BRP dealership

514053605

$7.74

31

Spring

514053643

$6.20

32

RETAINING STRAP - Call your local BRP dealership

514053494

$4.58

33

BUMPER - Call your local BRP dealership

514053352

$14.58

34

Pop Rivet 3/16"

293150103

Unavailable

35

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

36

Spring

415107100

$6.20

37

REFLECTION SHEET - Call your local BRP dealership

514053702

$9.97

38

Reflective Sheet

514053622

Unavailable

39

Reflective Sheet

514053561

Unavailable
