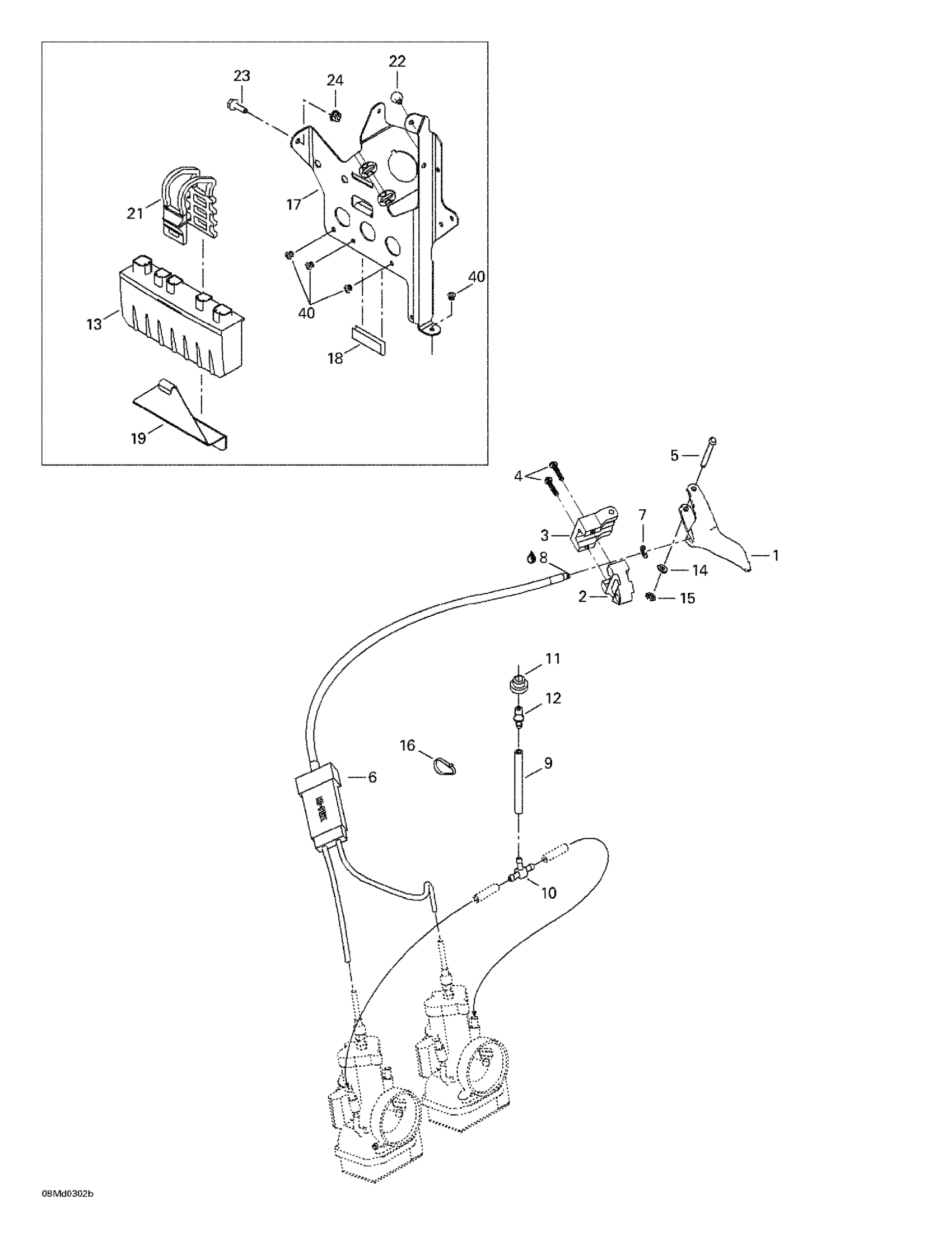

Ski-Doo MX Z X 440, 2003 Engine 2 Diagram

#

Description
Price

1

Handle Ass'y

512060214

Unavailable

2

Lower Housing

512059537

$73.05

3

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

4

Socket Screw M5 X 25

205052544

$1.34

5

Lever Pin

414438700

$11.14

6

THROTTLE CABLE - Call your local BRP dealership

512059742

Unavailable

7

Circlip

414274500

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

9

Polyurethane Hose 10000Mm Long

219704410

Unavailable

10

T-Fitting

572045500

Unavailable

11

Grommet

513032908

$8.74

12

Straight Fitting

293710035

$8.63

13

Calibrated module (no DPM)

512059302

Unavailable

14

Flat Washer M5, Stainless

234051600

$0.64

15

Circlip | Model-RS

414439000

Unavailable

16

Tie Wrap 368 mm

293750008

$0.85

17

Mpem Support

512059502

Unavailable

18

Was 271000110 Protection Trim

219704353

Unavailable

19

Plate

518322928

Unavailable

20

Pop Rivet 3/16"

390402400

Unavailable

21

LATCH - Call your local BRP dealership

570069700

Unavailable

22

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

23

Hex. Flange Screw M6 X 25

207662544

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
