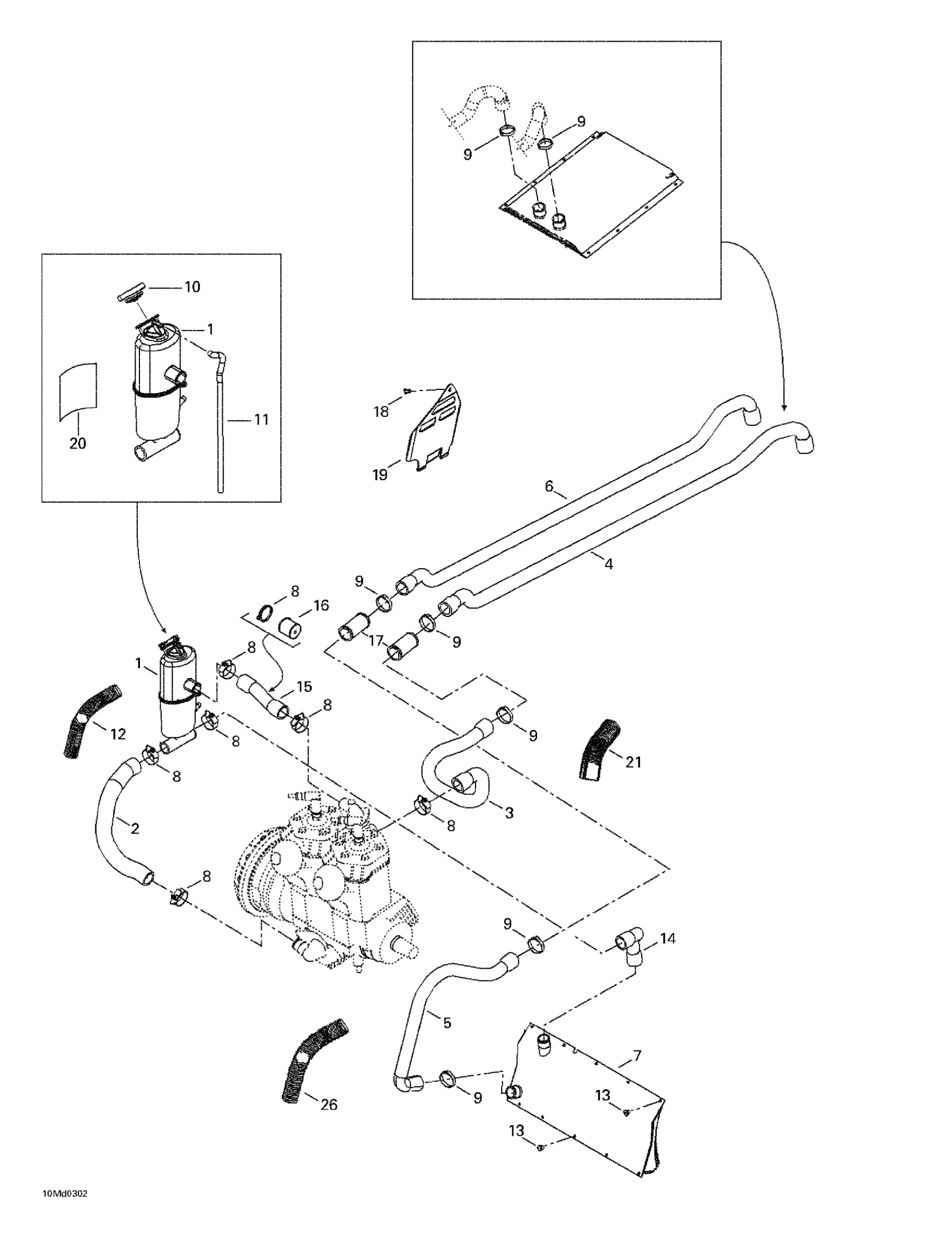

Ski-Doo MX Z X 440, 2003 Cooling System Diagram
#
Description
Price
1
Tank-Coolant
509000182
Unavailable
2
ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.
509000135
Unavailable
3
FRONT ENGINE HOSE OUTLET - Call your local BRP dealership
509000220
Unavailable
4
Engine Outlet Hose
509000221
Unavailable
5
FRONT RADIATOR HOSE INLET - Call your local BRP dealership
509000222
Unavailable
6
REAR RADIATOR HOSE INLET - Call your local BRP dealership
509000223
Unavailable
7
Front Radiator
518323387
Unavailable
8
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
9
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
10
Pressure Cap
509000187
Unavailable
11
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
12
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
14
RADIATOR OUTLET HOSE - Call your local BRP dealership
509000184
Unavailable
15
Hose
509000196
Unavailable
16
CHOKE - Call your local BRP dealership
509000197
Unavailable
17
Fitting
509000224
Unavailable
18
Avex Rivet
390909200
Unavailable
19
Deflector
509000163
Unavailable
20
REFECTIVE SHEET - Call your local BRP dealership
509000190
Unavailable
21
Tubing 25 MM 1000MM Long
219704402
Unavailable
