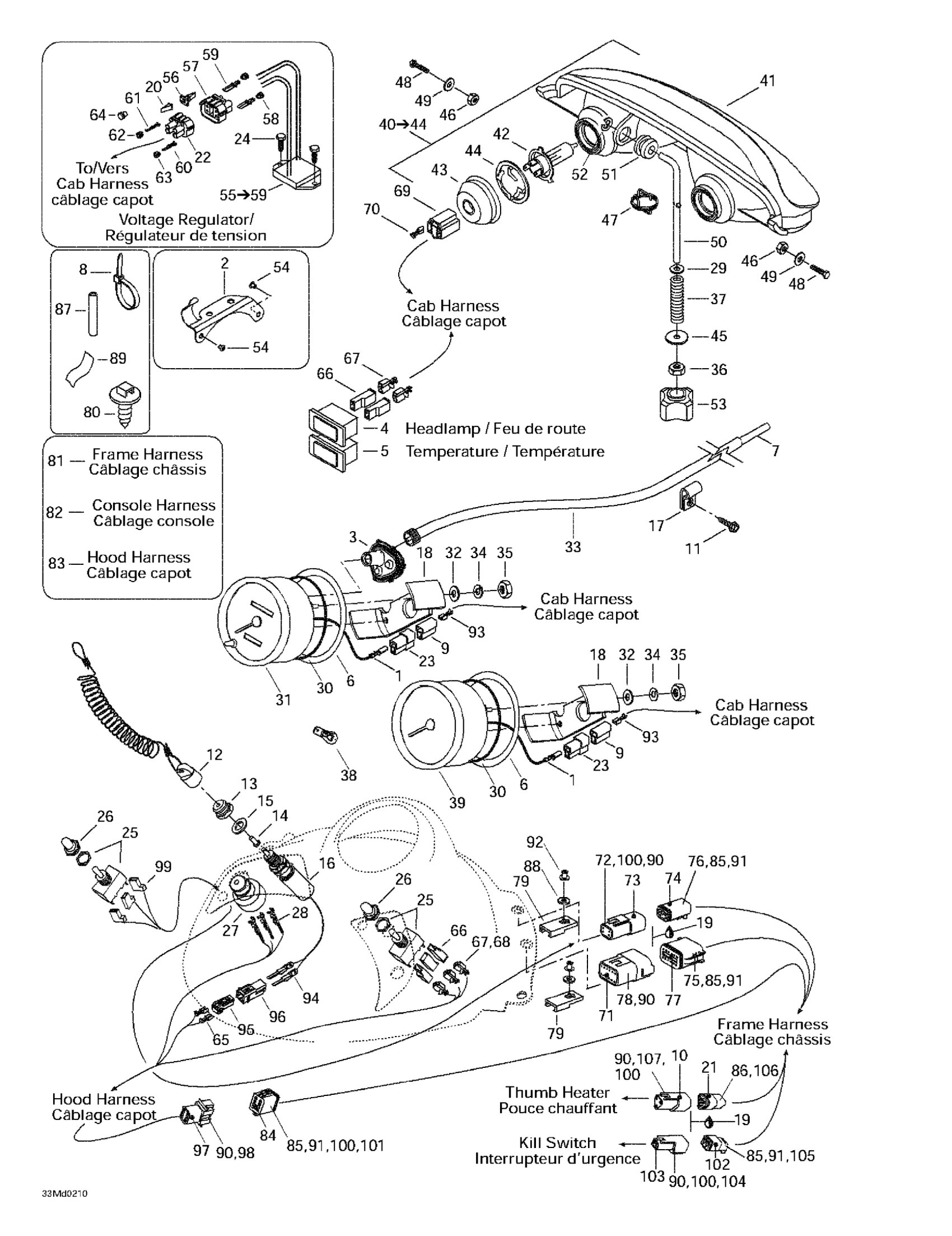

Ski-Doo MX Z X 440, 2002 10- Electrical System Diagram

#

Description
Price

1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

2

Cable Support

515175254

Unavailable

3

Drive Angle

515175400

Unavailable

4

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

5

PILOT LAMP - Call your local BRP dealership

515175727

Unavailable

6

Washer

517258500

Unavailable

7

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

8

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

Tie Wrap 94 mm | 4X4

293750001

$1.03

9

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

10

Male Housing

515175666

$15.49

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Cap Ass'Y This part replaces 515176462.

515178292

$38.99

13

Switch Nut

415073500

Unavailable

14

Plunger Cap

570151100

$9.85

15

Flat Washer 10 mm

234001410

$1.26

16

Brake Switch

515175653

$19.49

17

Open Clamp

414176000

$1.99

18

Case Holder

414806500

Unavailable

19

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

20

Male Lock

409013100

Unavailable

21

Female Housing

409204300

Unavailable

22

Male Terminal Housing (4 circuits)

409207700

Unavailable

23

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

24

Hex. Flange Screw M6 X 16

210261650

$1.67

25

Switch (Heating Grip) | FREERIDE

410107300

$35.99

26

Switch Cover

515175281

$15.99

27

D.E.S.S. Switch | Includes 27 - 28.

515175762

Unavailable

28

Male Terminal

515175232

$1.58

29

Flat Washer 6 mm

234061410

$1.36

30

O-Ring

414807100

Unavailable

31

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

32

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

33

Speedometer Cable

415101500

Unavailable

34

Lock Washer

414806700

Unavailable

35

Nut

414806900

Unavailable

36

Elastic Stop Nut M6

232561414

$0.55

37

SPRING - Call your local BRP dealership

415100600

Unavailable

38

Instrumentation Bulb

410501000

Unavailable

39

Tachometer

515175341

Unavailable

40

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

43

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

44

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

45

Washer

224060251

$0.58

46

NUT M5 - Call your local BRP dealership

250100018

$6.99

47

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

48

Hex. Screw M5 X 35

207053544

$1.15

49

Flat Washer M5

234051410

$0.53

50

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

51

Grommet - Call your local BRP dealership

415100800

Unavailable

52

Push Nut

732610072

$2.19

53

Handle - Call your local BRP dealership

515175548

Unavailable

54

Pop Rivet 3/16"

390402200

$0.35

55

Voltage Regulator | Includes 48 - 52.

515175491

Unavailable

56

Female Lock

409013400

Unavailable

57

Female Terminal Housing (4 circuits)

409208000

Unavailable

58

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

59

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

60

Male Terminal

409013000

Unavailable

61

Male Terminal

409010900

Unavailable

62

Seal

409208300

Unavailable

63

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

64

SEAL - Call your local BRP dealership

409013900

Unavailable

65

Female Terminal

515175231

$4.39

66

Female Terminal Housing, 1 Circuit

409010400

$7.62

67

Female Terminal

409010100

$5.61

68

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

69

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

70

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

71

MALE HOUSING - Call your local BRP dealership

515175669

Unavailable

72

Female Wedge, 4 Circuits

278000636

$4.39

73

MALE TERMINAL HOUSING, 4 PIN - Call your local BRP dealership

515175667

$14.49

74

Male Connector, 4 Circuits | CE

278000739

$19.49

75

FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership

515175679

Unavailable

76

Male Lock, 4 Circuits | CE

278000738

$3.09

77

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

Unavailable

78

MALE LOCK, 12 CIRCUITS - Call your local BRP dealership

409015600

Unavailable

79

Clip

270000141

$11.49

80

Mount Dart

293730040

$1.04

81

Frame Harness

515175763

Unavailable

82

Console Harness

515175764

Unavailable

83

Hood Harness

515175463

Unavailable

84

Gauge Nut

278000743

Unavailable

85

Female Terminal

278000632

$2.09

86

Female Terminal

561503100

$2.41

87

Tubing 10 MM 1000MM Long

219704407

$2.79

Was 409901800 Tubing (13 mm)

219704400

$14.49

Tubing 16 Mm 1000Mm Long

219704408

$7.49

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

88

Flat Washer

517225900

$0.18

89

Tape

293740005

Unavailable

90

Male Terminal

278000631

$4.39

91

FEMALE TERMINAL - Call your local BRP dealership

278001276

Unavailable

92

Pop Rivet 3/16"

390402200

$0.35

93

Female Terminal

561503100

$2.41

94

Male Terminal

515175232

$1.58

95

Male Terminal Housing, 2 Circuits

515175654

$9.12

96

Female Housing, 2 Circuits

515175658

$16.18

97

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

98

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

99

Female Terminal

409010300

$4.39

100

Sealing Cap

293000052

$3.19

101

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

102

Female Connector, 2 Circuits

409207300

$9.85

103

Male Housing, 2 Circuits

409206900

$9.59

104

Male Lock, 2 Circuits

409207500

$3.19

105

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

106

Female Terminal

561503100

$2.41

107

Male Lock, 3 Circuits

409207600

$3.19
