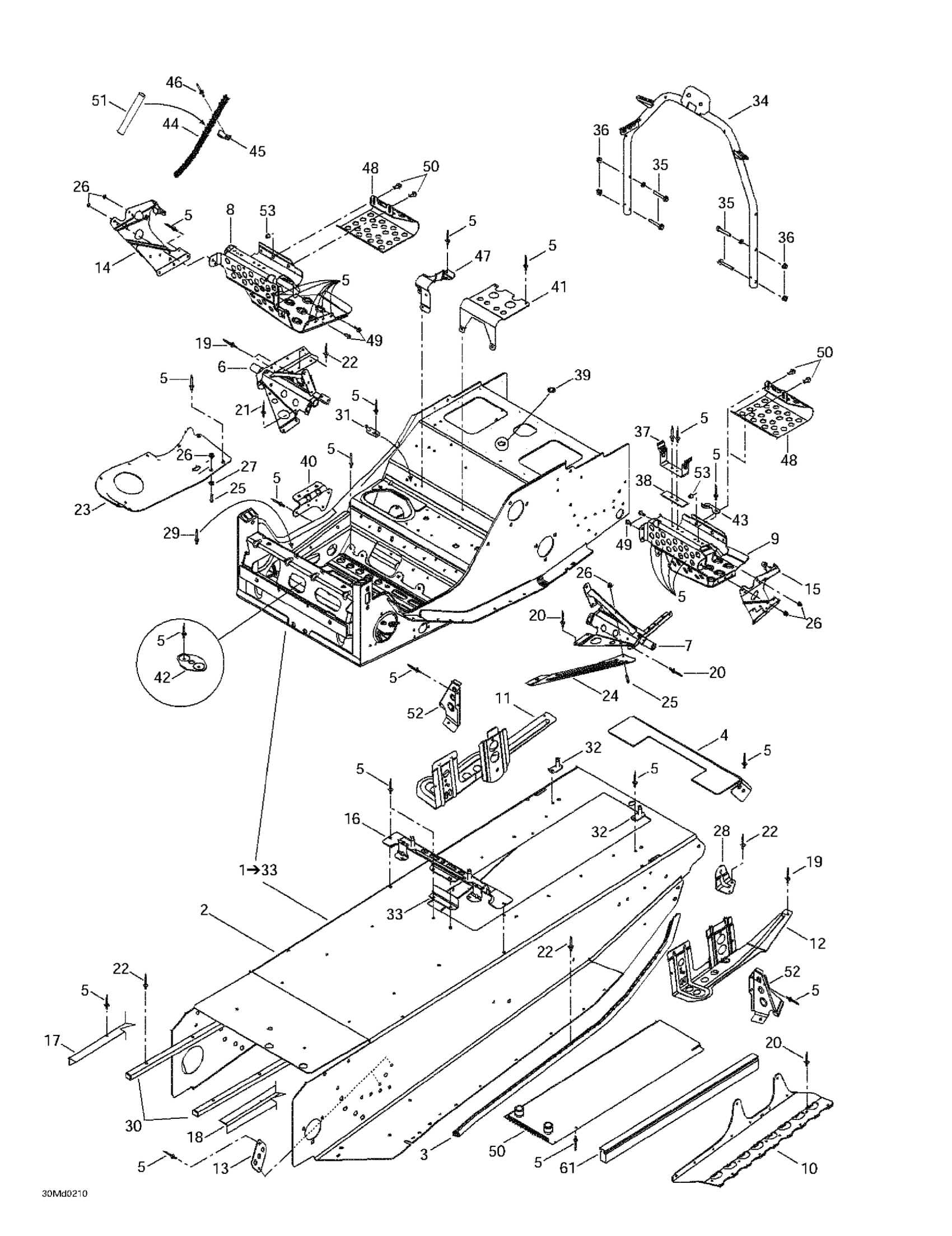

Ski-Doo MX Z X 440, 2002 09- Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 33.

518323012

Unavailable

2

Forming Frame

518322582

Unavailable

3

RH Footrest Reinforcement

518322909

Unavailable

LH Footrest Reinforcement

518322910

Unavailable

4

Rear Cap

518321620

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Foot Support

518322845

Unavailable

7

LH Foot Support

518322848

Unavailable

8

RH Footrest

518322945

Unavailable

9

LH Footrest

518322946

Unavailable

10

RH Tunnel Liner

518322884

Unavailable

LH Tunnel Liner

518322885

Unavailable

11

RH Bracket | MX Z 600. MX Z 700. MX Z 800.

518322867

Unavailable

12

LH Rear Bracket

391322870

Unavailable

13

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

14

RH Footrest Reinforcement

518322059

Unavailable

15

LH Footrest Reinforcement

518322063

Unavailable

16

Fuel Tank Bracket

390322512

Unavailable

17

RH Frame Reinforcement

518322593

Unavailable

18

LH Frame Reinforcement

518322594

Unavailable

19

Avex Rivet

390909200

$0.30

20

Avex Rivet

390909100

$0.30

21

Pop Rivet 3/16"

390402300

$0.75

22

Pop Rivet 3/16"

390402400

$0.35

23

RH Bottom Pan Plate | 600

518319760

Unavailable

24

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

25

Hex. Screw M5 X 20

207152044

$0.90

26

Hex. Flange Elastic Nut M5

233251414

$1.04

27

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

28

RH Reinforcement

518322808

Unavailable

LH Reinforcement

518322810

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Frame Protector

518322560

Unavailable

31

Double Bracket

518322391

Unavailable

32

Guide

518319730

Unavailable

33

Neoprene Seal (1PAC=3M)

219704364

$27.49

34

Handle Support

518322755

Unavailable

35

Hex. Flange Screw M6 X 40

207664044

$2.22

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Belt Guard Bracket

518202100

$17.49

38

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

39

CAP - Call your local BRP dealership

414859400

Unavailable

40

Muffler Support

518322635

Unavailable

41

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

42

Plate Bracket

518201307

Unavailable

43

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

44

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

45

Open Clamp

518321570

$7.69

46

Pop Rivet 3/16"

390406500

$0.88

47

Hose Support

518322699

Unavailable

48

Toe Hold

518322944

Unavailable

49

Forming Screw M5 x 16

250000676

$1.01

50

Hex. Flange Screw M6 X 16

207661644

$0.74

51

Was 409901800 Tubing (13 mm)

219704400

$14.49

52

RH Rear Footrest

518322886

Unavailable

LH Rear Footrest

518322887

Unavailable

53

Insert

293450275

$12.99
