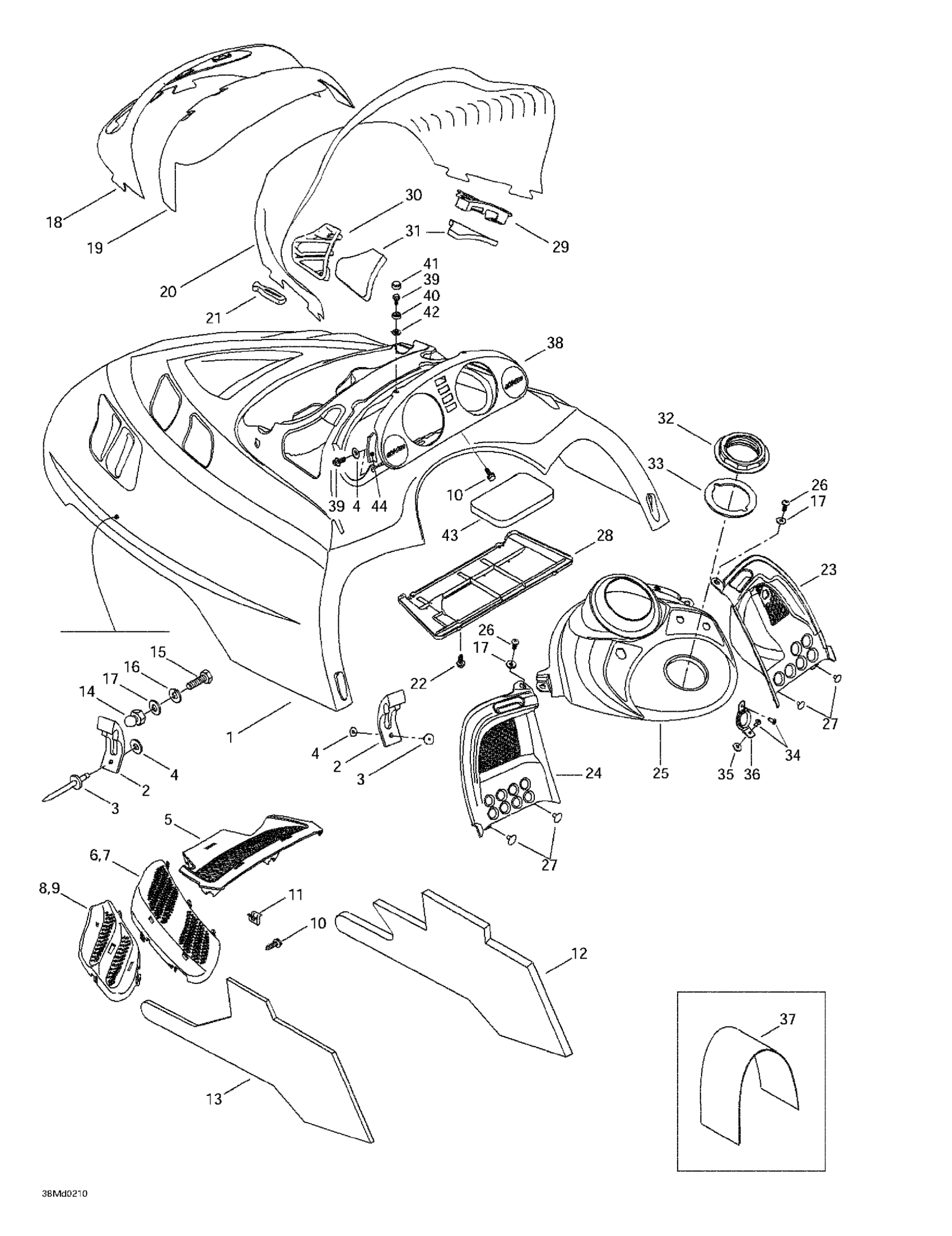

Ski-Doo MX Z X 440, 2002 09- Cab, Console Diagram

#

Description
Price

1

Hood (Yellow)

517302706

Unavailable

2

Hood Latch

570027100

$13.49

3

Pop Rivet 3/16"

390906800

$0.93

4

Washer

517124300

$0.19

5

CENTER GRILL, BLACK - Call your local BRP dealership

517302026

Unavailable

6

RH Intermediate Grill, Black | Grand Touring 500.

517302028

Unavailable

7

LH Intermediate Grill, Black | Grand Touring 500.

517302031

Unavailable

8

RH Side Grille

517302034

Unavailable

9

LH Side Grille

517302036

Unavailable

10

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

11

Edge Clip

517302785

$0.88

12

RH Side Foam

517302669

Unavailable

13

LH Side Foam

517302630

Unavailable

14

Knob

517245800

$11.12

15

Hex. Screw M5 X 14

207151444

$0.87

16

Lock Washer 5 mm | Europe

234151401

$0.55

17

Washer | DS 650 X

391301600

$0.48

18

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

19

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

20

Low Windshield

517302002

Unavailable

21

Windshield Latch

570023800

$4.49

22

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

23

RH CONSOLE - Call your local BRP dealership

517302027

Unavailable

24

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

25

Center Console

517302703

Unavailable

26

Forming Screw M5 x 16

250000676

$1.01

27

Pop Rivet 3/16"

390406500

$0.88

28

Air Intake Plate

517302578

Unavailable

29

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

30

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

31

Air Intake Foam

517302151

Unavailable

32

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

33

Gasket

293250029

$14.82

34

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

35

Rubber Stopper

517302286

Unavailable

36

Rope Guide

517302129

Unavailable

37

Tank Cover

517302253

Unavailable

38

Indicator Support

572098605

Unavailable

39

Screw K40 X 10

241140060

$1.48

40

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

41

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

42

Flat Washer 4 mm, Stainless

234042600

$1.15

43

Secondary Foam

517302425

Unavailable

44

Foam

517302420

Unavailable
